USED 2002 DMG MORI DECKEL MAHO DMU 50 EVOLUTION

Subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement, we offer for your consideration:

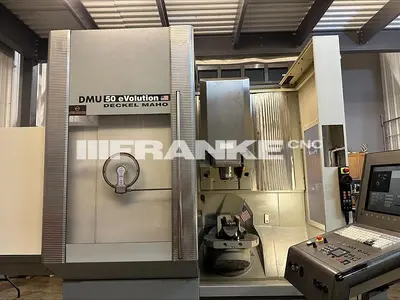

One used 2002 DMG MORI DECKEL MAHO DMU 50 eVolution full 5-Axis simultaneous VMC:

Fly into MKE to inspect under power in our Wisconsin showroom by appointment

History
Machine was manufactured at DECKEL MAHO Seebach GmbH in Seebach, Germany 5/2002
First installed new in the USA 6/2002

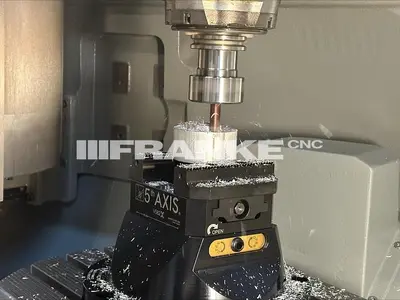

Clamp once, machine 5-sides

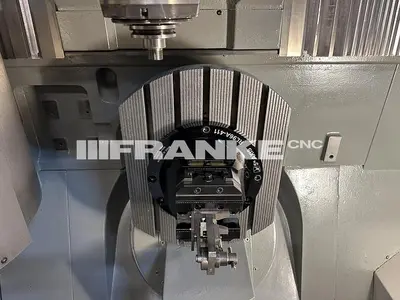

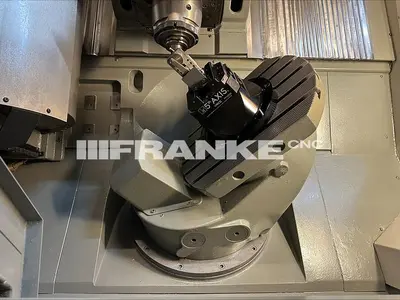

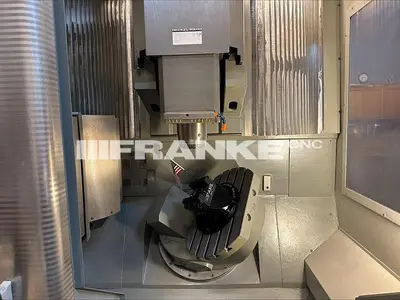

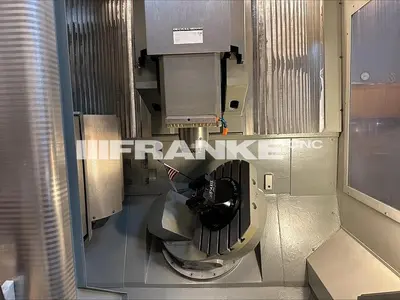

Table on machine swivels 0-180 degrees and rotates 360 degrees which allows for 5-sided 5-axis simultaneous machining with 1 workpiece clamping.

Working area
Longitudinal (X) 19.7" (500 mm)
Transverse (Y) 16.5" (420 mm)
Vertical (Z) 15.0" (380 mm)

Main drive
AC motor spindle drive power 100% DC 33.5 hp (25 kW)
AC motor spindle drive power 40% DC        46.9 hp (35 kW)
Work spindles, tool mounting                         CAT 40
Speed range                                                   18,000 rpm
Number of gear steps                                     None
Maximum spindle torque                               95.9 ft/lbs (130 Nm)
Spindle bearing diameter                              3.15” (80 mm)

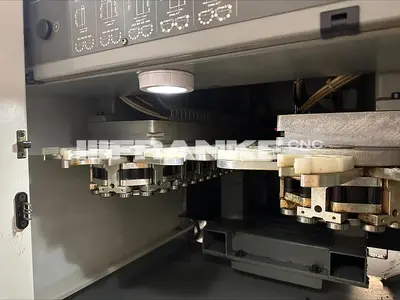

Tool changer
Number of tools                                               60
Maximum tool weight                                    13.22 lbs (6 kg)
Maximum tool diameter wo vacant places  3.15” (80 mm)
Maximum tool diameter with vacant places   4.13” (105 mm)
Maximum tool length                                     11.02” (280 mm)
Chip to chip time                                            Approximately 6 seconds

Feed
Feed range, linear axes                              787.4 ipm (20 m/min)
Rapid traverse, linear axes                          1,968 ipm (50 m/min)

Path measuring system
Direct, Heidenhain glass scales, resolution  1 um (0.00004”) for X/Y/Z

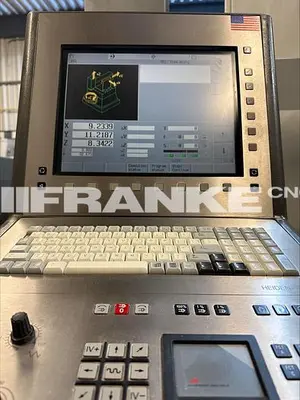

Control

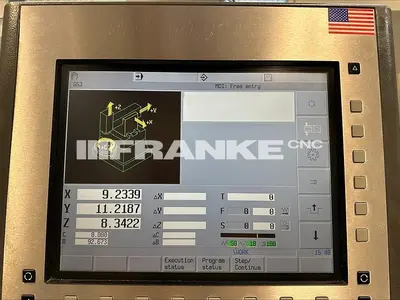

Heidenhain MillPlus                                      With electronic handwheel control

Weight
Weight of machine with NCSRT                  Approximately 11,374 lbs

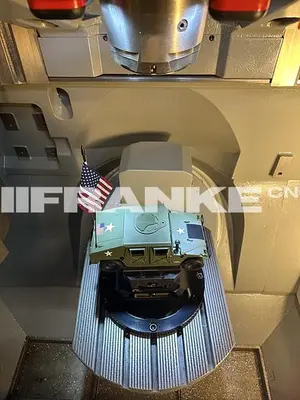

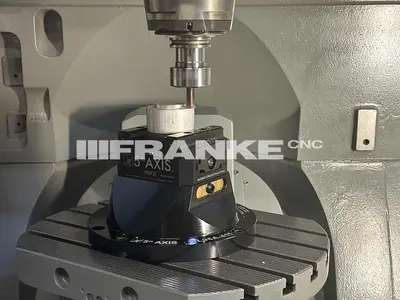

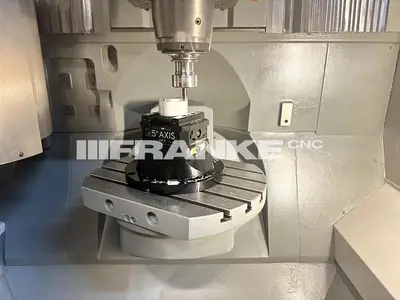

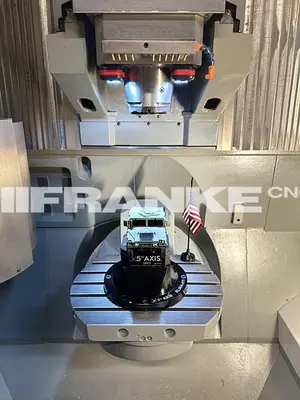

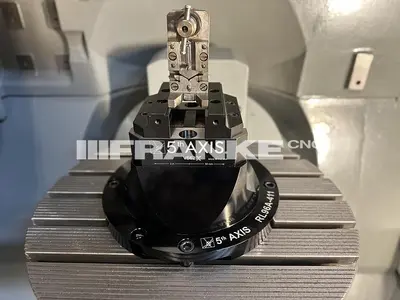

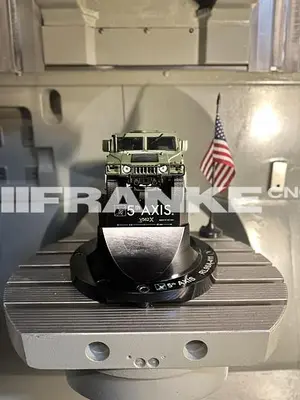

NC-rotary table with NC-swivel axis
Clamping area                                              19.7” diameter x 15” (500 mm x 380 mm)
Center bore                                                    1.2” H6 diameter
No./Spacing of T-slots                                    5/2.5” 14H7
Swivel axis (B axis)                                        0 degrees through 180 degrees
Rapid traverse (Swivel B axis)                       26 rpm
Table swivel time, horizontal to vertical          Approximately 1.5 seconds
Rotary axis (C axis)                                       0-360 degrees (continuous, full 4th axis)
Rapid traverse (Rotary C axis)                      33 rpm
Table loading maximum                                 440 lbs (200 kg)
Table measuring system                                Direct, Heidenhain angle encoders for B & C axes
Table cooling                                                  Drive cooling for B & C axis with heat exchanger

Flood coolant
Amount of coolant                                        52.8 gallons (200 l)
Flow rate                                                        5.28 gallon/minute (20 l/minute)

Price quoted in United States Dollars
Price quoted is FOB Origin

To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
