USED 2018 MIKRON MILL MIKRON HPM 450U

Stock Number: 064469

Subject to availability, and terms and conditions of FRANKE CNC sales agreement, we offer for your consideration:

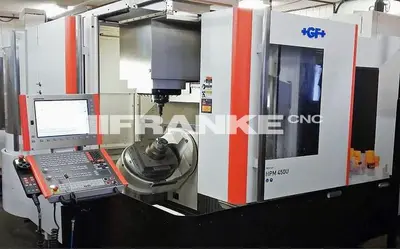

Used 2014/2018 +GF+ MIKRON HPM 450U 5-Axis VMC w/Tool Tower & Pallet Changer:

HISTORY
-Machine was built at +GF+ AgieCharmilles AG in Nidau, Switzerland 10/2014
-Imported into North America 2015
-Demo machine in GF showroom until 2017 when sold
-Installation completed at customer 1/31/2018

Approx 8,921 original Spindle on hours total, over life of the machine

CONTROL

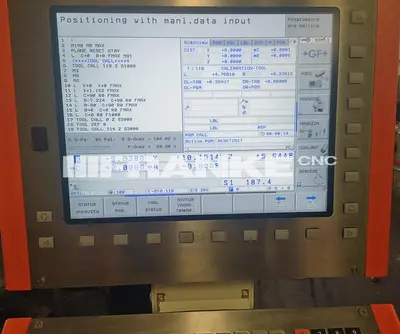

HEIDENHAIN iTNC 530 with Ethernet and electronic handwheel for part setup
Control has software cycle options 450, 451, 452, 460

WORKING RANGE
Longitudinal X-Axis.....................................   23.62" (600 mm)
Transverse Y-Axis...........................................   17.72" (450 mm)
Vertical Z-Axis.........................................   17.72" (450 mm)
Max Workpiece Size: 17.72” (450mm)dia x17.72”(450mm)height x 330lbs (150kg)
B-Axis (Tilt).......................................   -120 / +45 degrees
C-Axis (Rotary)........................................   n x 360 degrees
Number of simultaneous axis...........................   5/5 simultaneous

FEED DRIVE
Drive: Ballscrews in X,Y,Z-axis
Drive: Direct Drive Torque Motors in B and C-axis
Rapid Traverse X/Y/Z...................................   866 IPM (22 m/min)
Table Rapid Speed B-Axis (Tilt)......................................   50 rpm
Table Rapid Speed C-Axis (Rotary).................................   140 rpm !
Maximum Acceleration X/Y/Z...................................   up to 5 m/sec2

DIRECT DRIVE TORQUE MOTOR RTT (ROTARY TILT TABLE) DYNAFIX DYNAFIX
Pallet Clamping Surface, pallet changer accepts 2 pallet sizes:
11.02" x 11.02” (280 x 280 mm)
13.78” x 13.78” (350 x 350 mm) maximum pallet size possible
Maximum workpiece weight (manual loading).............   330 lbs (150 kg)
Pallet type this machine & pallet changer equipped for: System 3R Dynafix Number of pallet stations pallet changer is equipped with……7 x pallet stations
With hydraulic clamping in turning and swivelling axis
All feed motors are liquid-cooled
Direct measuring system HEIDENHAIN rotary encoders 0.00004” (1 um) resolution

AUTOMATION
BLUM laser tool measuring system
M&H Infrared touch probe
system 3R Dynafix automatic pallet changer with 7 x pallet stations

120 POSITION TOOL TOWER
This is an external freestanding 120 position tool tower.  The tools are loaded through a gate to be stored in the multi-story rack system.  An integrated control system manages the magazine pockets.  For a tool change, the tool is picked up by a machine-specific handling unit and transferred to the spindle hand-over position parallel to processing time.  There the tool is picked up by the spindle.

Number of magazine places……………………….120 positions
Spindle taper…………………………………………HSK-A63
Maximum tool diameter……………………………..3.15” (80 mm)
Maximum tool diameter with unoccupied adjacent positions..4.92” (125 mm)
Maximum tool length…………………………………10.6” (270 mm)
Maximum permitted tool weight……………………13.2 lb (6 kg)
Number of pockets for tool length up to 10.6” (270 mm)…70
Number of pockets for tool length up to 6.3” (160 mm)…..50

WEIGHT
Including pallet changer...........   Approximately 16,976 lbs (7,700 kg)
Machine base.......................   Polymer concrete (man made granite)

STEP-TEC SWISS MADE SPINDLE SPINDLE
Spindle taper..................................................   HSK-A63
Spindle RPM.................................................   100-20,000 rpm
Spindle power...................................   40 HP (30 kW)
Spindle torque 40% ED...............................   67 Ft/Lb (91 Nm)
Maximum tool diameter……………………..3” (80 mm)
Maximum tool length from the spindle nose….13.75” (350 mm)
Maximum tool weight…………………………..13.26 lbs (6 kg)

EQUIPPED WITH:
Complete machine enclosure
Oil mist extraction system
Pallet changer Dynafix
251 gallon (950 l) band filter coolant tank with micro paper filtration system
-18-80 bar (261-1,160 PSI) adjustable high-pressure Coolant Thru Spindle (CTS)
-Flow rate 5.3 gallon/min (20 l/min). Unit is a KNOLL KF400|FKA/950 liter.
Lift up scraper chip conveyor for higher demands for aluminum machining
M&H Infrared touch probe
BLUM laser tool measuring system
Tool blow-off unit
Blow-off unit for laser measuring system
Tilting the working plane:
This option activates the optional HEIDENHAIN software cycle 19
“APS” Option (Advance Process System)
“ITC” Option (Intelligent Thermal Control)
“ITC-5X” Option (Intelligent Thermal Control for 5 axis)
DXF file import
Direct measuring system HEIDENHAIN glass scales X/Y/Z 0.00004” (1 um)
Direct measuring system HEIDENHAIN rotary encoders B/C 0.00004” (1 um)
External spindle chiller
Miscellaneous used pallets


Price quoted in United States Dollars
Price quoted is FOB Origin
Origin is Jackson, WI 53037

To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
