USED 2011 MIKRON MILL HSM 600U

SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS OF FRANKE CNC SALES CONTRACT, WE OFFER FOR YOUR CONSIDERATION:

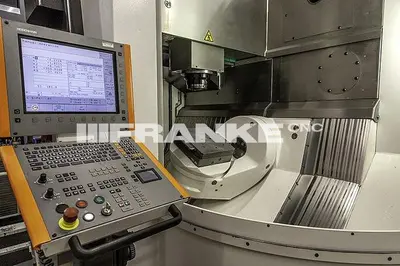

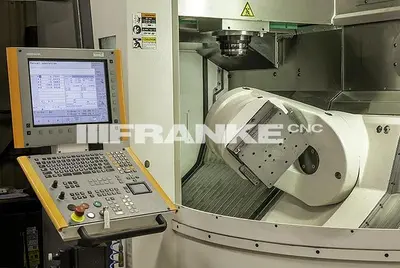

One used 2010/2011 +GF+ MIKRON HSM600U 5-Axis Machining Center with Pallet Changer:

Machine manufactured at +GF+ in Nidau, Switzerland 12/17/2010.
First installed new in USA 3/9/2011.

CONTROL
Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup

WORKING RANGE
Longitudinal X-Axis.....................................   31.5" (800 mm)
Cross Y-Axis............................................   23.6" (600 mm)
Vertical Z-Axis.........................................   19.7" (500 mm)
B-Axis (Swivel).......................................   +30/-110 degrees
C-Axis (Rotary)........................................   n x 360 degrees
Number of simultaneous axis...........................   5/5 simultaneous

FEED DRIVE
Feed Rate X/Y/Z...................................   1,653 IPM (42 m/min)
Feed Rate B-Axis (Swivel)......................................   200 RPM
Feed Rate C-Axis (Rotary)....................................   360 RPM !
Acceleration X/Y/Z.....................................   up to 17 m/sec2

DIRECT DRIVE ROTARY TILTING TABLE WITH DYNAFIX
Pallet Clamping Surface..   11.02" x 11.02" (280 mm x 280 mm) pallet size
Maximum workpiece weight (manual loading).............   264 lbs (120 kg)
Maximum workpiece weight (automatic with pallet changer)    198 lbs (90 kg)
Max pallet size possible for this machine    13.8" x 13.8" (350 x 350 mm)
Pallet type this machine is equipped for.............   System 3R Dynafix
Number of pallet stations this machine is equipped with    7 pallet stations
NOTE optional pallets sized 350 x 350 mm NOT included with this machine
With hydraulic clamping in turning and swivelling axis
All feed motors are liquid-cooled
Direct measuring system Heidenhain rotary encoders

AUTOMATION
Tool Magazine automatic tool changer......................   50 positions
Laser tool measuring system...................................   Standard
Automatic pallet changer number of pallet stations...   7 pallet stations

WEIGHT
Including pallet changer...........   Approximately 20,282 lbs (9,200 kg)
Machine base.......................   Polymer concrete (man made granite)

SPINDLE
Spindle taper..................................................   HSK A63
Spindle RPM.................................................   24,000 RPM
Spindle power 40% ED...................................   29.5 HP (22 kW)
Spindle torque 40% ED...............................   33.9 Ft/Lb (46 Nm)

EQUIPPED WITH:
Band filter system 172 gallon (650 l) coolant tank with paper filtration system & 1,015 PSI (70 bar) CTS
Chip conveyor for higher demands
Tool cleaning by air blast blow off unit
Direct measuring system Heidenhain glass scales X/Y/Z
External spindle chiller
Fully enclosed machine enclosure
Pallet changer Dynafix
“APS” option Advance Process System
“ITC” option Intelligent Thermal Control
“ITC-5X” option 5-Axis Intelligent Thermal Control
BLUM laser tool measuring system
Infrared parts measuring touch probe
Beacon
Oil Mist Extractor

Purchase Point is Jackson, WI 53037

To the best of our knowledge all details listed above are deemed correct.
It is the Buyer's responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
