USED 2008 MIKRON MILL UCP 600 VARIO

SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS OF FRANKE CNC SALES CONTRACT, WE OFFER FOR YOUR CONSIDERATION:

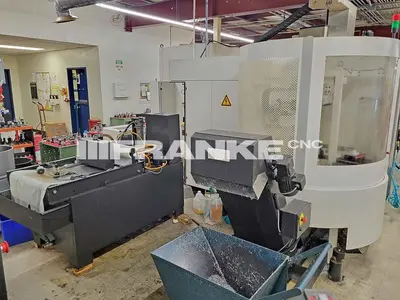

One used 2008 +GF+ MIKRON UCP 600 Vario 5-Axis Machining Center with Pallet Changer:

Machine was manufactured at +GF+ in Nidau, Switzerland 4/2008
Machine was first installed new in the USA 8/2008

May be inspected in plant under power by appointment

CONTROL
Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup

WORKING RANGE
Longitudinal X-Axis.....................................   23.6" (600 mm)
Cross Y-Axis............................................   17.7" (450 mm)
Vertical Z-Axis.........................................   17.7" (450 mm)
B-Axis (Swivel).......................................   -115/+30 degrees
C-Axis (Rotary)........................................   n x 360 degrees
Number of simultaneous axis...........................   5/5 simultaneous

FEED DRIVE
Feed Rate X/Y/Z.....................................   590 IPM (15 m/min)
Rapid Speed X/Y/Z...................................   866 IPM (22 m/min)
Rapid Speed B-Axis (Swivel).....................................   25 RPM
Rapid Speed C-Axis (Rotary).....................................   33 RPM

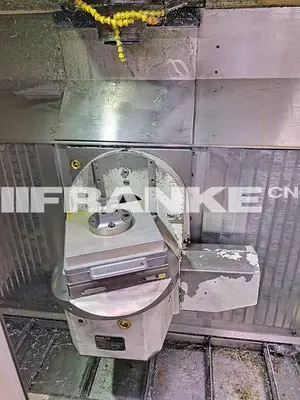

DYNAFIX PALLET RTT (ROTARY TILT TABLE)
Pallet Clamping Surface..11.02" x 11.02” (280 x 280 mm) or 13.78” x 13.78” (350 x 350 mm) pallet sizes
Maximum workpiece weight (manual loading).............   441 lbs (200 kg)
Maximum workpiece size (manual loading)………….17.72” diameter x 17.72” height (450 mm x 450 mm)
Pallet type this machine and pallet changer are equipped for.............   System 3R Dynafix pallets
Number of pallet stations pallet changer is equipped with……7 x pallet stations
All feed motors are liquid-cooled
Direct measuring system on the B and C-axis HEIDENHAIN rotary encoders 0.00004” (1 um) resolution

AUTOMATION-TOOL TOWER
Automatic tool changer tool tower....................................   120 positions
BLUM Laser tool measuring system..............................   Standard
Infrared parts measuring touch probe...............................   M&H
Automatic pallet changer number of pallet stations...................   7

WEIGHT
Including pallet changer...........   Approximately 16,976 lbs (7,700 kg)
Machine base...................................................   Polymer/man made granite

STEPTEC SWISS MADE SPINDLE
Spindle taper..................................................   HSK A63
Spindle RPM.................................................   20,000 RPM
Spindle power 40% ED...................................   40.2 HP (30 kW)
Spindle torque 40% ED...............................   67.1 Ft/Lb (91 Nm)

EQUIPPED WITH:
Chip conveyor for higher demands (aluminum machining)
Spray gun
External spindle chiller
Direct measuring system Heidenhain glass scales X/Y/Z, Encoders B,C
Completely enclosed machine cabin
18-70 bar (261 PSI-1,015 PSI) Coolant Thru The Spindle, with paper band micro filter
BLUM laser tool measuring of tool length and diameter
M&H Infrared Parts Measuring Touch Probe
Miscellaneous used pallets
Oil mist extractor
Beacon

To the best of our knowledge all details listed above are deemed correct.
It is the Buyer's responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
