USED 2005 DMG MORI NT3150 DCG/500CZ

Used MORI SEIKI NT3150 DCG/500CZ 5-Axis Turn-Mill Center

May be inspected under power in our Schaumburg, IL showroom by appointment. Fly into ORD.

HISTORY
Build date: 7/2005 in Nagoya City Aichi, Japan
Delivery date: 10/10/2008
Installation date: 10/10/2008
Machine hours: 700 (as of February 7, 2024)
Spindle hours: 50 (as of February 7, 2024)
Machine was in a university Research & Development laboratory

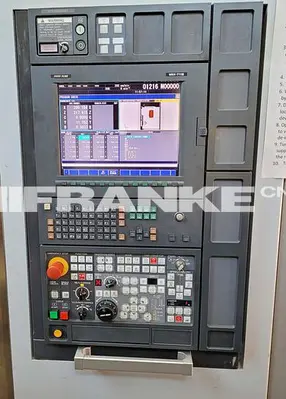

CONTROL
MSX-711 III with G121/45.0 NC Software
PLC Software: I81195E02
Mapps

SPECIFICATIONS
Main Spindle Chuck:                                    Collet
Maximum Swing:                                          23.6”
Maximum Cutting Diameter:                          23.6”
Maximum Machining Length:                22.2”
Maximum Bar Size:                                      2”
Main Spindle HP:                                          10 HP
Main Spindle RPM:                                       6,000 RPM
Main Spindle Nose:                                      A2-5
Main Spindle Bore:                                       2.4”
Milling Spindle HP:                                       5 HP
Milling Spindle RPM:                                    14,000 RPM
Number of Tool Stations:                             20 ATC
Maximum Tool Diameter:                             2.7”
Max Tool Adjacent Pockets Empty:   4.9”
Maximum Tool Length:                                 7.8”
Maximum Tool Weight:                                8.8 lb
X-Axis Travel:                                               27”
Y-Axis Travel:                                               +/- 4.9”
Z-Axis Travel:                                                22.4”
B-Axis Travel:                                               +/- 120 degrees
Rapid Traverse Rate X:                                1,968 IPM
Rapid Traverse Rate Y:                                1,181 IPM
Rapid Traverse Rate Z:                                1,968 IPM

EQUIPPED WITH:
Chip Conveyor
Coolant Thru Spindle
