USED 2012 DMG MORI DECKEL MAHO DMU 50

Subject to availability, and terms and conditions of FRANKE CNC sales agreement, we offer for your consideration:

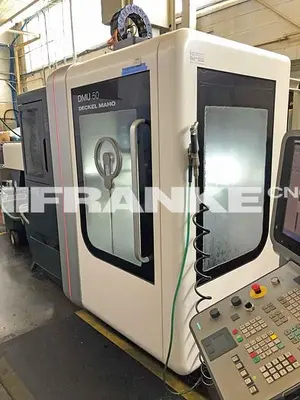

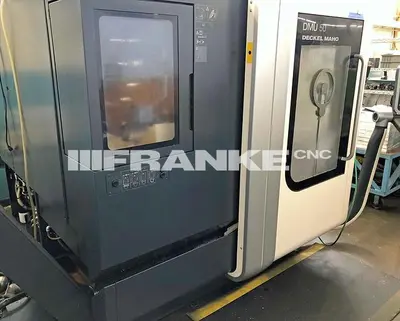

Used 2012 DMG MORI DECKEL MAHO DMU50 5-Axis Simultaneous VMC (NEW DMG Design):

HISTORY
Machine was built at DECKEL MAHO Seebach GmbH in Seebach, Germany in 2012
First installed new in the USA 1/2013

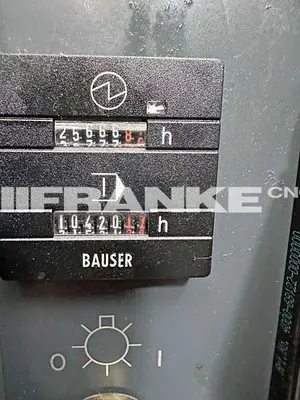

Approximately 10,420 spindle on hours over the LIFE of the machine (approx. 5 yrs. of use/1-shift basis)
Machine was used to make medical head parts

CONTROL

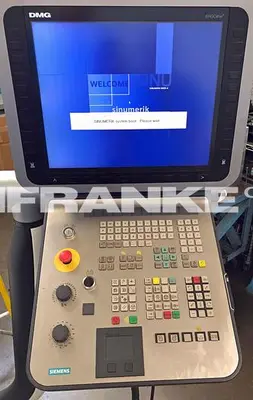

3-D-Control SIEMENS 840D solutionline with:
-ShopMill Open
-DMG ERGOline control, 19” display
-Electronic Handwheel
-TRACYL-Cylindersurface interpolation

WORK AREA
Traverse Path X (longitudinal)..........................   19.7" (500 mm)
Traverse Path Y (across)................................   17.7" (450 mm)
Traverse Path Z (vertical)..............................   15.7" (400 mm)

MAIN DRIVE
Type of Drive....................................   AC-controlled digital
Spindle Speed Range......................................   20-18,000 RPM
Maximum Torque.....................................   95.9 ft/lbs(130 Nm)
Spindle Drive Power 100% DC............................   33.5 HP (25 kW)
Spindle Drive Power 40% DC.............................   46.9 HP (35 kW)
Spindle Taper...................................................   CAT 40

FEED DRIVES
Drive Type X/Y/Z.................................   AC-controlled digital
Rapid Traverse X/Y/Z................................   945 IPM (24 m/min)
Maximum Feed Power X/Y/Z....................................   1,079 lbf.
Ballscrew X/Y/Z.......................................   40/40/32 x 10 mm

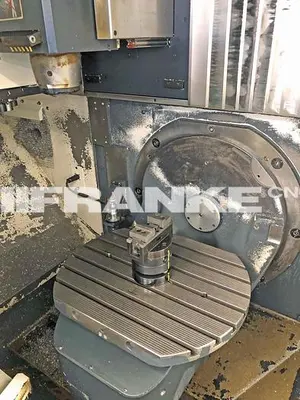

INTEGRATED SWIVEL ROTARY TABLE FOR SIMULTANEOUS MACHINING Dimensions...........   24.8" diameter x 19.7" (630 mm diameter x 500 mm)
Maximum Table Load....................................   440 lbs (200 kg)
Table Clamping...............................................   Hydraulic
Table Rotation..........................   360 Degrees (full Fourth Axis)
Table Swivel Range.....   115 degrees (-5/+110 degrees) (full Fifth Axis)
Including direct measuring system for B- and C-axis and working plane transformation

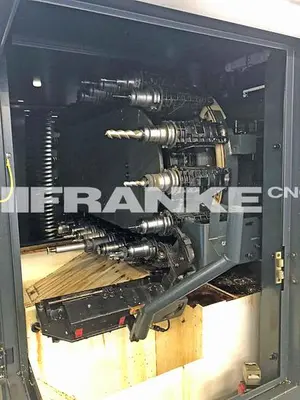

30 POSITION TOOL CHANGER, VERTICAL CHAIN WITH A DOUBLE GRIPPER Positions...........................................................   30
Maximum Tool Weight....................................   13.2 lbs (6 kg)
Maximum Tool Length.....................................   11.8" (300 mm)
Maximum Tool Diameter without vacant positions...........   3.15" (80 mm)
Maximum Tool Diameter with vacant positions.............   5.12" (130 mm)
Including set up station for tool loading

STANDARD FLOOD COOLANT UNIT
Coolant tank capacity...............................   18.5 gallon (70 l)
Pump capacity................................   4.5 gallon/min (17 l/min)
Number of nozzles....................................................   6

EQUIPPED WITH:
Tool measuring device HEIDENHAIN TT140 tool length & diameter measurement
              -with cleaning air-blast
              -with calibration tool

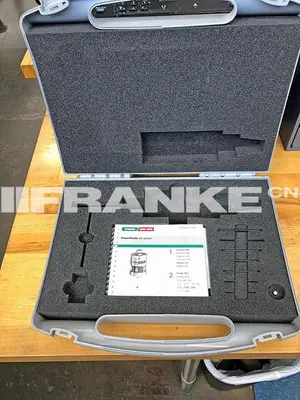

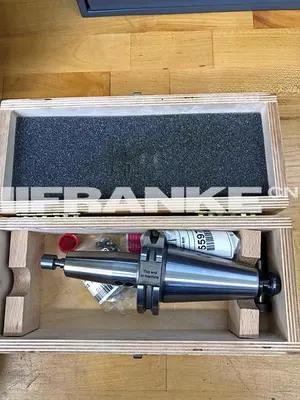

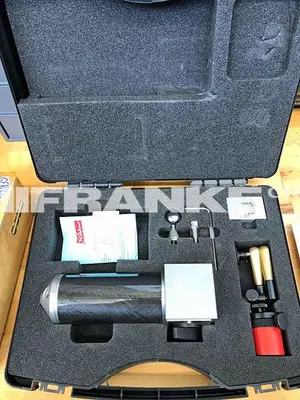

3D quickset tool kit for control and compensation of the kinematic accuracy of 5-axis machine configurations including software option

RENISHAW PP 60 optical infrared parts measuring touch probe

HEIDENHAIN glass scales direct measuring system X/Y/Z Axes

HEIDENHAIN rotary encoders direct measuring system B/C Axes

Spray gun for swarf removal

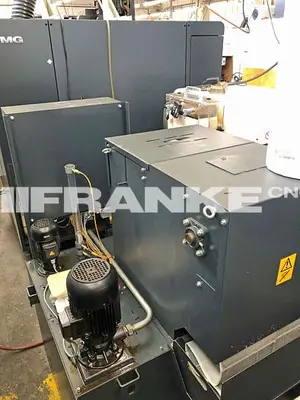

290 PSI (20 bar) (ICS) Internal Coolant Supply coolant thru the spindle with 159 gallon (600l) coolant tank and paper type filter. Performance 6 gallon/min (40 l/min). Includes:
              -Cabin roof
              -Rotary joint in spindle
              -Rotating clear-view window

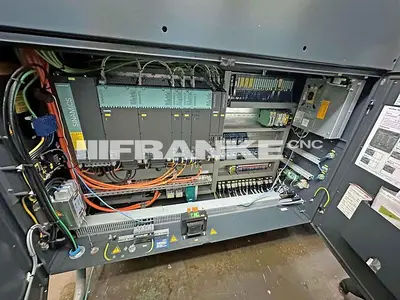

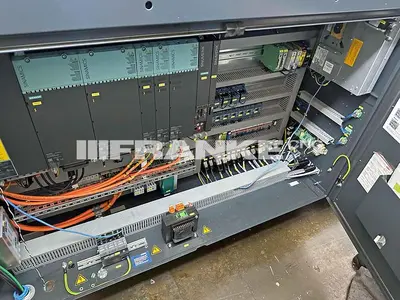

Active chiller for electrical cabinet

Swarf Chip Conveyor, scraper type


Price quoted in United States Dollars

To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details including specifications, condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
