USED 2012 DMG MORI DECKEL MAHO DMU 100P DUOBLOCK

5-AXIS MACHINING CENTERS
DECKEL MAHO DMU 100P duoBLOCK

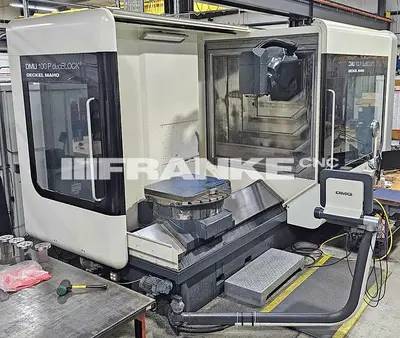

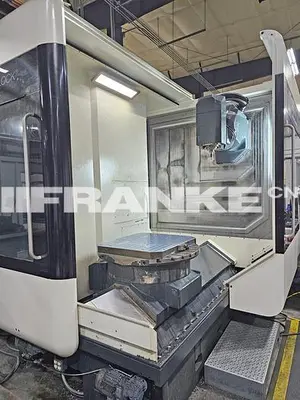

Used 2012 DMG MORI DECKEL MAHO DMU 100P duoBLOCK 5-Axis Universal Machining Center
May be inspected under power in US plant by appointment
TECHNICAL DATA
Machine was built at Deckel Maho GmbH in Pfronten, Germany
WORK AREA
X axis............................................................ 39.4"
Y axis............................................................ 49.2"
Z axis............................................................ 39.4"
Spline center clearance-pallet
Milling head horizontal.................................. 2.0-41.3"
Milling head vertical.................................... 5.9-45.3"
Spindle nose clearance-pallet center
Milling head horizontal........................... -7.9 up to 41.3"
Milling head vertical................................... 11.8-37.4"
MAXIMUM PART SIZE
43.3" diameter X 63" high X 4,850.2 lbs.
NC ROTARY TABLE
RPM............................................................ 30 rpm.
