USED 1997 DMG MORI DECKEL MAHO DMU50V
Overview
5-AXIS MACHINING CENTERS
DECKEL MAHO DMU50V
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS
FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

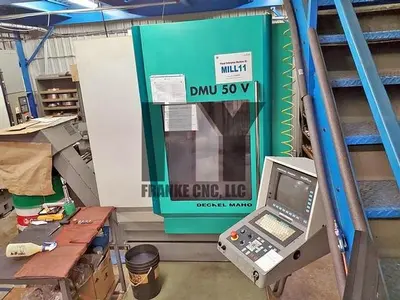

Used 1997 DMG MORI DECKEL MAHO DMU 50V 5-Axis VMC with CTS:
Machine was built at Deckel Maho Seebach GmbH in Seebach, Germany 11/1997
First installed new 1/1999
Machine was used in a R&D laboratory on jet engine components
....only 15,243 spindle on hours total over the LIFE of the machine!....
-Clamp once, machine 5-Sides-
Table on machine swivels 0-180 degrees and rotates 360 degrees which
allows for 5-Axis machining with one work piece clamping
HEIDENHAIN MillPlus control, V320 SW level, with electronic handwheel
-WORK AREA-
-MAIN DRIVE-
-FEED DRIVES-
-TOOL MAGAZINE-
-FLOOD COOLANT-
-MEASURING SYSTEM-
Direct, HEIDENHAIN glass scales, resolution 0.00004" for X/Y/Z
HEIDENHAIN direct angle encoders for B & C Axes
-NC SWIVEL ROTARY TABLE-
Rotation range 4th (rotary) C-axis 0-360 degrees (continous, full 4th)
-EQUIPPED WITH-
PRODUCTION PACKAGE consisting of:
580 PSI (40 Bar) Coolant Thru the Spindle
Chip Conveyor
Visiport inspection window on side window of machine
PRICE QUOTED IN US DOLLARS
PURCHASE POINT IS HARTLAND, WI 53029
Specs
Status: Available
Number of axis: 5-Axis
Tool changer: 24 ATC
Control: HH MillPlus
Spindle: 8,000 rpm
Spindle taper: CAT 40
X axis: 19.7" (500 mm)
Y axis: 15" (380 mm)
B axis: 0-180 degrees
Z axis: 15" (380 mm)
C axis: 360 x 0.001 degrees
Traverse path x (longitudinal): 19.7" (500 mm)
Traverse path y (across): 15" (380 mm)
Traverse path z (vertical): 15" (380 mm)
Ac-motor spindle drive power 100% dc: 13.4 HP (10 kW)
Ac-motor spindle drive power 40% dc: 20.1 HP (15 kW)
Spindle speed: 20-8,000 rpm
Number of gear steps: None
Rapid traverse linear axes x/y/z: 1,181 ipm (30 m/min)
Feed range linear axes x/y/z: 394 ipm (to 10,000 mm/min)
Storage pockets: 24 positions
Amount of coolant: 52.8 gallons (200 l)
Flow rate: 5.28 gallon/minute (20 l/minute)
Clamping surface: 19.7" x 15.0" (500 x 380 mm)
Swivel range 5th (swivel) b-axis: 0-180 degrees
Maximum table load: 441 lbs (200 kg)
Table measuring system: Direct path measuring system in both axes
Table cooling: Drive cooling for B and C axis with heat exchanger
