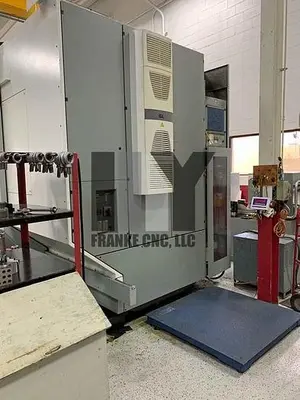

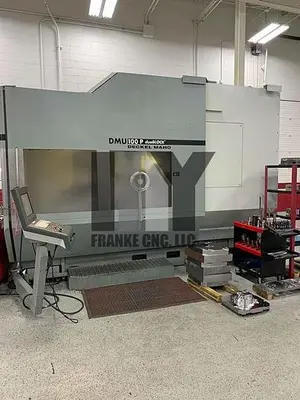

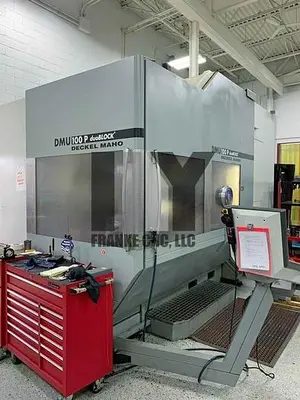

USED 2005 DMG MORI DECKEL MAHO DMU100P DUOBLOCK
Overview
5-AXIS MACHINING CENTERS
DECKEL MAHO DMU100P duoBLOCK
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:
One used 2005 DMG MORI DECKEL MAHO DMU100P duoBLOCK 5-Axis UMC:
Made was made in Pfronten, Germany at DECKEL MAHO-Pfronten

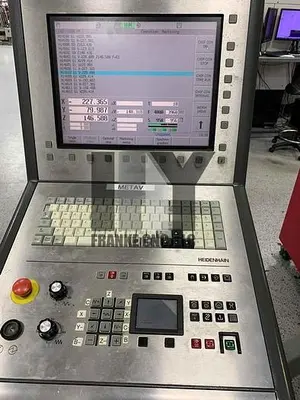

Heidenhain Millplus iT 3-D control with 15" TFT flat screen. Highlights:
-Easy to operate
-Contour programming
-Measuring cycles
-Fast batch processing
-Increased operator comfort through familiar DIN-ISO programming
-Clear layout of the graphic user-interface
-DECKEL MAHO spindle sensor technology
-DECKEL MAHO ATC (Application Tuning Cycle)
Control is equipped with the following options:
-Electronic handwheel
-2nd processor card with Windows 2000
-Application Tuning Cycle ATC:
ATC is a software option for easy tuning of the feed-drives at the
press of a button. Machine operator can adjust the machining
optimal speed or optimal precision. These 3 settings are available
from anywhere within a workpiece program. Benefits are minimized
machining times combined with maximum quality for the desired
parameters. If necessary, parameters can be set in relation to
workpiece weight.
-WORKING RANGE-
-MAXIMUM WORKPIECE DIMENSIONS-
-NC ROTARY TABLE 4TH AXIS (C-AXIS)-
1 x T-slot 18 H7 (alignment groove, table centre)
8 x T-slot 18 H12 (clamping grooves)
-NC CONTROLLED 5TH AXIS (UNIVERSAL MILLING HEAD, B-AXIS)-
B axis - NC controlled range up to 190 degrees. From vertical position
0 degrees to the left -10 degrees (in direction of tool magazine) and to
the right to horizontal position +180 degrees=3D190 degrees in total.
-MAIN DRIVE-
Tool clamping hydraulic/mechanical for draw bolt ISO/DIS 7388/II type B
-FEED DRIVES-
-40 POSITION TOOL CHANGER-
Maximum tool diameter with no neighbouring empty pockets 3.15" (80 mm)
-HEIDENHAIN GLASS SCALES X/Y/Z AXES DIRECT PATH MEASURING SYSTEM-
-HEIDENHAIN ROTARY ENCODERS B/C AXES DIRECT PATH MEASURING SYSTEM-

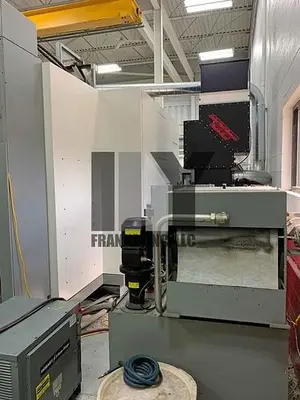

-EXTERNAL FLOOD COOLANT PUMP-
-580 PSI COOLANT THRU THE SPINDLE CENTRE (FORM AD)-
This is a full 4th axis with Direct Measuring System (Heidenhain encoder)
-EQUIPPED WITH-
Fully enclosed protection cabin
Production Package consisting of:
-Coolant tank 158 gallon (600 l)
-Automatic coolant cleaning through paper band filter
-580 PSI (40 bar) coolant thru the spindle centre (Form AD)
-Rotating clear-view window (in cabin window)
-Chip conveyor with interval control
RENISHAW MP10 Infrared parts measuring probe
BLUM Laser tool measuring-tool length, diameter & broken tool detection
-Automatic retraction of the measuring unit in a protected housing.
-Tool length and diameter measuring in horizontal/vertical position.
Spray pistol with pump, 14.5 PSI/10.4 gallon/min pump performance
APPROXIMATE WEIGHT 37050#
Specs
Status: Available
Number of axis: 5-Axis
Tool changer: 40 ATC
Control: HH Millplus iT
Spindle: 18,000 rpm
Spindle taper: CAT 40
X axis: 39.4" (1,000 mm)
Y axis: 39.4" (1,000 mm)
B axis: -10 to +180 degrees
Z axis: 39.4" (1,000 mm)
C axis: 360 x 0.001 degrees
First installed new: 08/2005
Performance to preferred conditions: optimal surface quality,
X axis (longitudinal): 39.4" (1,000 mm)
Y axis (transverse): 39.4" (1,000 mm)
Z axis (vertical): 39.4" (1,000 mm)
Maximum workpiece diameter: 49.2" (1,250 mm)
Maximum workpiece height: 62.2" (1,580 mm)
Maximum workpiece weight: 4,409 lbs (2,000 kg)
Clamping surface: 43.3" diameter x 35.4" (1,100 mm diameter x 900 mm)
Maximum table load (centered): 4,400 lbs (2,000 kg)
Maximum torque (40% ed): 3,614 ft/lb (4,900 Nm)
Maximum holding momentum (40% ed): 3,614 ft/lb (4,900 Nm)
Rapid speed rotary axis (c-axis): 30 rpm
Distance between t-slots: 4" (100 mm)
Type: Brushless AC/Digital
Power 40% duty cycle (s3): 37 hp (28 kW)
Power 100% duty cycle (s1): 25 hp (19 kW)
Spindle speed range: 20-18,000 rpm
Acceleration/deceleration: 2.2 seconds
Number of gear steps: None
Maximum spindle torque 40% duty cycle: 89.2 ft/lb (121 Nm)
Maximum spindle torque 100% duty cycle: 60.48 ft/lb (82 Nm)
Spindle bearing diameter front: 3.15" (80 mm)
Spindle bearing diameter rear: 2.36" (60 mm)
Feed rate (x-y-z): 2,362 ipm (60 m/min)
Rapid feed (x-y-z): 2,362 ipm (60 m/min)
Acceleration (x-y-z): 6/5/6 m/s-2
Feed power (x-y-z): 12/12/12 kN
Ball screw (x-y-z): 40 mm x 20 mm
Magazine type: Chain, horizontal, double gripper
Number of pockets: 40
Maximum tool weight: 33.1 lb (15 kg)
Maximum tool diameter with neighbouring empty pockets: 6.3" (160 mm)
Maximum tool length: 19.7" (500 mm)
Input resolution: 0.001 mm
Pump output external jets pressure: 21.7 PSI (1.5 bar)
Pump output external jets flow rate: 10.6 gallon/minute (40 l/min)
Coolant tank capacity: 158 gallon (600 l)
Pump output: 6.1 gallon/minute (23 l/min)
Pump pressure: 580 PSI (40 bar)
