USED 2004 DMG MORI DECKEL MAHO DMU100P DUOBLOCK

5-AXIS MACHINING CENTERS

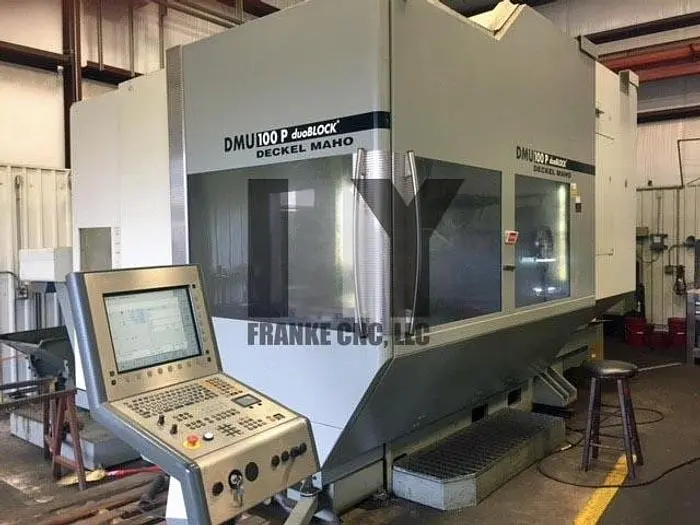

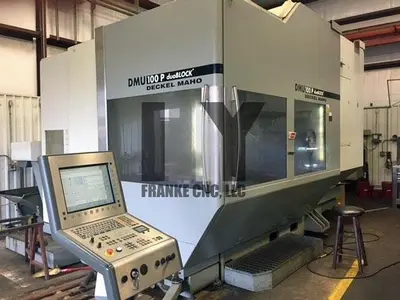

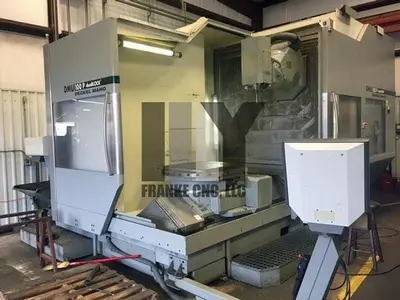

DECKEL MAHO DMU100P duoBLOCK
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:
One used 2004 DECKEL MAHO DMG-DMU100P duoBLOCK 5-Axis Machining Center:
Machine was made at DECKEL MAHO Pfronten in Pfronten, Germany
May be inspected in USA plant under power by appointment!

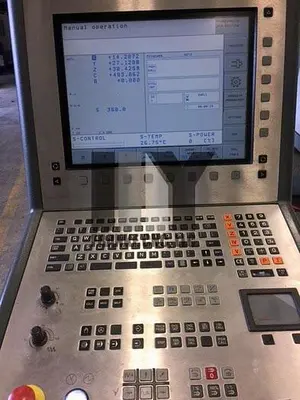

HEIDENHAIN iTNC 530 3-D control with 15" TFT flat screen & handwheel
-WORKING RANGE-
X axis (longitudinal)................................. 39.4" (1,000 mm)
Y axis (transverse)................................... 39.4" (1,000 mm)
Z axis (vertical)..................................... 39.4" (1,000 mm)
-MAXIMUM WORKPIECE DIMENSIONS-
Maximum workpiece diameter............................ 49.2" (1,250 mm)
Maximum workpiece height.............................. 62.2" (1,580 mm)
Maximum workpiece weight.......................... 4,409 lbs (2,000 kg)
-NC ROTARY TABLE 4TH AXIS (C-AXIS)-
Clamping surface... 43.3" diameter x 35.
