USED 2001 DMG MORI DECKEL MAHO DMU 50 EVOLUTION

5-AXIS MACHINING CENTERS
DECKEL MAHO DMU 50 eVolution
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS
FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

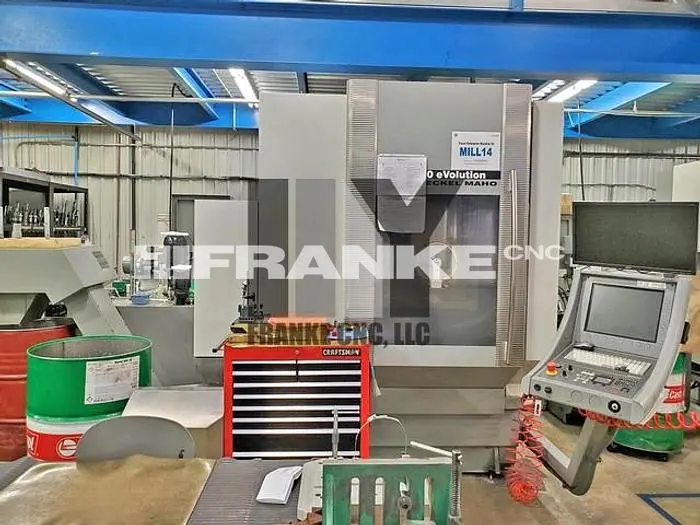

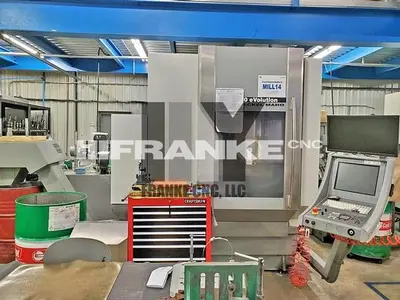

Used 2001 DMG MORI DECKEL MAHO DMU 50 eVolution full 5-Axis VMC:
Machine was built at Deckel Maho Seebach GmbH in Seebach, Germany
First installed new 9/2001
Machine was used in a R&D laboratory on jet engine components
....only 12,807 spindle on hours total over the LIFE of the machine!....
-Clamp once, machine 5-Sides-
Table on machine swivels 0-180 degrees and rotates 360 degrees which
allows for 5-Axis simultaneous machining with one work piece clamping
HEIDENHAIN MillPlus IT control, 500/08 SW level, with electronic handwheel
-WORK AREA-
Traverse path X (longitudinal).......................... 19.7" (500 mm)
Traverse path Y (across)................................ 16.5" (420 mm)
Traverse path Z (vertical)................................ 15" (380 mm)
-MAIN DRIVE-
AC-motor spindle drive power 100% DC................... 33.
