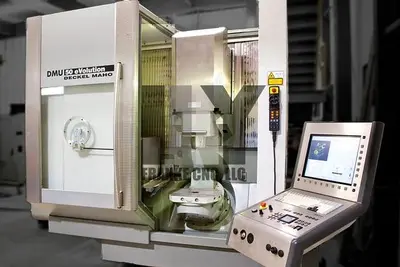

USED 2004 DMG MORI DECKEL MAHO DMU 50 EVOLUTION
Overview
5-AXIS MACHINING CENTERS
DECKEL MAHO DMU 50 eVolution
Subject to availability, prior sale, and terms and conditions of standard sales contract, we offer for your consideration:
One used 2003 DMG MORI DECKEL MAHO DMU 50 eVolution 5-Axis simultaneous machining center
-Clamp once, machine 5-Sides-
Table on machine swivels 0-180 degrees and rotates 360 degrees which allows for high speed 5-Sided 5-Axis simultaneous machining with one work piece clamping
Machine was made in Seebach, Germany at DECKEL MAHO-Seebach
HEIDENHAIN Millplus IT control with electronic hand wheel and Ethernet interface
-With 2nd processor card
Work Area
Main Drive
Feed Drives
Tool Magazine
Flood Coolant
NC-Swivel Rotary Table
Equipped With
BLUM Laser tool measuring of tool length and diameter, also with broken tool detection
HEIDENHAIN infrared parts measuring probe
Production Package which consists of:
-580 PSI (40 Bar) coolant thru the spindle with 238 gallon (900 liter) coolant tank
-Air purge for linear measuring system
-Chip conveyor
Heidenhain glass scales (direct path measuring system) X Y Z B C
Machine Dimensions
Specs
Status: Available
Number of axis: Full 5-Axis
Tool changer: 32 ATC
Control: HH Millplus iT
Spindle: 18,000 rpm
Spindle taper: CAT 40
X axis: 19.7" (500 mm)
Y axis: 16.5" (420 mm)
B axis: 0-180 degrees
Z axis: 15" (380 mm)
C axis: 360 x 0.001 degrees
Build date for this machine: March 2003
Machine first installed new in the usa: June 2004
Traverse path x (longitudinal): 19.7” (500 mm)
Traverse path y (across): 16.5” (420 mm)
Traverse path z (vertical): 15” (380 mm)
Ac-motor spindle drive power 100% dc: 33.5 HP (25 kW)
Ac-motor spindle drive power 40% dc: 46.9 HP (35 kW)
Spindle speed: 20-18,000 rpm
Maximum spindle torque: 95.9 Ft/Lbs (130 Nm)
Number of gear steps: None
Spindle bearing diameter: 3.15” (80 mm)
Rapid traverse linear axes x/y/z: 1,968.5 ipm (50 m/min)
Feed velocity linear axes x/y/z: 787.4 ipm (20 m/min)
Storage pockets: 32 positions
Maximum tool weight: 13.22 lbs (6 kg)
Max. tool diameter without vacant places: 3.15” (80 mm)
Max. tool diameter with vacant places: 4.13” (105 mm)
Maximum tool length: 11.02” (280 mm)
Chip to chip time: Approximately 6 seconds
Amount of coolant: 52.8 gallons (200 l)
Flow rate: 5.28 gallon/minute (20 l/minute)
Clamping surface: 19.7” x 15.0” (500 x 380 mm)
Swivel range (swivel) b-axis: 0-180 degrees
Swivel range (rotary) c-axis: 0-360 degrees
Rapid traverse, (swivel) b-axis: 26 rpm
Rapid traverse, (rotary) c-axis: 33 rpm
Maximum table load: 441 lbs (200 kg)
Table measuring system: Direct path measuring system in both axes
Table cooling: Drive cooling for B and C axis with heat exchanger
Table swivel time, horizontal/vertical: Approximately 1.5 seconds
Machine length: Approximately 140”
Machine width: Approximately 88”
Machine height: Approximately 97”
Machine weight: Approximately 12,566 lbs (5700 kg)
