USED 2008 DMG MORI DECKEL MAHO DMU 50

5-AXIS MACHINING CENTERS
DECKEL MAHO DMU 50
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS
FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

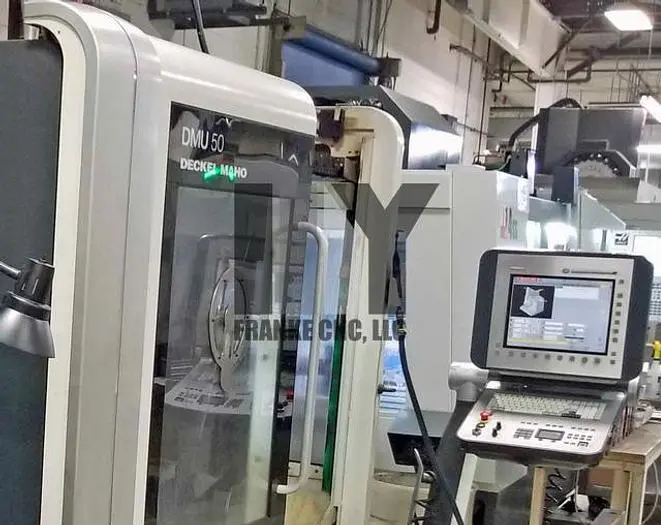

One used 2008 DMG MORI DECKEL MAHO DMU 50 5-Axis VMC:
Machine was made at Deckel Maho Seebach GmbH in Seebach, Germany
3D HEIDENHAIN MillPlus iT CNC control with DMG ERGOline 19" screen
WORK AREA
Traverse Path X (longitudinal).......................... 19.7" (500 mm)
Traverse Path Y (across)................................ 17.7" (450 mm)
Traverse Path Z (vertical).............................. 15.7" (400 mm)
MAIN DRIVE
Type of Drive.................................... AC-controlled digital
Spindle Speed Range...................................... 20-10,000 RPM
Maximum Torque..................................... 95.9 ft/lbs(130 Nm)
Spindle Drive Power 100% DC............................. 12.1 HP (9 kW)
Spindle Drive Power 40% DC............................. 17.4 HP (13 kW)
Spindle Taper..................................................
