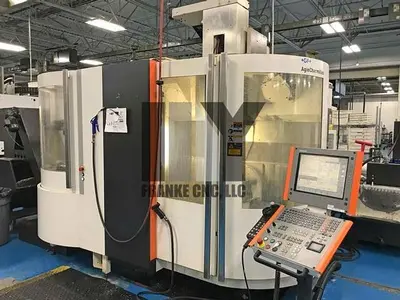

USED 2011 MIKRON MILL UCP 600 VARIO
Overview
5-AXIS MACHINING CENTERS
UCP 600 Vario
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:
One used 2011 +GF+ MIKRON UCP 600 Vario Full 5-Axis Machining Center with 7 APC:
Machine was made in Nidau, Switzerland
Approximately 10,134 Spindle on hours total on fresh spindle
Approximately 19,586 Program run hours total
CONTROL
Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup
WORKING RANGE
FEED DRIVE
WORKING TABLE
Maximum workpiece weight (automatic with pallet changer) 198 lbs (90 kg)
Max pallet size possible for this machine 13.8" x 13.8" (350 x 350 mm)
All feed motors are liquid-cooled
Direct measuring system Heidenhain rotary encoders
AUTOMATION
WEIGHT
STEPTEC SWISS MADE SPINDLE
EQUIPPED WITH:
Chip conveyor
Spray gun
Spindle chiller
Direct measuring system Heidenhain glass scales X/Y/Z, Encoders B,C
Completely enclosed machine cabin
18-70 bar (261 PSI-1,015 PSI) Coolant Thru the Spindle, w/paper band micro filter
BLUM laser tool measuring of tool length and diameter
M&H Infrared Parts Measuring Touch Probe
Specs
Status: Available
Number of axis: Full 5-Axis
Tool changer: 60 ATC
Control: HH iTNC 530
Spindle: 20,000 rpm
Spindle taper: HSK A63
X axis: 23.6" (600 mm)
Y axis: 17.7" (450 mm)
Z axis: 17.7" (450 mm)
Longitudinal x-axis: 23.6" (600 mm)
Cross y-axis: 17.7" (450 mm)
Vertical z-axis: 17.7" (450 mm)
B-axis (swivel): -115/+30 degrees
C-axis (rotary): n x 360 degrees
Feed rate x/y/z: 590 IPM (15 m/min)
Rapid speed x/y/z: 866 IPM (22 m/min)
Rapid speed b-axis (swivel): 25 RPM
Rapid speed c-axis (rotary): 33 RPM
Clamping surface: 13.8" x 13.8" (350 mm x 350 mm)
Maximum workpiece weight (manual loading): 441 lbs (200 kg)
Pallet type this machine is equipped for: System 3R Dynafix
Number of pallet stations this machine is equipped with: 7
Automatic tool changer: 60 positions
Blum laser tool measuring system: Standard
Infrared parts measuring touch probe: M&H
Automatic pallet changer number of pallet stations: 7
Including pallet changer: Approximately 16,976 lbs (7,700 kg)
Machine base: Granite
Spindle rpm: 20,000 RPM
Spindle power 40% ed: 40.2 HP (30 kW)
Spindle torque 40% ed: 67.1 Ft/Lb (91 Nm)
