USED 2007 MIKRON MILL MIKRON HSM 400U
Overview
5-AXIS MACHINING CENTERS
MIKRON HSM 400U
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

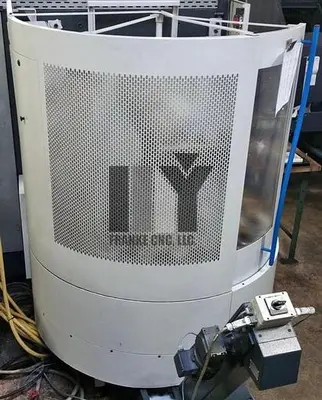

One used 2007 MIKRON HSM 400U 5-Axis High Speed Vertical Machining Center:
May be inspected in plant under power in the USA by appointment

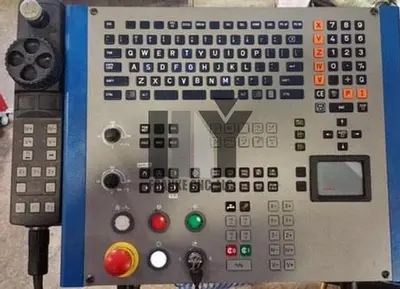

HEIDENHAIN iTNC530 CNC Control with 15" TFT screen & electronic handwheel
-18 STATION AUTOMATIC PALLET CHANGER-
-EQUIPPED WITH-
APS Advanced Processing System
PLC Spindle Protection System
ITC Intelligent Thermal Control
ITC-5X 5 Axis Intelligent Thermal Control
Full Machine Enclosure
Tool cleaning by air blast
BLUM Laser tool measurement system
Ethernet interface
Transformer
Chiller
Tool changer TCD 68 HSK-E40
Chip conveyor including coolant tank

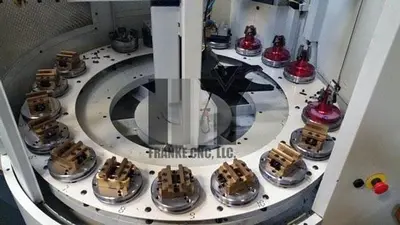

Pallet changer Macro Magnum System 3R
Movable electronic hand wheel iTNC 530
This machine was made in Nidau, Switzerland
Price quoted in United States Dollars
Specs
Status: Available
Number of axis: 5-Axis Simultaneous
Tool changer: 68 ATC
Control: HH iTNC 530

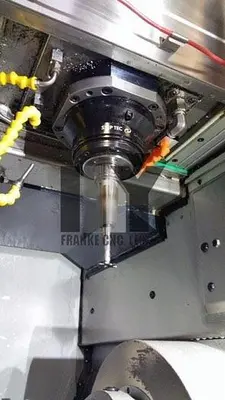

Spindle: 42,000 rpm
Spindle taper: HSK-E40
X axis: 15.76" (400 mm)
Y axis: 9.45" (240 mm)
Z axis: 13.79" (350 mm)
Machine total weight including pallet changer: 14,771 lbs (6,700 kg)
Machine base: Polymer concrete
Longitudinal x axis travel: 15.76" (400 mm)
Cross y axis travel: 9.45" (240 mm)
Z axis travel: 13.79" (350 mm)
Maximum part diameter: 9.05" (230 mm)
Rotary tilting table b-axis swivelling axis: +110/-110 Degrees
Rotary tilting table c-axis rotary axis: n x 360 Degrees
Rapid traverse (swivelling): 165 rpm
Rapid traverse rotary axis (turning): 250 rpm
Maximum feed force (x): 1,878.75 ft/lb (8.35 Kn)
Maximum feed force (y): 1,158.75 ft/lb (5.15 Kn)
Maximum feed force (z): 900 ft/lb (4 Kn)
Recommended maximum feed rate: 1,575 ipm (40 m/min)
Rapid traverse (all axes): 1,575 ipm (40 m/min)
Maximum table load: 55 lbs (25 kg)
Measurement system glass scales: 0.000004" (0.1 um) increments
Spindle power: 17.43 HP (13 kW)
Spindle speed: 42,000 rpm
Spindle manufactured by: Step-Tec Switzerland
Working spindle, tool clamping taper: HSK-E40
Automatic tool changer: 68 position
Number of pallet stations: 18 (Does not come with the pallets)
Pallet size: System 3R Macro Magnum 6.14" (156 mm) diameter
