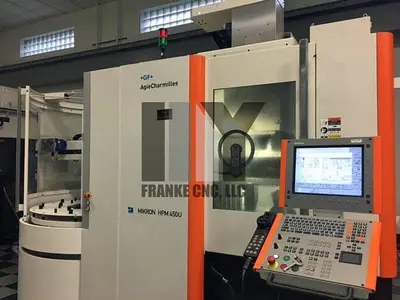

USED 2013 MIKRON MILL MIKRON HPM 450U
Overview
5-AXIS MACHINING CENTERS
MIKRON HPM 450U
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:
ONE USED 2013 MIKRON GFMS-HPM 450U 5-AXIS AUTOMATED MACHINING CENTER:
Machine made in Nidau, Switzerland, inspect under power on our floor in WI
-CONTROL-
Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup
-WORKING RANGE-

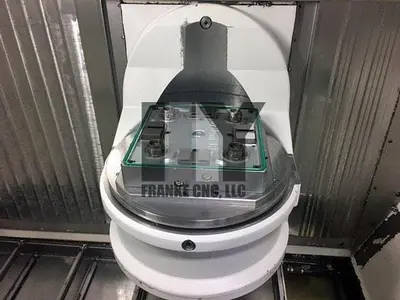

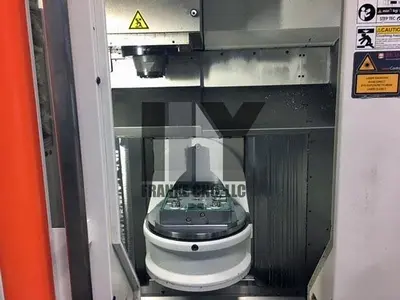

-ROTARY TILTING TORQUE MOTOR TABLE-
Pallet Version System 3R Dynafix 280 mm x 280 mm (11.02" x 11.02") Pallets
Maximum Weight On Table 150 kg (331 lbs) manual; 90 kg (198 lbs) automatic

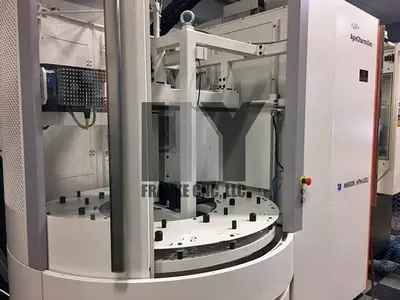

Automatic Pallet Changer 7 Pallets capacity(No pallets come with machine)
Max pallet size possible for this machine 350 mm x 350 mm (13.8" x 13.8")
-FEED DRIVES-
-STEPTEC SWISS MADE SPINDLE-
-60 POSITION TOOL CHANGER-
-EQUIPPED WITH-
Complete machine enclosure
Pallet changer Dynafix 280x280
Spindle chiller
Direct measuring system Heidenhain glass scales X/Y/Z, Encoders B,C
60 position tool changer
18-70 bar (261 PSI-1,015 PSI) Coolant Thru The Spindle

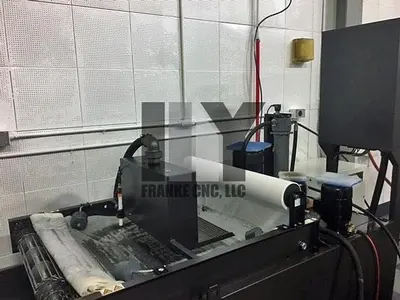

Paper band micro filter system 650 liter (172 gallon) capacity tank
BLUM laser tool measuring of tool length and diameter
M&H Infrared Parts Measuring Touch Probe
Lift-up Chip Conveyor
Spray Gun
Beacon
Blow-off unit for laser measuring system
All feed motors are liquid-cooled
Electric oil mist extractor
Specs
Status: Available
Number of axis: Full 5-Axis
Tool changer: 60 ATC
Control: HH iTNC 530
Spindle: 20,000 rpm
Spindle taper: HSK-A63
X axis: 23.62" (600 mm)
Y axis: 17.72" (450 mm)
B axis: -120/+45 degrees
Z axis: 17.72" (450 mm)
C axis: 360 x 0.001 degrees
Longitudinal x-axis: 23.62" (600 mm)
Transverse y-axis: 17.72" (450 mm)
Vertical z-axis: 17.72" (450 mm)
Tilt, b-axis: -120/+45 degrees
Rotary, c-axis: n x 360 degrees
Feed/rapid speed b-axis: 50 rpm
Feed/rapid speed c-axis: 140 rpm
Feed rate x/y/z: 590 IPM (15 m/min)
Rapid speed x/y/z: 866 IPM (22 m/min)
Spindle rpm: 20,000 RPM
Spindle power: 40.2 HP (30 kW)
Spindle torque: 67.1 Ft/Lb (91 Nm)
Automatic tool changer: 60 position
