USED 2013 MIKRON MILL HPM450U

5-AXIS MACHINING CENTERS
HPM450U
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

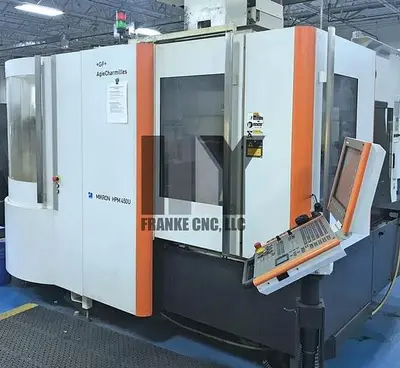

ONE USED 2013 SWISS +GF+ MIKRON HPM 450U 5-AXIS AUTOMATED MACHINING CENTER:
Machine built in Nidau, Switzerland 2012; first installed new June of 2013
-HISTORY-
Has machined small high precision aerospace parts
Approximately only 9,000 Program run hours over the life of the machine
-CONTROL-
Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup
-WORKING RANGE-
-ROTARY TILTING TORQUE MOTOR TABLE-
Pallet Version    System 3R Dynafix 280 mm x 280 mm (11.02" x 11.02") Pallets
Maximum Weight On Table    150 kg (331 lbs) manual; 90 kg (198 lbs) automatic
Automatic Pallet Changer    7 Pallets capacity(No pallets come with machine)
Max pallet size possible for this machine    350 mm x 350 mm (13.8" x 13.8")
-FEED DRIVES-
-STEPTEC SWISS MADE SPINDLE-
-120 POSITION TOOL CHANGER TOWER-
-EQUIPPED WITH-
Complete machine enclosure
Pallet changer Dynafix 280x280
Spindle chiller
Direct measuring system Heidenhain glass scales X/Y/Z, Encoders B,C
60 position tool changer
18-70 bar (261 PSI-1,015 PSI) Coolant Thru The Spindle
Paper band micro filter system 650 liter (172 gallon) capacity tank
BLUM laser tool measuring of tool length and diameter
M&H Infrared Parts Measuring Touch Probe
Lift-up Chip Conveyor
Spray Gun
Beacon
Blow-off unit for laser measuring system
All feed motors are liquid-cooled
