USED CPC PUMPS HR, TYPE OH2

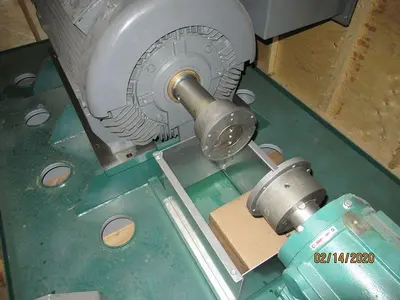

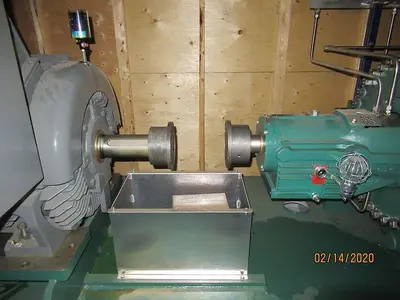

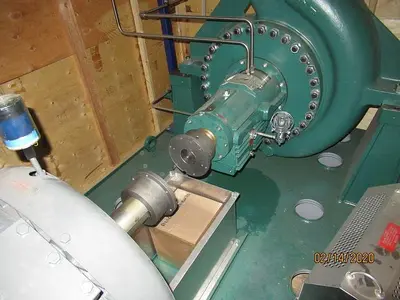

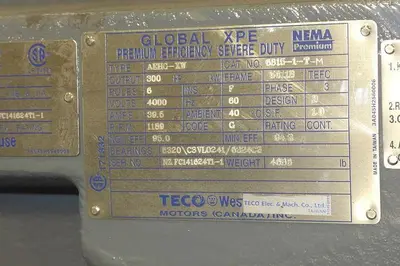

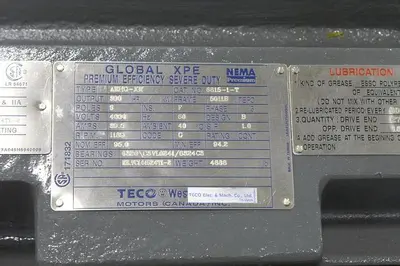

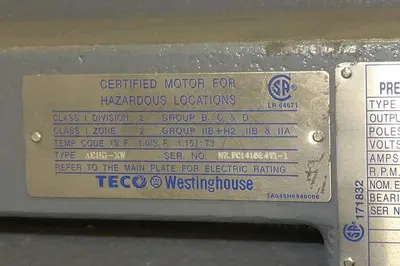

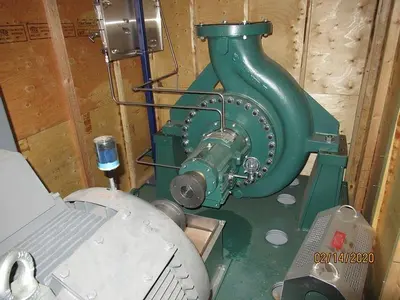

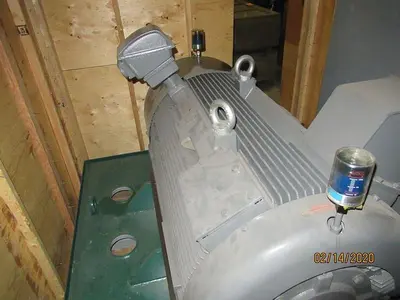

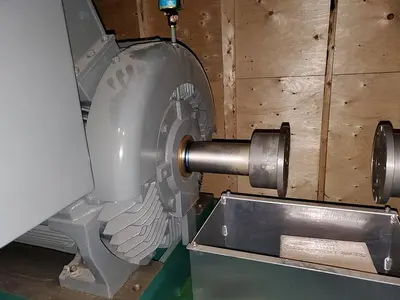

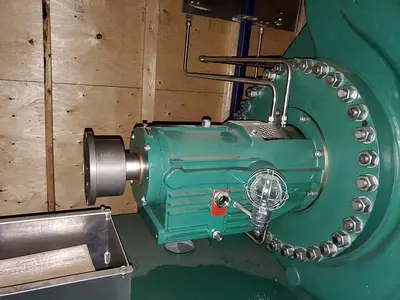

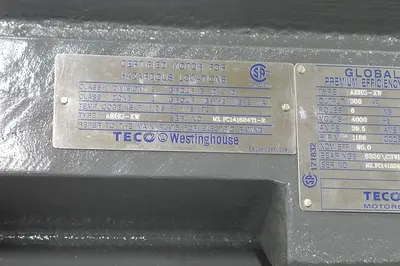

Heavy Oil Desand Pump, manufactured by CPC Pumps, Model HR, Type OH2, Size A12x14x23. Carbon steel alloy construction with A216 Gr WCB 12% CR casing material and A487 Gr CA6NM 12% CR impeller material. Rated for flow of 759.3 m3/h (3345 gallons per minute), 46.7 (153) head, 3650 MAWP Kpa, 193 degrees Celsius, 0.925 specific gravity, 610 API. Features 12", 300 pounds RF discharge, with 14" 300 pounds RF suction connection. Complete with 300 HP Teco motor, 1189 RPM, 3-Phase, 4000 V, 60 Hz, with 5011B frame. Unit is unused, never installed.

Stock Number: C743770
Manufacturer: CPC Pumps
Model: HR, Type OH2
HP: 300
Inlet and Outlet: 14" Inlet x 12" Outlet
Size: A12x14x23
Materials of Construction: Carbon Steel
Basis: AIWI
