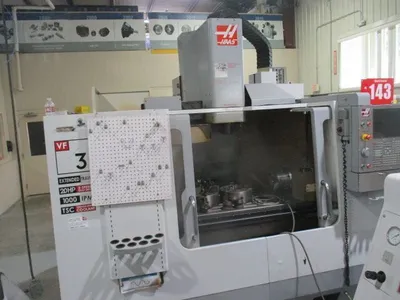

USED 2007 HAAS VF-3YT
Overview
HAAS VF-3YT used CNC machining center available. Features 40" X, 26" Y, and 25" Z axes, 30 hp, 8100 RPM, 20 ATC, CT/BT 40 taper, and a 25"x54" table. Ideal for precision tasks with 3-axis configuration.
Specs
2007 HAAS VF-3YT Vertical Machining Center w/ 4th Axis #8360
Specifications:
X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50
Tool Changer: 30 ATC
Spindle Nose to Table: 7.9" - 32.9"
Max Torque: 340 ft-lbf
Drive System: 2-Speed Gearbox
Max Cutting: 500 ipm
Max Thrust X: 3400 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 5600 lbf
Max Tool Weight: 30 lbs
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 6.3 s
Equipped w/:
4th Axis Table
Coolant Thru Spindle
Programmable Coolant
Haas CNC Control
Chip Auger
