Mill, Batch, 3' X 6', 15 HP, #D739651

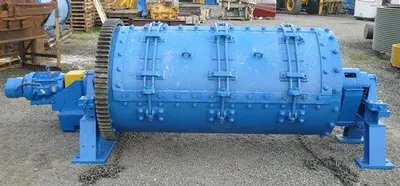

Tumbler batch mill, 3' X 6', driven by a Baldor 15 HP, 1765 RPM, 254T frame, 230/460 volts motor with a Dodge Maxum gear reducer model DC84, Output RPM: 108, Ratio 17:1. Includes Spur Cut bull gear with78 teeth and 4" face, 30" wide X 6' long hatch, and smmothe rubber lining. Pinion Gear: 22 teeth, 4" face, approximately 1-1/4" center to center tooth spacing; Electric Stearns break model 10870600GQF.

Stock Number: D739651
Diameter: 3'
Measurements: 36" Diameter X 72" Long
HP: 15
Type: Rubber Lined
Basis: FOB
