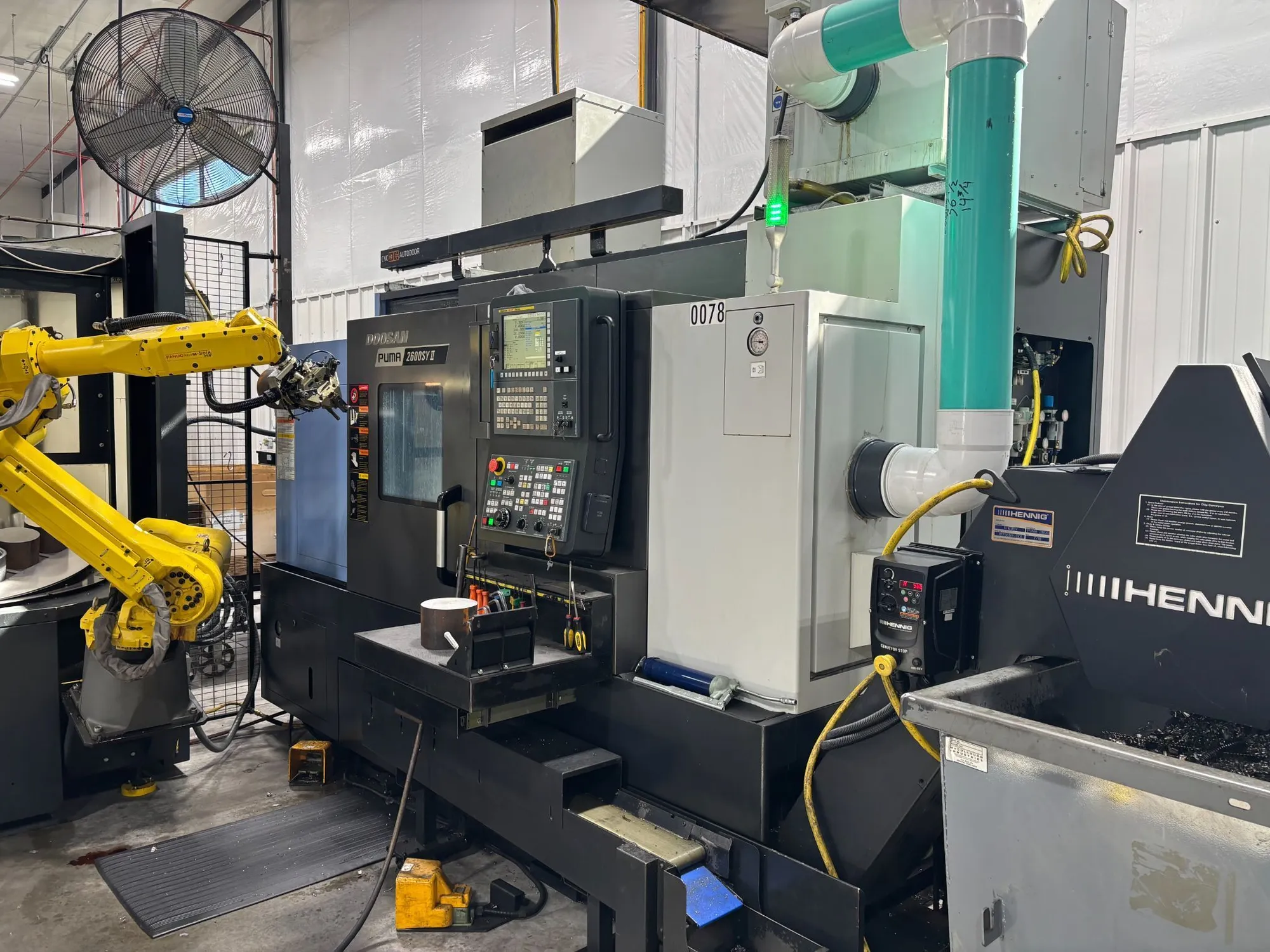

USED 2017 DOOSAN PUMA 2600SY
Overview
High Performance Y-axis Horizontal Turning Center
If you are machining simple, straightforward parts through to high-precision, complex components made from difficult-to-machine materials the PUMA 2600SYII is your ‘go-to’ turning center. The machine has been designed with single-set up efficiency and accuracy in mind.
Specs
Spindle Bar Capacity 3.2″
Boring Bar Diameter: 2.0″
Main Spindle Max. Speed: 4,000 RPM
Sub Spindle Max. Speed: 6,000 RPM
Main Spindle Chuck 10"
Sub Spindle Chuck 8"
Spindle Motor: 20 HP
Max. Turning Diameter: 14.8″
Max. Turning Length: 29.9″
X-Axis: 10.2″
Y-Axis: 4.1″
Z-Axis: 32.7″
B-Axis: 32.7″
X-Axis Rapid Traverse: 1,181 in/min
Y-Axis Rapid Traverse: 394 in/min
Z-Axis Rapid Traverse: 1,181 in/min
C-Axis Rapid Traverse: 200 RPM
Turret Capacity: 12 Station
Live Cutting Rotary Tool Speed: 5,000 RPM
Live Milling Rotary Tool Motor: 10 HP
Equipped With
Chip Conveyor
Tool Setter
Tailstock
3 Live tool holders
All static tool holders
Parts Catcher
Parts Conveyor
