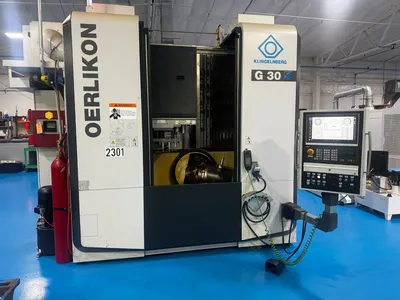

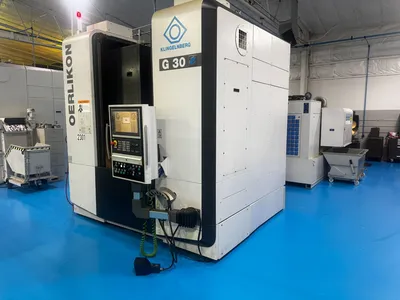

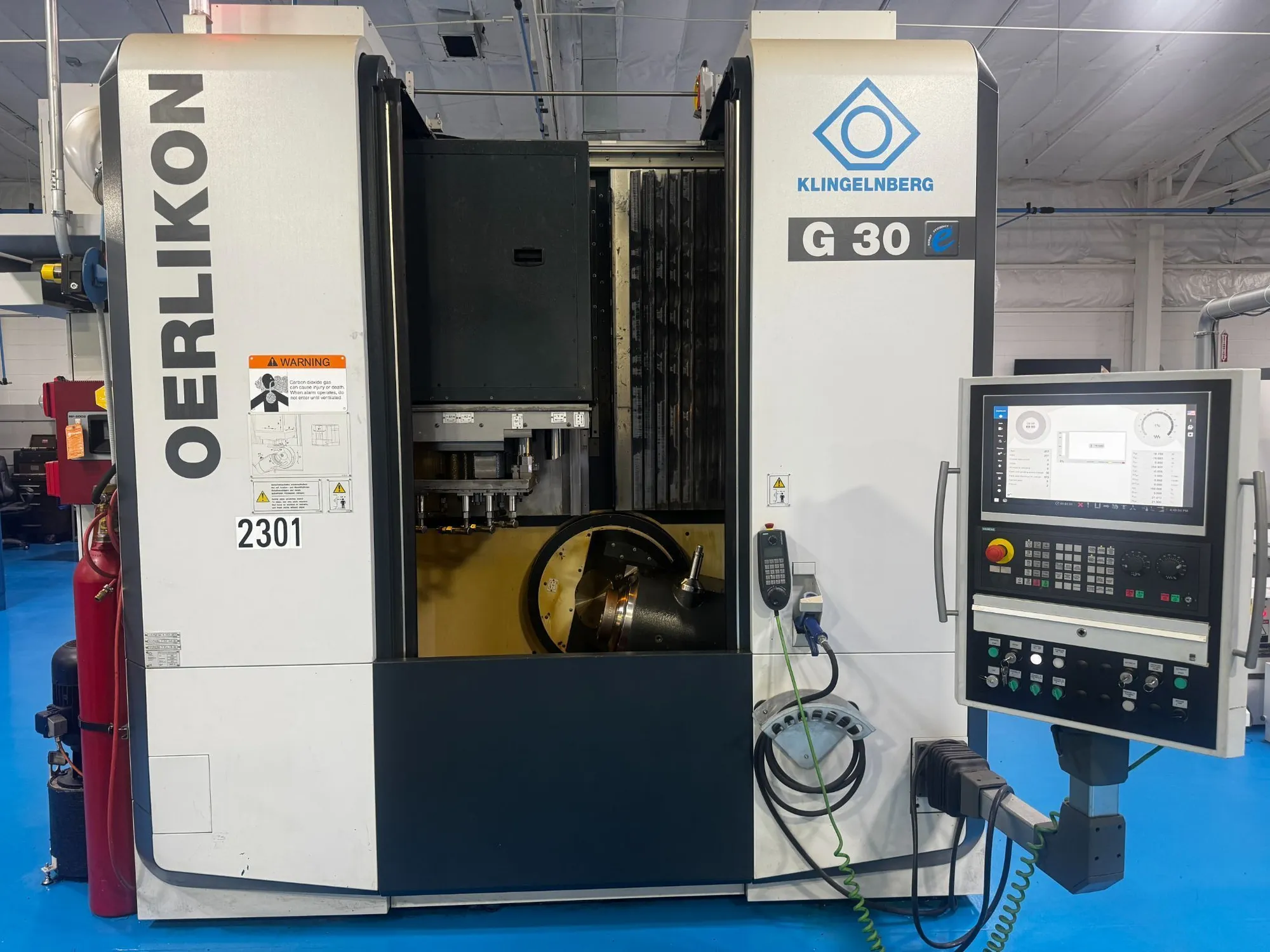

USED 2015 KLINGELNBERG OERLIKON G30
Overview

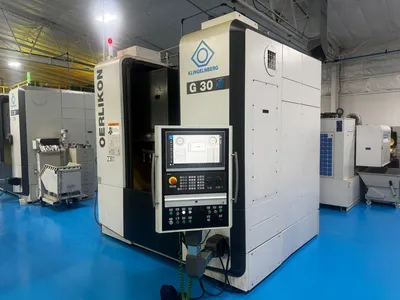

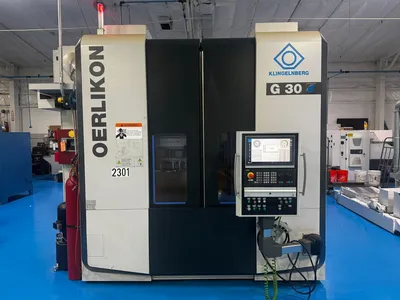

Klingelnberg Oerlikon G 30 is a high-precision, vertical-concept CNC spiral bevel gear grinding machine designed for the productive, high-accuracy finishing of curved-toothed bevel gears and face-type clutches.
Specs
Specifications:
Maximum Workpiece Diameter: 300 mm
Normal Module Range: 0.7 - 8 mm
Pitch Cone Angle Range: -90 Degrees up to 90 Degrees
Through Bore of Workpiece Spindle: 99.258 mm (3.9")
Grinding Wheel Diameter Range: 50 mm - 230 mm (2"-9")
Maximum Grinding Spindle Speed: 8,000 RPM
Equipped With

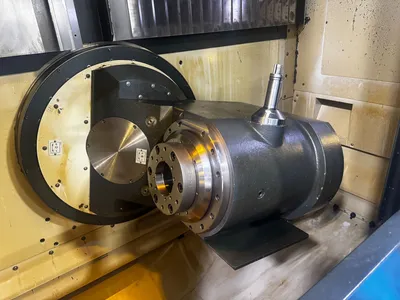

3.9" Workpiece Spindle Adapter
Auto Retraction
Hydraulic Workpiece & Grinding Wheel Clamping Equipment
Automatic Work Area Door
Software For Generating & Plunge Grinding (Up to Max. 40 Cycles)
Software For Double Generating Possible
Software For Dressing After An Adjustable Number of Teeth or Referred
to the Number of Cycles
Data Storage on Hard Disk for More Than 10.000 Different Workpieces

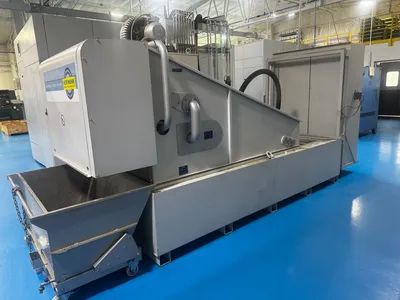

Suction Belt Filter Unit
Integrated Oil Mist Extraction Unit
Automatic CO2 Suppression System
Conical Tool Depth (circular arc toothing)
Stock Amount Check
Grinding Wheel Flanges W/HSK-Connection (for grinding wheels with metal bottom
plate 2" - 4,5"
Grinding Wheel Flanges W/HSK-Connection (for grinding wheels with metal bottom
plate 5" - 9"
Grinding Wheel Handling Device
