USED FANUC A06B-0238-B605#S000

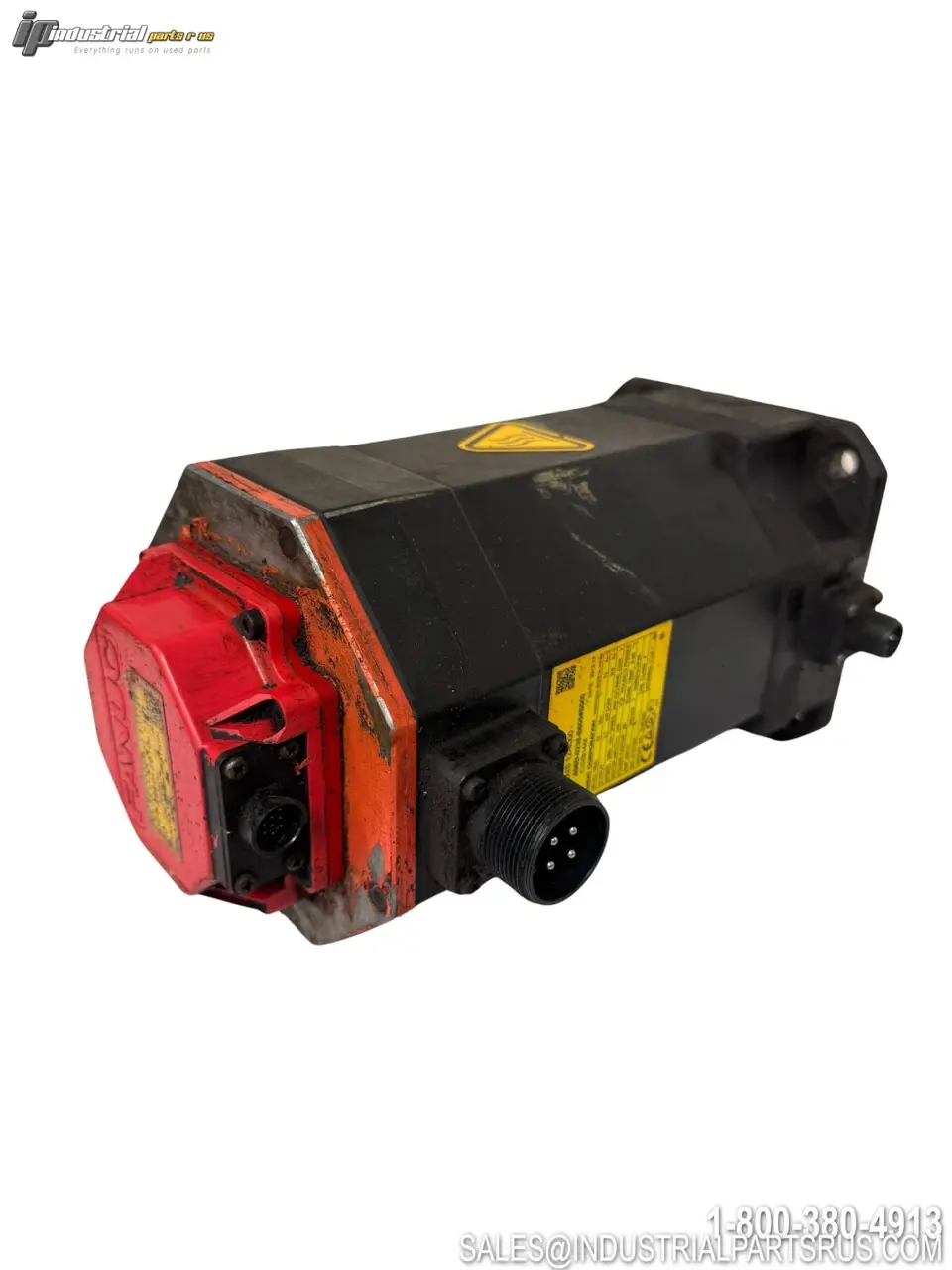

The Fanuc A06B-0238-B605#S000 is a three-phase AC servo motor from the Alpha iS (αiS) series, model AiS12/4000, rated at 2.7 kW continuous output and 3000 RPM maximum speed. It features a tapered shaft with keyway, an integrated 90V DC holding brake, and a high-resolution a64iA absolute pulse coder encoder (16,777,216 PPR) for precise positioning and feedback. This motor carries an IP65 enclosure rating and is designed for demanding CNC machine tool and industrial robot applications requiring high torque density and reliable motion control.

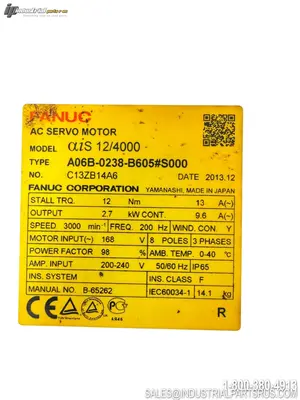

Specification
Value
Brand
Fanuc
Model / Part Number
A06B-0238-B605#S000
Motor Series / Model Name
Alpha iS (αiS) Series – AiS12/4000
Motor Type
AC Servo Motor (Permanent Magnet Synchronous)
Rated Output Power
2.7 kW
Rated Speed (Max)
3000 RPM
Stall Torque
12 Nm
Rated Voltage (Output)
168V AC
Input Voltage
200–240V AC
Phase
3-Phase
Frequency
200 Hz (input: 50/60 Hz)
Stall Current
13 A
Rated Current (Continuous)
9.6 A
Power Factor
98%
Number of Poles
8
Winding Configuration
Wye (Star)
Shaft Type
Tapered Shaft with Keyway (TPR)
Brake
90V DC Holding Brake
Encoder / Feedback
a64iA Absolute Pulse Coder (Ai AR128)
Enclosure / Protection Class
IP65
Insulation Class
Class F
Motor Family
200V AC Alpha i Series
Suitable Applications
CNC Machine Tools, Industrial Robots (e.g. R-30iA), Automation
Approx. Weight
33.2 lbs (15.1 kg)
Approx. Dimensions (L × W × H)
15.5 × 8 × 6.5 in
We warranty all items for 30 days from date of purchase.
