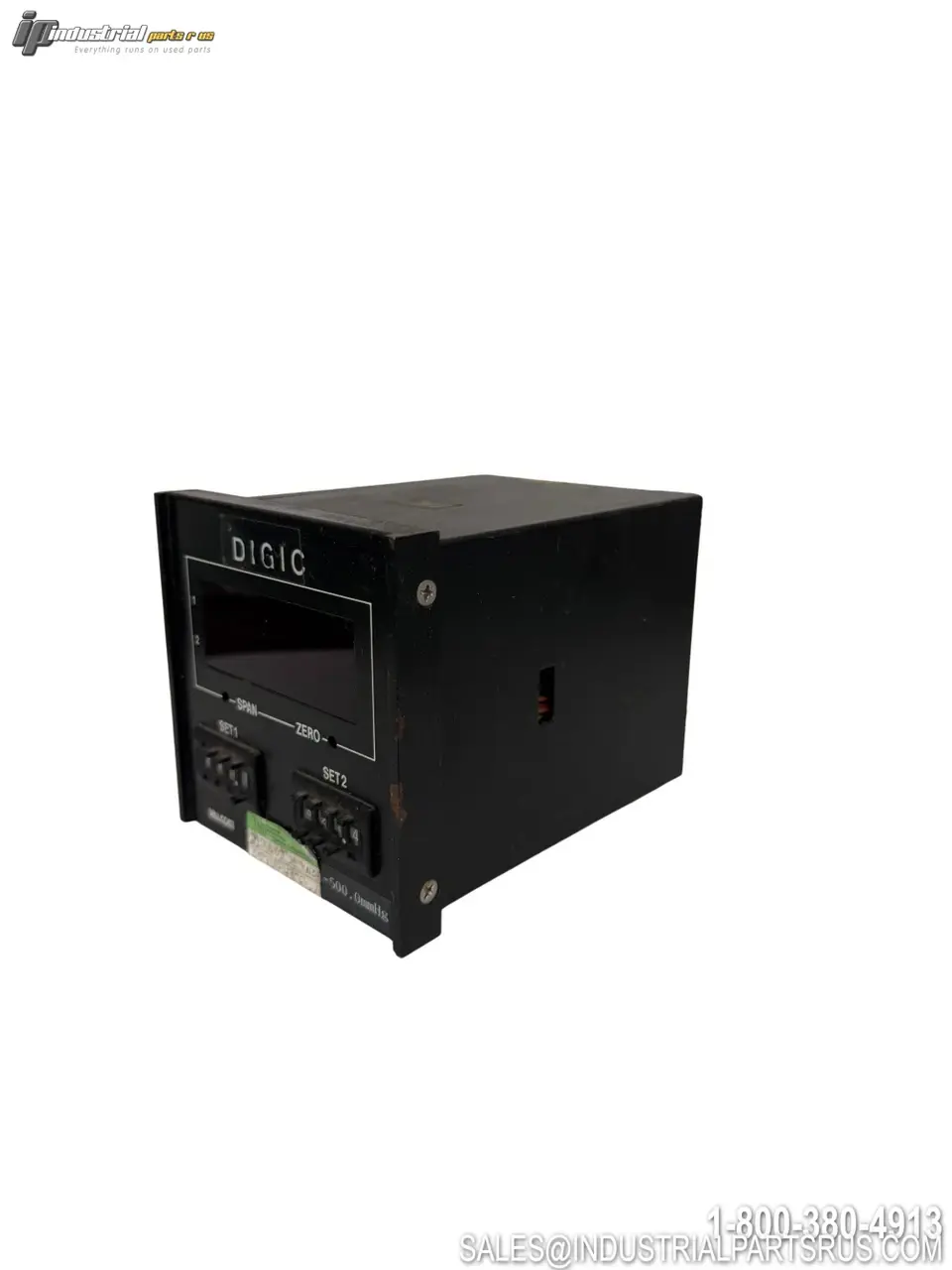

USED VALCOM VPS-A2B1-(-500.0MMHG)-2S(HL)-4

The Valcom VPS-A2B1-(-500.0mmHg)-2S(HL)-4 is a DIN96 square-format digital pressure/load meter (sensing amplifier) designed to work in combination with a compatible Valcom pressure sensor. It displays vacuum pressure in the range of –500.0 mmHg and provides two comparison setting outputs (HI and LO) via photo-MOS relay, making it suitable for process monitoring and automated switching applications. The unit is powered by 24VDC and is configured as a sensor-separate type instrument for industrial measurement and control. Termination is via screw terminal, and the instrument mounts directly into a standard DIN96 panel cutout.
Specification
Value
Brand
Valcom
Model / Part Number
VPS-A2B1-(-500.0mmHg)-2S(HL)-4
Manufacturer
Valcom Co., Ltd.
Product Type
DIN96 Square Digital Pressure / Load Meter (Sensing Amplifier)
Series
VPS
Pressure Range
–500.0 mmHg (Vacuum / Negative Gauge Pressure)
Pressure Unit
mmHg
Measurement Type
Vacuum / Negative Gauge Pressure
Number of Comparison Outputs
2 (HI and LO setpoints)
Output Type
Photo-MOS Relay (2S type)
Setpoint Configuration
HI (H) and LO (L) Comparative Setting Output
Supply Voltage
24VDC
Power Supply Code
4 (24VDC)
Instrument Form Factor
DIN96 (96mm × 96mm panel cutout)
Display
4-Digit LED Digital Display
Configuration
Sensor Separate Type (requires external Valcom pressure sensor)
Comparator Function
High-Speed Analog Comparator
Application
Vacuum Pressure Monitoring, Process Control, Industrial Automation
Compatible Media
Vacuum / Negative Pressure Processes
Origin
Japan
