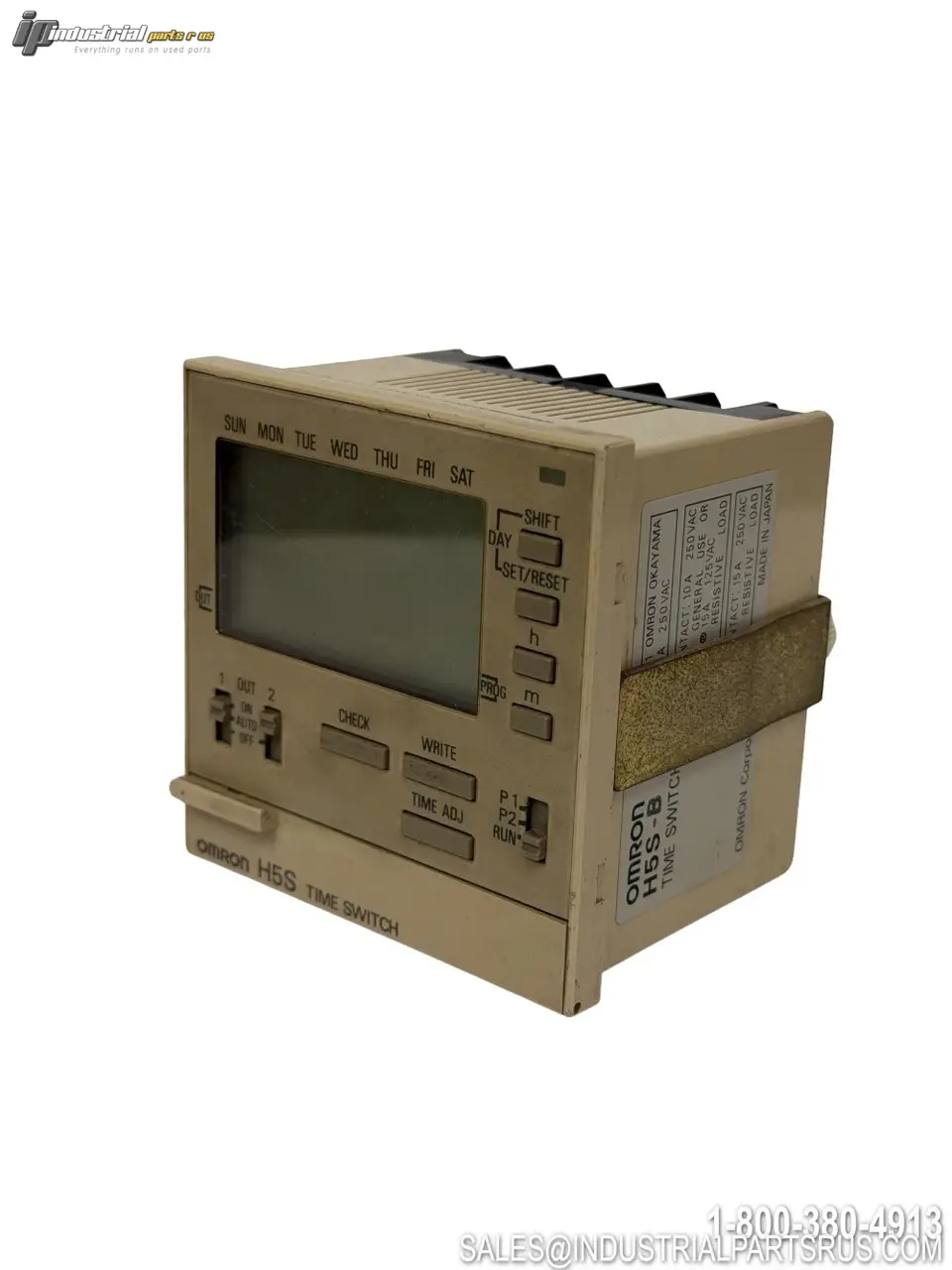

USED OMRON H5S-B

The Omron H5S-B is a Weekly Digital Time Switch designed for panel flush mounting, offering programmable ON/OFF control of up to two independent output circuits. It accepts a wide supply voltage range of 100 to 240 VAC and features an LCD display for easy time and program setting. The H5S-B is the flush-mount variant in the H5S series; its surface-mount/track-mount counterpart is the H5S-FB.
Specification
Value
Brand
Omron
Model / Part Number
H5S-B
Product Type
Weekly Digital Time Switch
Series
H5S
Control Cycle
Weekly (1 Week)
Supply Voltage
100 to 240 VAC
Power Consumption (AC)
Approx. 3 VA
Number of Output Circuits
2 Circuits
Output Type
SPST-NO (No-voltage contact output) x 2
Contact Rating
15 A at 250 VAC, resistive load (per circuit)
Mounting Style
Flush Mounting (Panel)
Terminal Type
Screw Terminals (M3.5)
Time Setting Range
00:00 a.m. to end of week (1-minute increments)
Time Accuracy
±0.01% ±0.05 s max.
Monthly Difference
±15 s/month at 25°C (approx. 4 s/week, 1 min/4 months)
Memory Protection
5 years minimum at 25°C (Lithium battery backup)
Insulation Resistance
100 MΩ min.
Display
LCD (Day / Hours / Minutes)
Operating Modes
Timer operation, Pulse-output operation, Cyclic operation
Panel Cutout Dimensions
67.6 x 67.6 mm (approx. 75 x 75 mm outer)
Panel Thickness
1 to 5 mm
Surface Mount Equivalent
H5S-FB
Catalog Number
L014-E1-4E
We warranty all items for 30 days from date of purchase.
