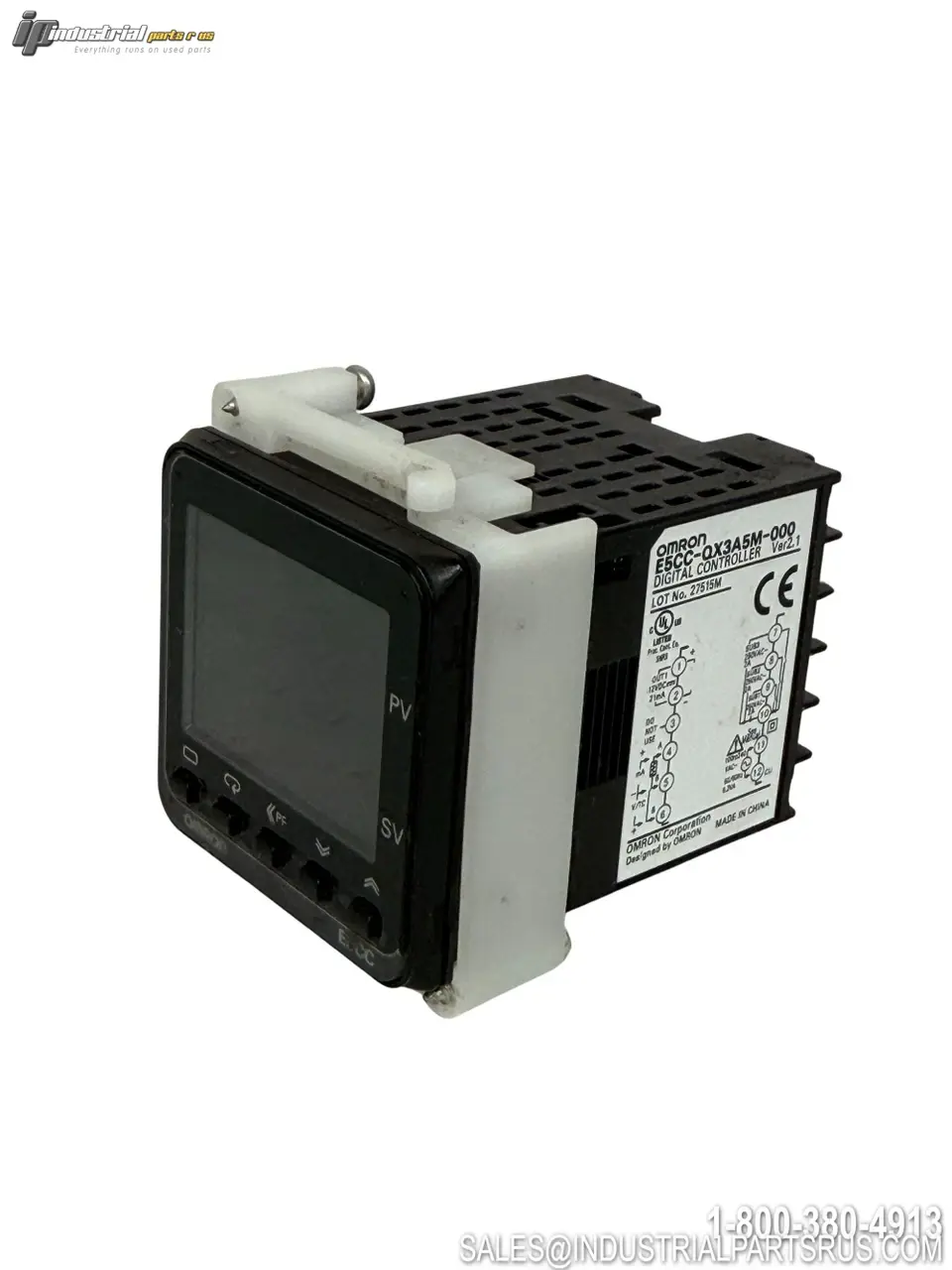

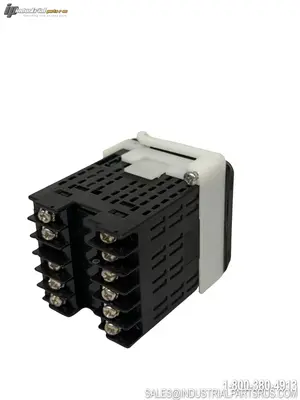

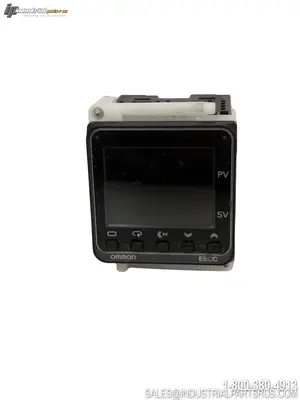

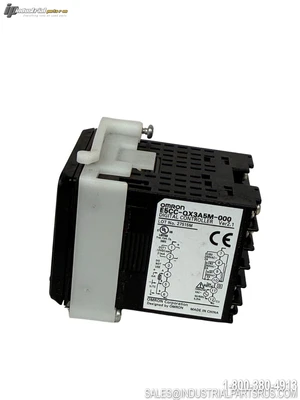

USED OMRON E5CC-QX3A5M-000

The Omron E5CC-QX3A5M-000 is a 1/16 DIN (48×48 mm) digital PID temperature controller from the E5CC series, featuring a 12 VDC pulse (SSR voltage) control output, three auxiliary relay outputs, and a universal analog input compatible with thermocouples, RTDs, and analog current/voltage signals. It offers a high-contrast white LCD display, 50 ms sampling period, and built-in timer and logic functions, making it suitable for a wide range of industrial heating and cooling applications. Configuration and monitoring can be performed via Omron's CX-Thermo software (version 4.4 or higher) using a USB bus-powered connection.
Specification
Value
Brand
Omron
Model / Part Number
E5CC-QX3A5M-000
Product Series
E5CC
Product Type
Digital PID Temperature Controller
DIN Size
1/16 DIN
Panel Cutout / Dimensions (W × H × D)
48 × 48 × 78 mm
Supply Voltage
100–240 VAC, 50/60 Hz
Power Consumption (AC, -000 option)
5.2 VA max. at 100–240 VAC
Control Output 1 Type
12 VDC Pulse / SSR Voltage Output (PNP)
Output Voltage
12 VDC ±20% (PNP), max. load current 21 mA
Auxiliary Outputs
3 × SPST-NO Relay, 250 VAC / 2 A resistive load
Relay Electrical Life
100,000 operations
Minimum Applicable Load
10 mA at 5 V
Analog Input (Universal)
1 × universal: Thermocouple, RTD, Analog current/voltage
Thermocouple Input Types
K, J, T, E, L, U, N, R, S, B, W, PL-II
RTD Input Types
Pt100, JPt100
Analog Voltage Input
0–50 mV; 1–5 VDC; 0–5 VDC; 0–10 VDC
Analog Current Input
4–20 mA; 0–20 mA
Input Impedance (Current)
150 Ω max.
Input Impedance (Voltage)
1 MΩ min.
Temperature Accuracy
±1°C
Sampling Period
50 ms
Control Method
2-PID with Auto-Tuning
Display
2-row × 4-digit white LCD (backlit); PV: 15.2 mm digits; SV: 7.1 mm digits
Mounting Style
Panel Mount (flush door mounting)
Terminal Type
Screw terminals with cover
IP Rating
IP66 (front face)
Operating Temperature
−10°C to +55°C
Communication / Software
CX-Thermo v4.4 or higher (USB bus-powered)
Event / Auxiliary Inputs
None (base -000 option; no event inputs)
Heater Burnout Detection
Not included (-000 option)
Timer / Logic Functions
Built-in (eliminates need for external PLC)
We warranty all items for 30 days from date of purchase.
