USED OMRON H7CX-AD

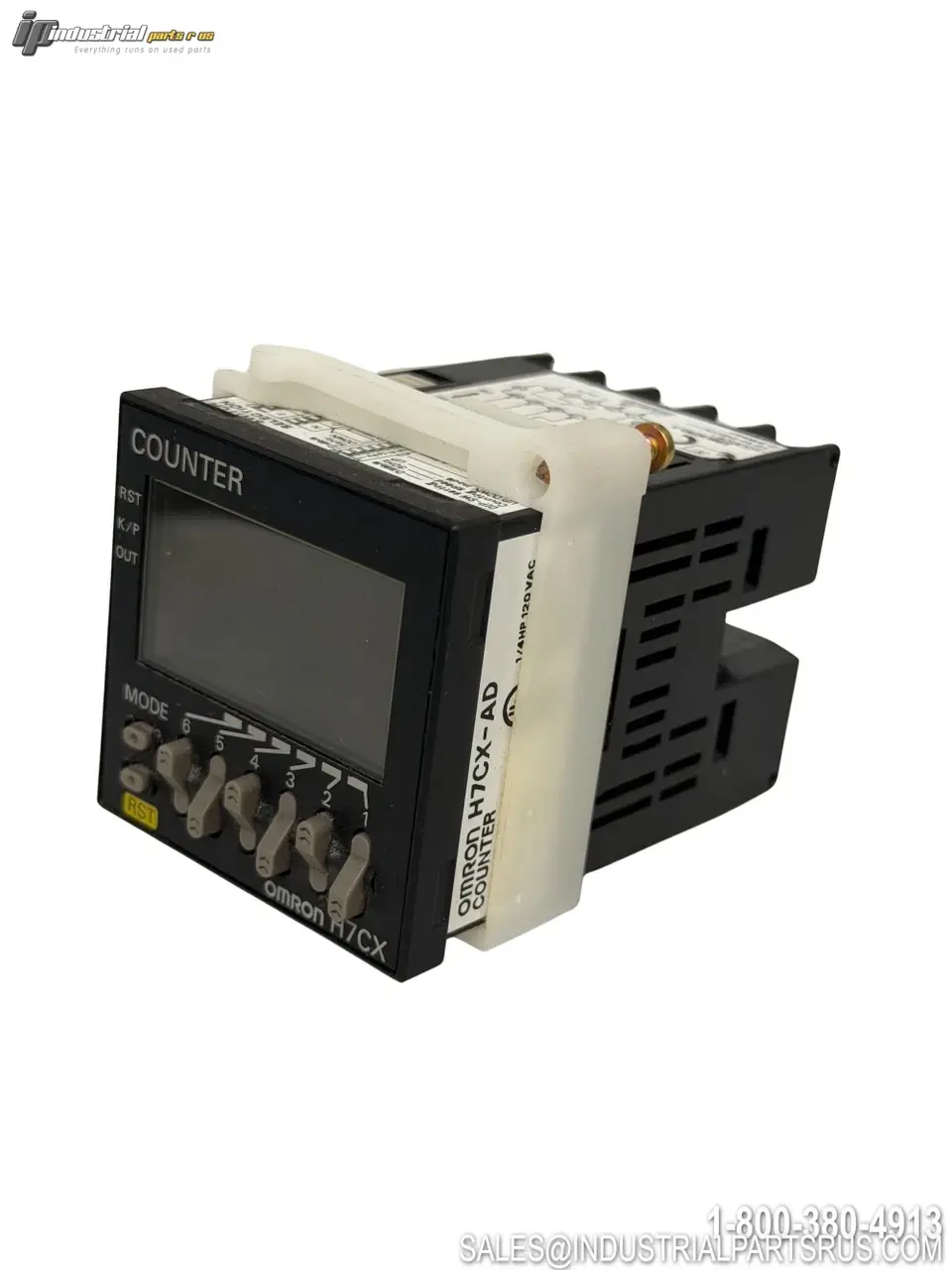

The Omron H7CX-AD is a 6-digit multifunction preset counter in a compact 1/16 DIN (48×48 mm) panel-mount housing. It operates on a 12–24 VDC supply and features a dual-row negative transmissive 7-segment LCD with color-selectable backlight (red/green/orange for count value). The unit supports 1-stage preset and total counter configurations with SPDT relay output and accepts both no-voltage (NPN/PNP open collector switchable) and voltage inputs.
Specification
Value
Brand
Omron
Model / Part Number
H7CX-AD
Product Series
H7CX-A
Product Type
Multifunction Preset Counter
Form Factor / Size
1/16 DIN (48 x 48 mm)
Supply Voltage
12–24 VDC
Power Consumption
Approx. 3.7 W at 12 VDC; Approx. 4.7 W at 24 VDC
Output Type
SPDT Relay (Contact Output)
Contact Rating
3 A at 250 VAC / 3 A at 30 VDC (resistive load)
Minimum Applicable Load
10 mA at 5 VDC
Number of Digits
6 (Count Value) + 6 (Set Value)
Counting Range
-99,999 to 999,999
Display Type
Negative Transmissive 7-Segment LCD with Backlight
Display Character Height (PV)
10 mm
Display Character Height (SV)
6 mm
Backlight Colors
Red / Green / Orange (switchable for Count Value); Green (Set Value)
Max Counting Speed
30 Hz or 5 kHz (selectable, ON/OFF ratio 1:1)
Sampling Period
200 ms max.
Input Type
No-Voltage Contact; NPN/PNP Open Collector (switchable); Voltage Input
Input Terminals
CP1, CP2, RESET, TOTAL RESET
Operating Modes
Increment, Decrement, Command, Individual, Quadrature
Counter Configurations
1-Stage Preset, 1-Stage with Total Counter (selectable)
Memory Type
EEPROM (100,000 overwrites min.; data retention 10 years min.)
Mounting Type
Panel Mount / Flush Mounting
Terminal / Connection Type
Screw Terminals
Panel Cutout Dimensions
45 mm x 45 mm
Body Dimensions (W x H x D)
48 mm x 48 mm x 59 mm (depth)
Ingress Protection (IP Rating)
IP66 (IEC); UL508 Type 4X (indoors, with Y92S-29 waterproof packing)
Operating Temperature
-10°C to 55°C (no icing or condensation)
Body Color
Black (N1.5); Optional white or light gray front panels available
Reset Methods
External, Front Panel, Programmable
RoHS Compliant
Yes
