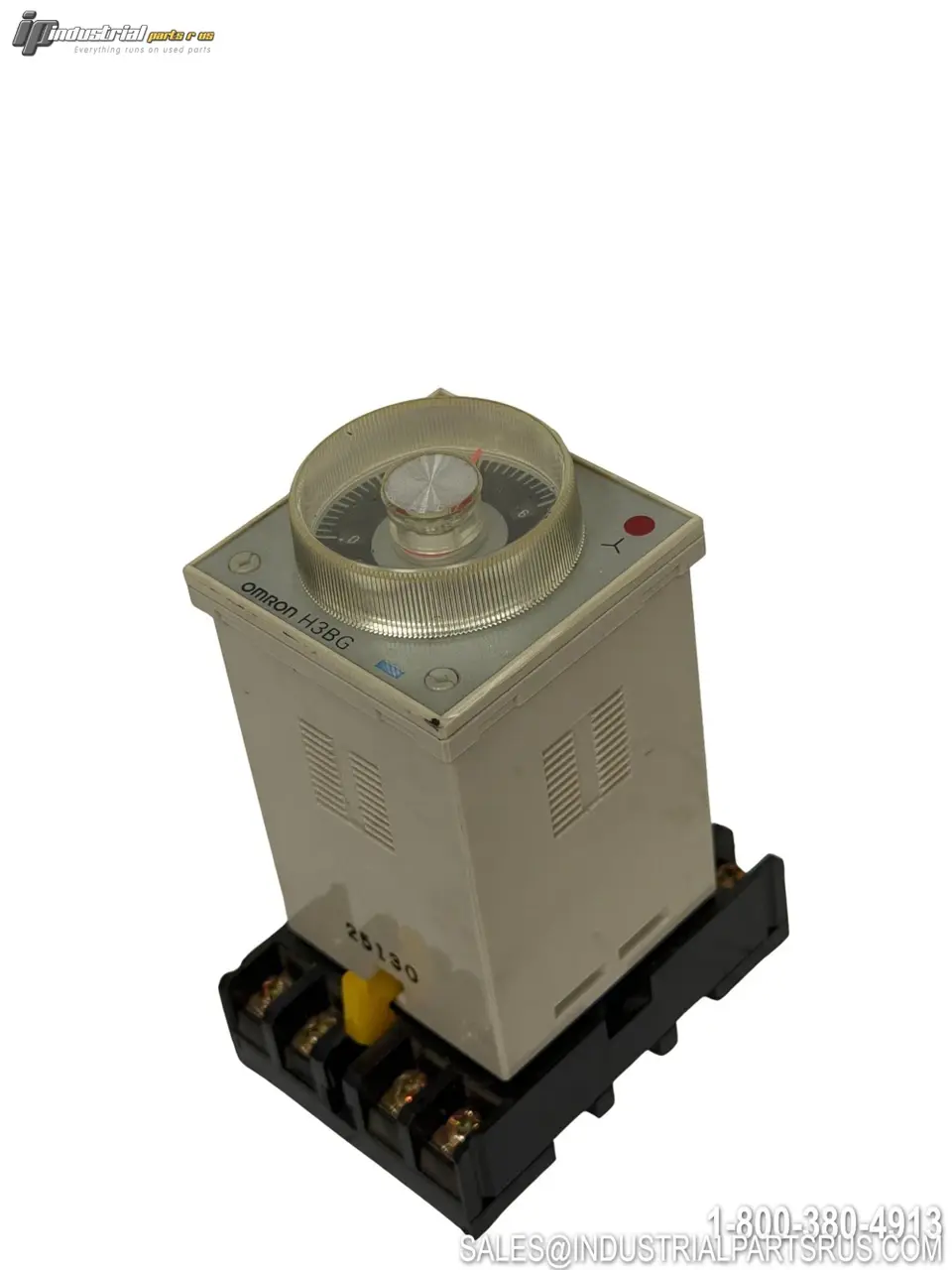

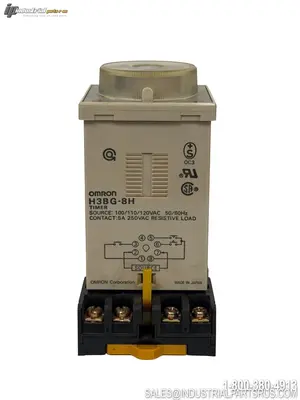

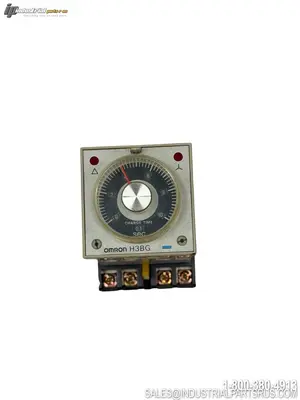

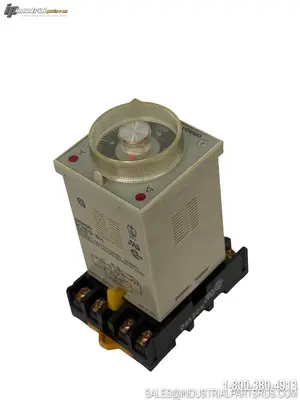

USED OMRON H3BG-8H

The Omron H3BG-8H is a solid-state analog star-delta timer designed for industrial motor starting applications, providing precise timed control of star-to-delta transition sequences. It mounts in a standard 8-pin octal plug-in socket (e.g., P2CF-08) and features both a time-limit output contact and an instantaneous contact output (the "8H" designation), giving it additional flexibility over the standard 8-pin model. This is a legacy Omron H3BG series product, now typically replaced by the H3CR-G series, but remains widely used for compatible motor starter panel applications.
Specification
Value
Brand
Omron
Model / Part Number
H3BG-8H
Product Type
Star-Delta Solid-State Analog Timer
Series / Family
H3BG
Supply Voltage
100/110/120 VAC, 50/60 Hz
Time Range
0.5s – 50s (H3BG-8H 100-120VAC); 0.5s – 120s overall series range
Contact Rating
5A, 250VAC (resistive load)
Output / Contact Type
SPST-NO (time-limit) + instantaneous output contact (switchable)
Number of Pins
8-pin octal
Mounting Type
Plug-in socket (e.g., P2CF-08 octal base)
Operating Mode
Time-limit / self-resetting (single mode)
Timer Function
Star-Delta motor starter timing
Enclosure / Protection
IP40
Panel Size (DIN)
1/16 DIN — 48 mm H x 48 mm W x 93 mm D
Power Consumption
Approx. 2.3 W (110VAC); 4.6 VA (1.5W) per datasheet
Insulation Withstand
2 kVAC; impulse withstand up to 4.5 kV
Operating Temperature
-10°C to +55°C
Setting Accuracy
±0.3% F.S. (operating time); ±5% F.S. (setting error)
Star-Delta Transfer Time Accuracy
±25% F.S. +5ms max.
Approvals / Certifications
UL, CSA, CE, CCC
Case Color
Light gray (Munsell 5Y7/1)
Recommended Replacement
H3CR-G8EL (Omron approved substitute)
Compatible Socket
P2CF-08
We warranty all items for 30 days from date of purchase.
