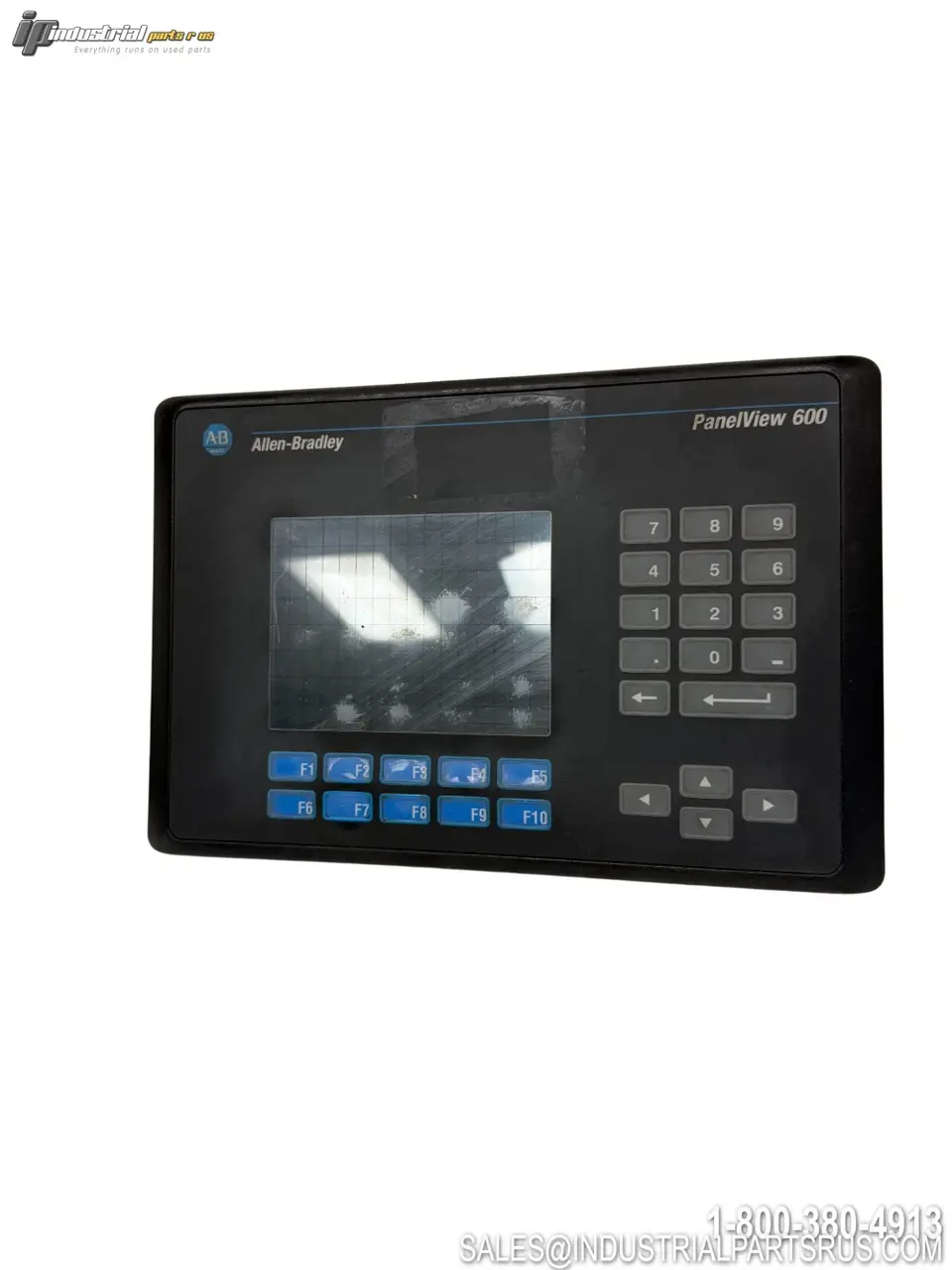

USED ALLEN-BRADLEY 2711-B6C8

The Allen-Bradley 2711-B6C8 is a PanelView 600 Standard Operator Terminal designed for machine-level visualization and control in industrial environments. It features a 5.7-inch color TFT LCD display with dual input via an analog resistive touchscreen (128 touch cells, 1,000,000 actuation rating) and 10 function keys (F1–F10), communicating over Data Highway Plus (DH+) and RS-232. This terminal is compatible with Allen-Bradley PLC platforms including PLC-5, SLC 500, MicroLogix, CompactLogix, and ControlLogix, and is configured using PanelBuilder 32 software. It is a discontinued legacy product still widely used in surplus and replacement applications.
Specification
Value
Brand
Allen-Bradley
Model / Part Number
2711-B6C8
Product Family
PanelView 600 Standard
Platform
PanelView
Series
See label (A, B, or C)
Firmware Revision (FRN)
1.00 to 4.48 (See label)
Display Size
5.7 inches
Display Type
Color TFT LCD
Display Area
115 x 86 mm (4.54 x 3.4 in.)
Resolution
320 x 234 pixels
Input Type
Keypad & Touchscreen
Touchscreen Technology
Analog Resistive
Touch Cells
128
Touchscreen Actuation Rating
1,000,000 presses
Function Keys
10 (F1–F10)
Communication Port 1
Data Highway Plus (DH+)
Communication Port 2
RS-232 (Printer)
Compatible PLCs
PLC-5, SLC 500, MicroLogix, CompactLogix, ControlLogix
Input Voltage
85–264V AC
Input Frequency
47–63 Hz
Application Memory (Runtime)
170 KB
Nonvolatile Memory
240 KB
Backlight Life
50,000 hrs (half-life at 25°C / 77°F)
Backlight Replacement Part
2711-NL5
Real-Time Clock
Yes, battery-backed
Clock Battery Replacement
2711-NB3 or 2711-NB4
ATA Memory Card Support
Yes
Screen Security
Yes – up to 16 passwords/users
Operating Temperature
0 to 50°C (32 to 122°F)
Storage Temperature
-25 to 70°C (-13 to 158°F)
Enclosure Rating
NEMA 4X (IP65) – front face
Mounting Type
Panel Mount
Configuration Software
PanelBuilder 32
Communication Cable
2711-NC14
Product Lifecycle Status
Discontinued / Obsolete
Shipping Weight
6 lbs
Shipping Dimensions
14 x 11 x 8 inches
We warranty all items for 30 days from date of purchase.
