USED PRO-FACE GP37W2-BG41-24V

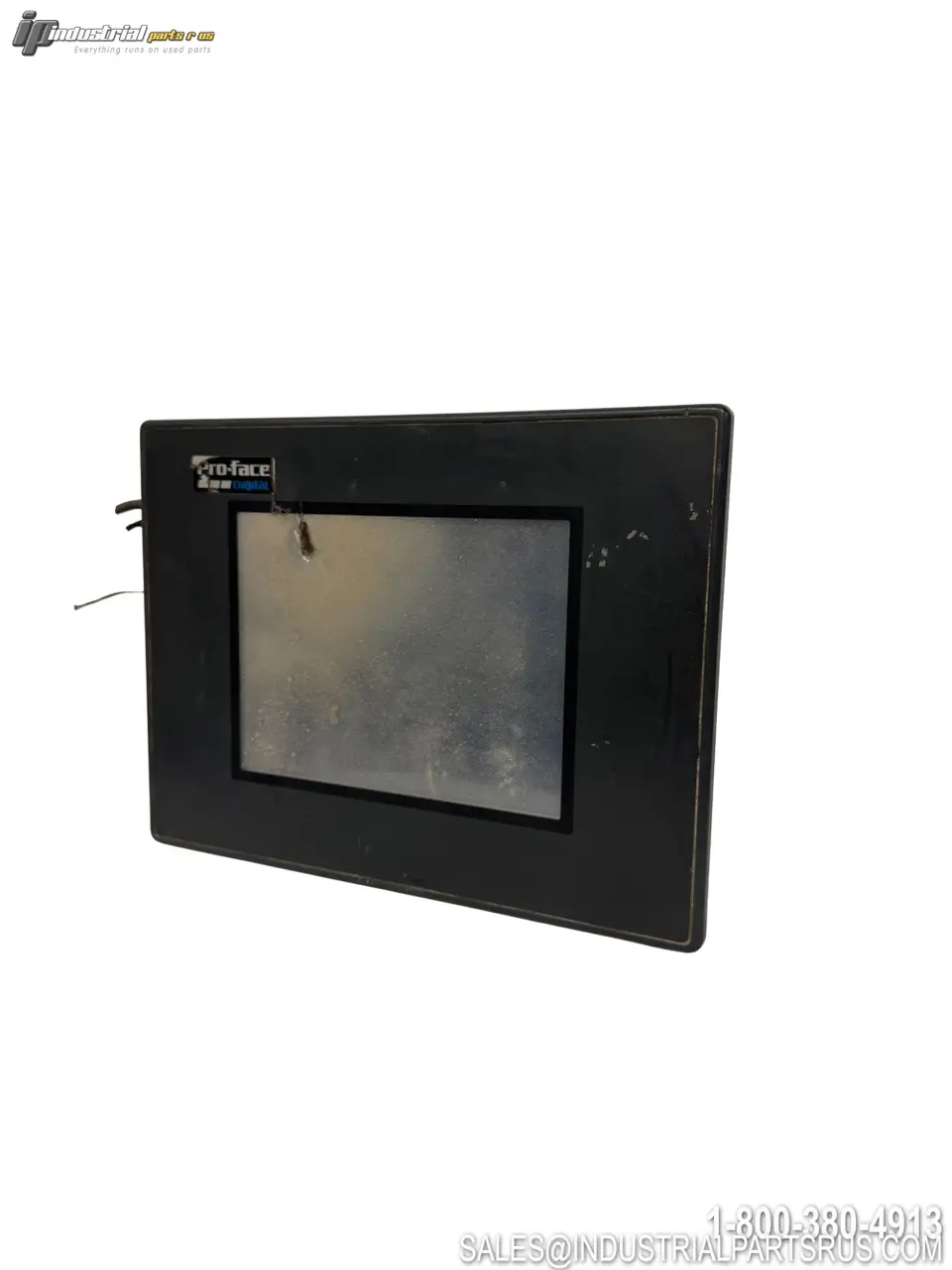

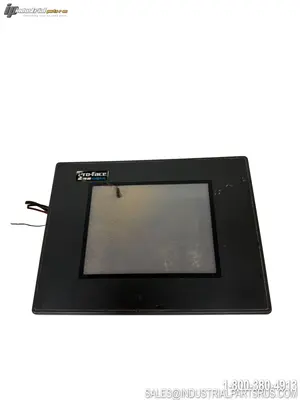

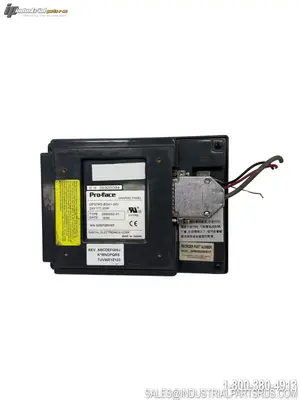

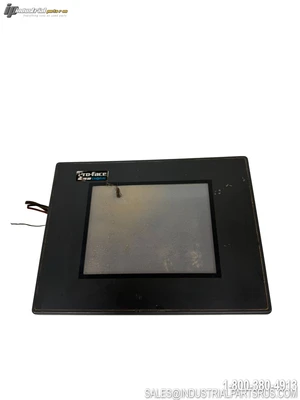

The Pro-Face GP37W2-BG41-24V (GP-37W2B) is a 5.7-inch industrial HMI touch screen operator interface from the GP-37W2 Series. It features a blue-mode monochrome LCD display with 320x240 pixel resolution and is powered by 24VDC, making it suitable for a wide range of industrial automation applications including machine monitoring, tank level display, on/off status, and event management. The unit communicates via RS-232C/RS-422 serial ports and is supported by Pro-face's GP-PRO 03 HMI development software.
Specification
Value
Brand
Pro-Face
Model / Part Number
GP37W2-BG41-24V
UL Registration Model
2880052-01
Series
GP-37W2 Series (GP-37W2B)
Product Type
HMI Touch Panel / Operator Interface
Display Size
5.7 Inch
Display Type
Blue-Mode Monochrome LCD (8-shade)
Display Resolution
320 x 240 pixels (QVGA)
Contrast Adjustment
8 levels, adjustable via touch panel
Backlight Type
CCFL (Service life: 25,000 hrs at 25°C continuous)
Touch Panel Type
Resistive Film, 1 or 2-point touch, 16x12 keys/screen
Input Voltage (Rated)
DC 24V (Range: DC 20.4V to DC 27.6V)
Power Consumption
20W or less
Allowable Voltage Drop
2ms or less
Insulation Resistance
20 MΩ or higher at DC 500V
Voltage Endurance
AC 1000V 10mA for 1 minute
Communication Ports
RS-232C / RS-422 (Asynchronous, 2400 to 115.2 Kbps)
Serial Data Format
Data: 7 or 8 bits; Stop: 1 or 2 bits; Parity: None/Odd/Even
Tool/Barcode Port
Program download port (doubles as barcode reader input)
Backup Memory
96KB (Lithium battery-backed)
Operating Temperature
0°C to 50°C
Operating Humidity
20% RH to 85% RH (no condensation)
Atmospheric Pressure
800 to 1114 hPa (up to 2000m elevation)
ESD Immunity
6kV (IEC 61000-4-2 Level 3)
Enclosure Rating
IP65f (JEM 1030), NEMA 250 Type 4X/12 (front face)
Cooling Method
Natural Air Circulation
External Dimensions (W x H x D)
207mm x 157mm x 58mm (8.17" x 6.18" x 2.28")
Weight
1.1 kg (2.4 lbs) or less
Grounding Requirement
100 Ω or less
Programming Software
GP-PRO 03
Certifications
UL, cUL (CSA), CE
Industrial Classification
Class A Industrial Device
Manufacturer
Pro-face (Schneider Electric)
End of Sales
September 30, 2013 (Discontinued)
We warranty all items for 30 days from date of purchase.
