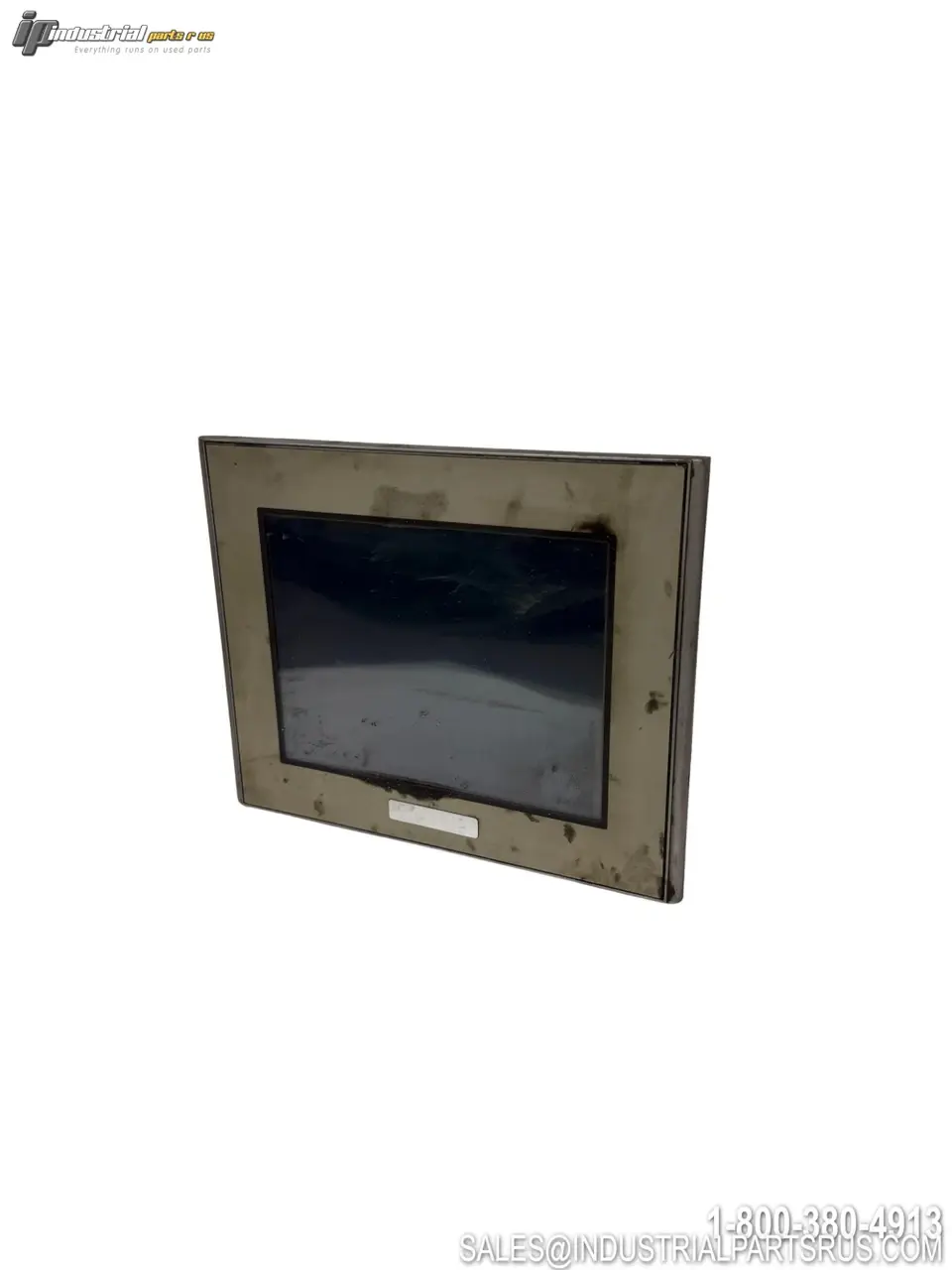

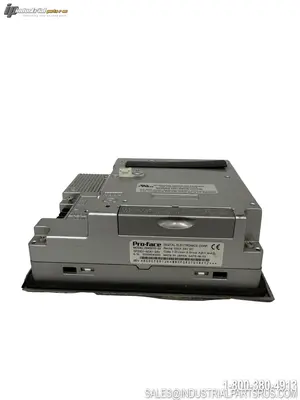

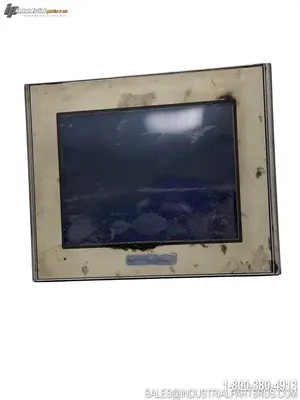

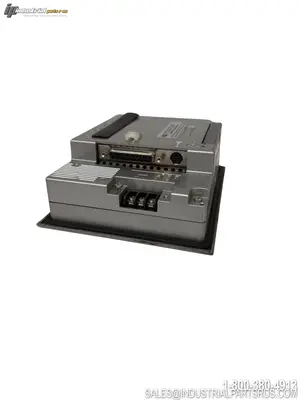

USED PRO-FACE 2980070-03

The Pro-Face GP2301-SC41-24V is an industrial Human-Machine Interface (HMI) touch panel from the GP2000 Series, designed for panel-mount operator interface applications. It features a 5.7-inch STN color LCD with 320×240 pixel resolution capable of displaying up to 64 colors, powered by 24VDC. This unit includes an RS-232C/RS-422 configurable serial interface (25-pin D-sub), a secondary RS-232C tool/programming connector (8-pin mini-DIN), and a CompactFlash card slot for data storage and program transfer.
Specification
Value
Brand
Pro-Face
Model / Part Number
GP2301-SC41-24V
UL Registration Model
2980070-03
Global Code
PFXGP2301SD
Product Series
GP2000 Series
Product Type
HMI Touch Panel (Operator Interface)
Display Type
STN Color LCD
Screen Size
5.7 inch
Resolution
320 × 240 pixels (QVGA)
Display Colors
64 colors with 3-speed blink
Effective Display Area
115.2 mm (W) × 86.4 mm (H)
Backlight
CCFL, 4 adjustable brightness levels
Contrast Adjustment
8 levels
Input Voltage
24VDC
Rated Voltage Range
19.2VDC to 28.8VDC
Rated Current
0.92A
Power Consumption
22W or less
Inrush Current
30A or less
Allowable Voltage Drop
10ms or less
Voltage Endurance
AC 1,000V 20mA for 1 minute (between charging and FG terminals)
Insulation Resistance
20 MΩ or higher at DC 500V (between charging and FG terminals)
Application Memory
1 MB Flash FEPROM
Backup Memory
128 KB SRAM (Lithium Battery backed)
Serial Interface (COM1)
RS-232C/RS-422 configurable, 25-pin D-sub, 2400–115,200 bps
Tool / Programming Port
RS-232C, 8-pin mini-DIN, 2400–38,400 bps
CF Card Interface
1 slot (CompactFlash)
Network / Ethernet Interface
Not available (no built-in Ethernet on -01 variant)
Expansion Interface
Not available on this model
Touch Panel Type
Analog resistive matrix
External Dimensions
171 mm (W) × 138 mm (H) × 60 mm (D)
Weight
1.2 kg or less
Operating Temperature
0°C to +50°C
Backup Battery Type
Lithium Battery
Certifications
UL, CE (EN55011 Class A, EN61000-6-2), Class 1 Division 2 Groups A,B,C,D
End of Sales
2013/09/30 (Discontinued)
Software
GP-PRO/PBIII C-Package (for Windows)
We warranty all items for 30 days from date of purchase.
