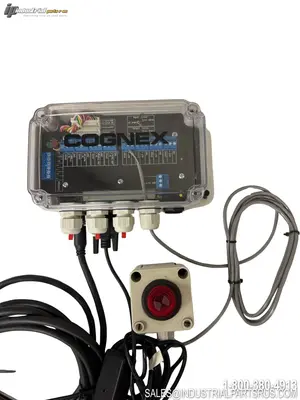

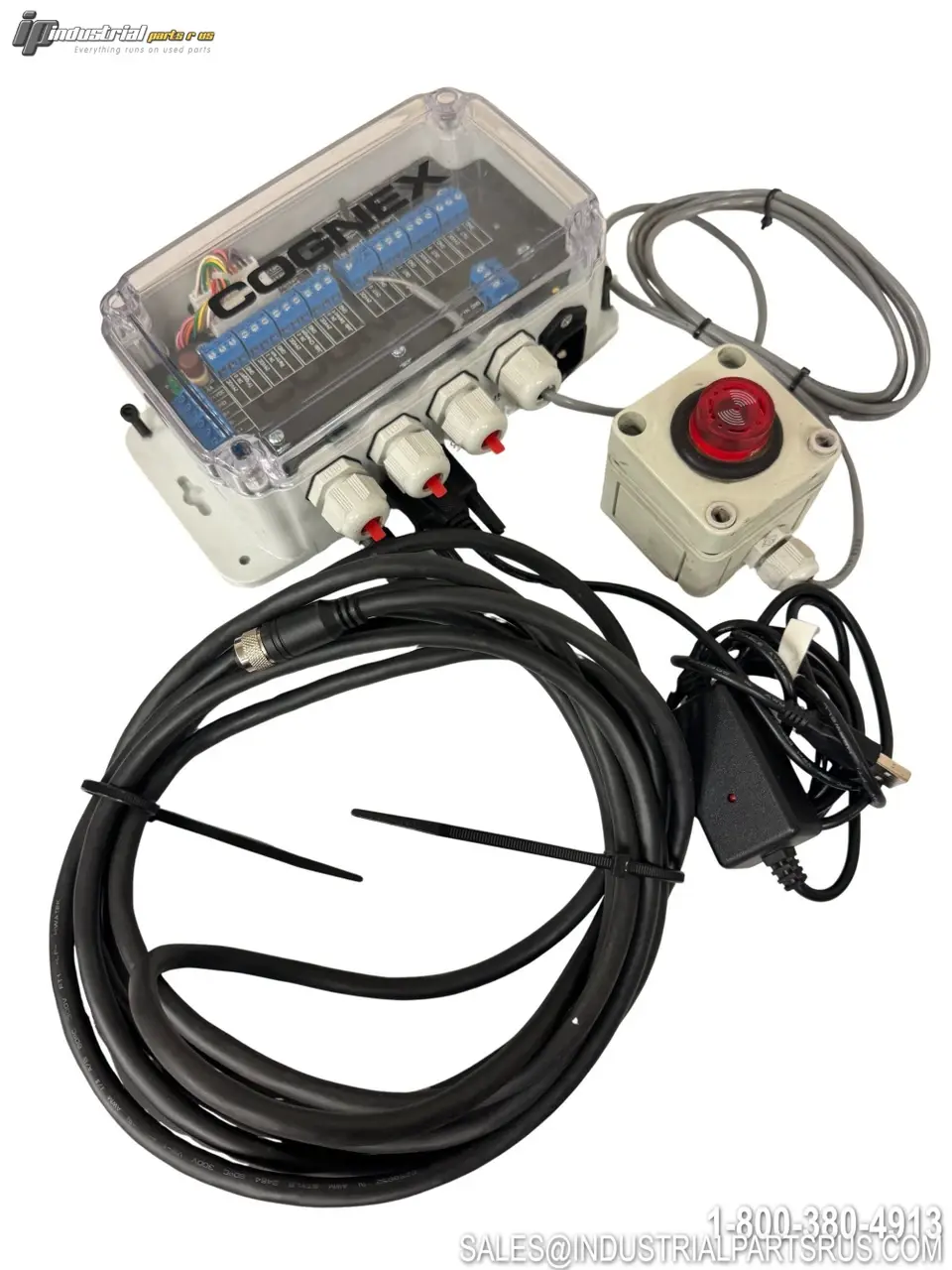

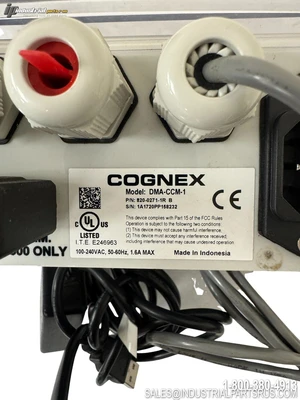

USED COGNEX DMA-CCM-1

The Cognex DMA-CCM-1 is a Single Camera Connection I/O Module designed for use with Cognex DataMan barcode readers and In-Sight vision systems. It connects directly to Cognex readers via a standard M12 I/O cable and breaks out all available reader I/O to pluggable screw terminal blocks for easy field wiring. The module includes a self-contained 24 VDC power supply capable of powering a typical system comprising a reader, sensors, and external illumination. All I/O signals are digital; RS-232 serial communication is provided for host/PC connectivity.
Specification
Value
Brand
Cognex
Model / Part Number
DMA-CCM-1
Internal P/N
820-0271-1R
Product Type
I/O Module (Single Camera Connection Module)
Compatible Series
DataMan 50, DataMan 300, DataMan 302, DataMan 303, DataMan 503, Checker 4G, In-Sight 7000
Input Voltage Range
88–264 VAC
Typical Input Current
1.3 A @ 115 VAC / 0.8 A @ 230 VAC
DC Output Voltage
24 VDC
DC Output Current (Average)
1.75 A (42 W)
DC Output Current (Peak)
2.2 A
Short Circuit / Overload Protection
Yes
Terminal Fuse (per 24 VDC terminal)
0.20 A self-resetting
Digital Inputs
4
Digital Outputs
4 x 24 VDC
Communication Protocol
RS-232
Reader Connection
12-pin M12 connector
Host / PC Connection
9-pin D-Sub connector
Field Wiring Connection
PG11 cable gland x4; pluggable screw terminal blocks
AC Power Cord Connection
Standard IEC C14
Enclosure / IP Rating
IP65
Operating Temperature
0°C to 40°C
Weight
2.2 lbs
Certifications
CE, UL, cUL, FCC, IEC60068-2-27, IEC60068-2-6, IEC60068-2-64, EN61373, EN55022, EN55024, EN60825-1, EN60950, ICES003, J55022
Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
