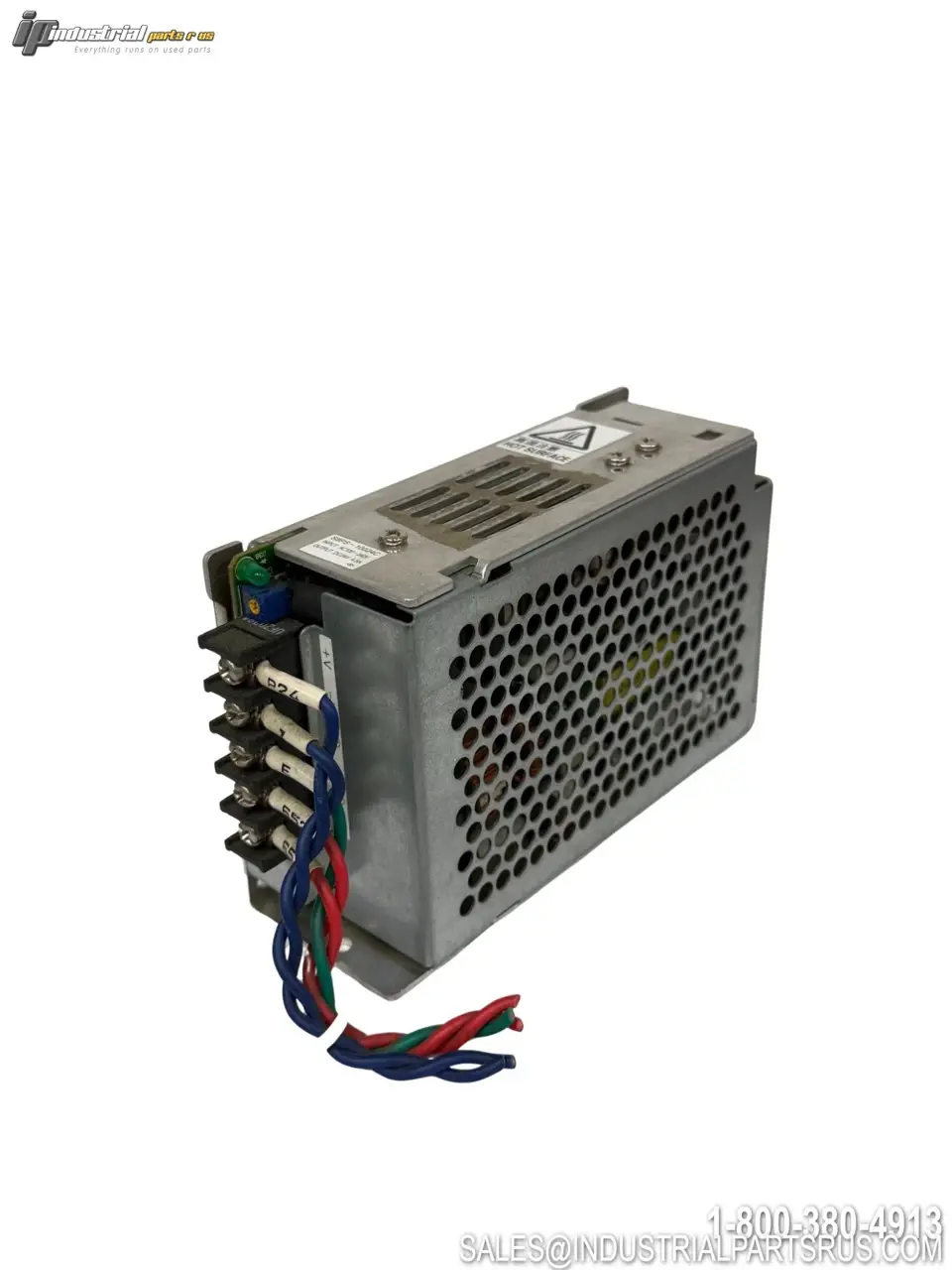

USED OMRON S8PS-10024C

The Omron S8PS-10024C is a 100-watt covered-type switch mode power supply designed for industrial automation applications. It accepts a universal input voltage of 100–240 VAC at 50/60 Hz and delivers a regulated 24 VDC output at 4.5 A. The unit ships with a front-mounting bracket and is also available with an optional DIN rail mounting bracket. It features an output voltage adjustment (±10%), DC ON indicator LED, and built-in overcurrent protection.
Specification
Value
Brand
Omron
Model / Part Number
S8PS-10024C
Series
S8PS
Product Type
Switching Power Supply
Configuration
Covered Type with Front-Mounting Bracket
Input Voltage
100–240 VAC
Input Frequency
50/60 Hz
Input Current
1.8 A (max)
Output Voltage
24 VDC
Output Current
4.5 A
Rated Power
100 W
Output Voltage Adjustment Range
±10% (via V.ADJ trimmer)
Overcurrent Protection
Yes — triggers at 105% of rated load current
Indicators
DC ON (output indicator LED)
Mounting Type
Front Screw Mounting (bracket included); Side Mount; Bottom Mount
Terminal Screws
Five M4 terminal screws
Dimensions (H × W × D mm)
135 × 50 × 145 mm (approx.)
Phase
Single Phase
Product Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
