USED NEMIC-LAMBDA LWT50H-522

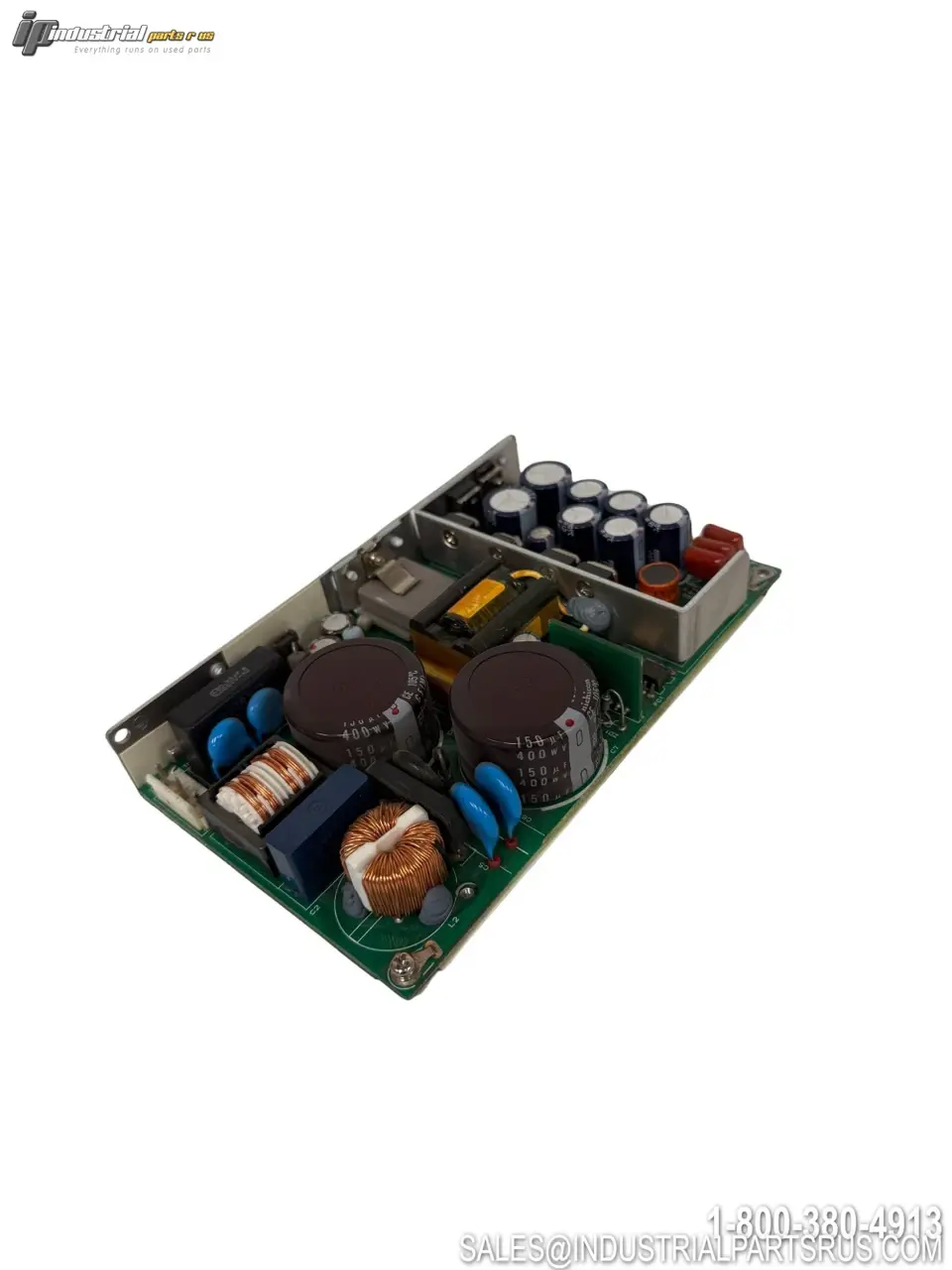

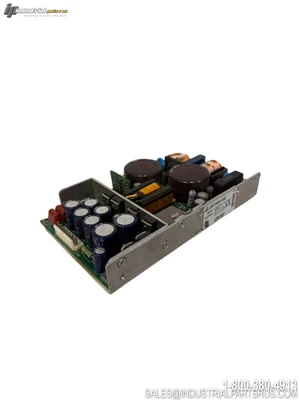

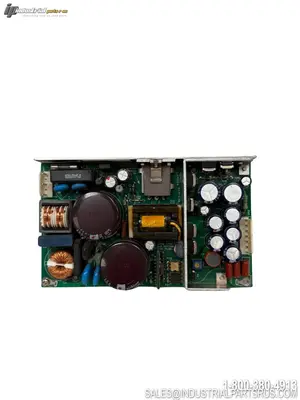

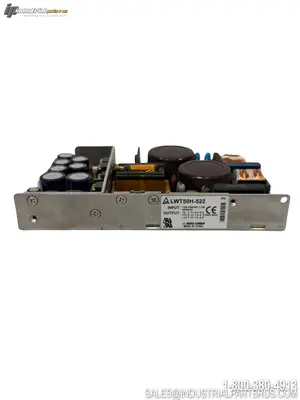

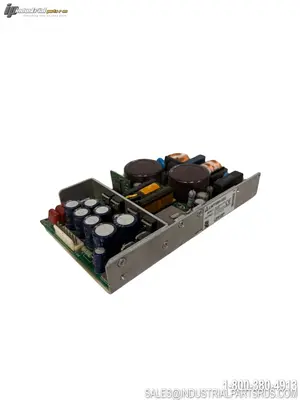

The Nemic-Lambda (TDK-Lambda) LWT50H-522 is a triple-output, open-frame AC-to-DC switching power supply rated at 50W. It accepts a universal AC input range of 85–265VAC and delivers three isolated DC outputs: +5V at up to 8A, +12V at up to 1.5A, and –12V at up to 1A. The unit features a low-profile design of approximately 1 inch (26mm) height, convection cooling, and built-in overvoltage/overcurrent protection, making it well-suited for information devices, communications equipment, and FA control systems.
Specification
Value
Brand
Nemic-Lambda
Model / Part Number
LWT50H-522
Product Type
Switching Power Supply (Open Frame)
Series
LWT-H / LW Series
AC Input Voltage Range
85 – 265 VAC (Universal Input)
DC Input Voltage Range
110 – 350 VDC
Input Frequency
47 – 440 Hz
Input Current (Typical)
1.2A @ 100VAC / 0.7A @ 200VAC
Number of Outputs
3 (Triple Output)
Output 1 (V1)
+5 VDC, 1.0A min – 8.0A max
Output 2 (V2)
+12 VDC, 0.0A min – 1.5A max
Output 3 (V3)
-12 VDC, 0.0A min – 1.0A max
Total Output Power
50W
Efficiency (Typical)
72%
Cooling Method
Convection (Natural Air)
Operating Temperature
0°C to +60°C (Derated above +40°C)
Load Derating
100% @ 0–40°C; 80% @ 50°C; 60% @ 60°C
Isolation Voltage (I/O)
3 kVAC for 1 minute
Isolation Voltage (Input–FG)
2 kVAC for 1 minute
EMI Compliance
FCC Class B, VDE Class B
Protection Features
Overvoltage Protection, Overcurrent Protection
Package / Construction
Open Frame, Board-Mounted
Mounting Type
Chassis Mount
Profile Height
Approx. 1 inch (26mm)
Weight
400g
Connector Type
JST (Japan Solderless Terminal)
Output Isolation
CH1 (5V) isolated from CH2 and CH3 (±12V)
Product Status
Obsolete / No Longer Manufactured
We warranty all items for 30 days from date of purchase.
