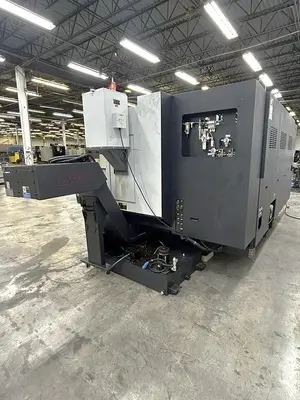

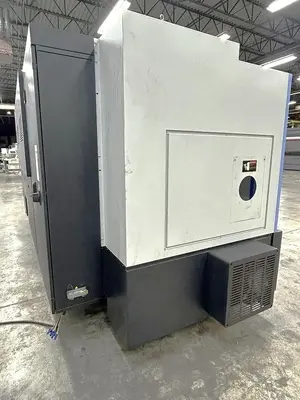

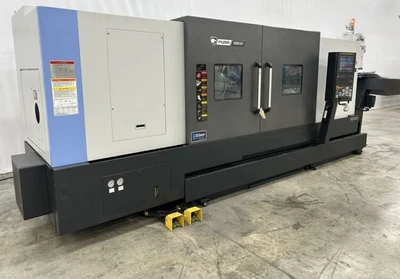

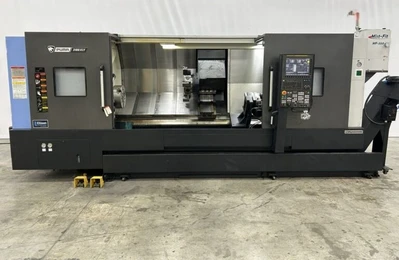

USED 2022 DN SOLUTIONS PUMA 3100 XLY

Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

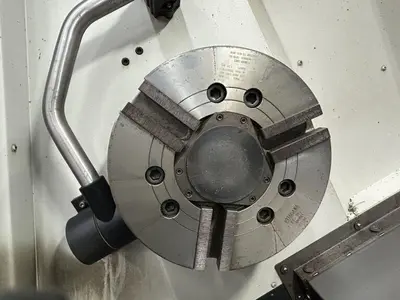

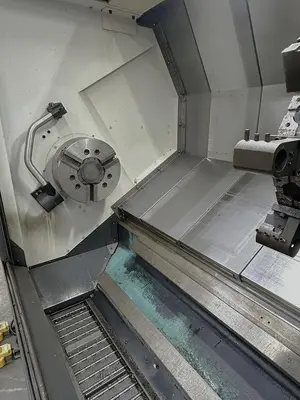

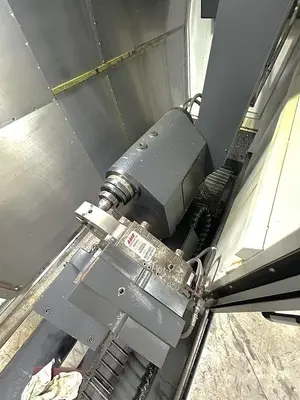

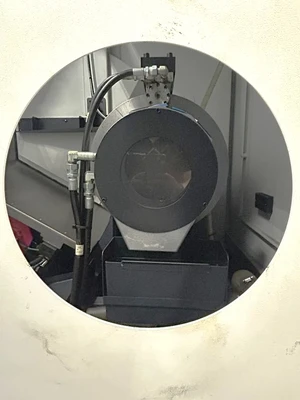

3 Jaw Hydraulic Chuck
Tool Presetter

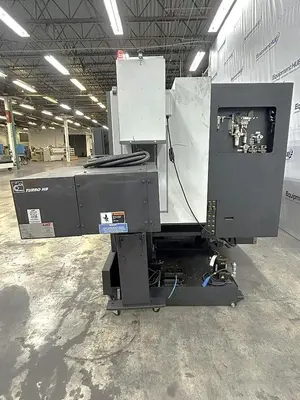

Chip Conveyor

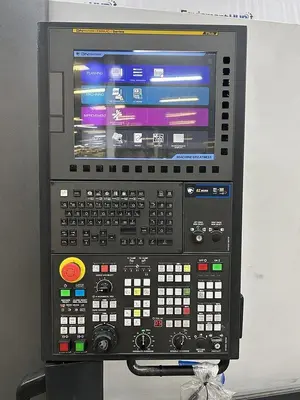

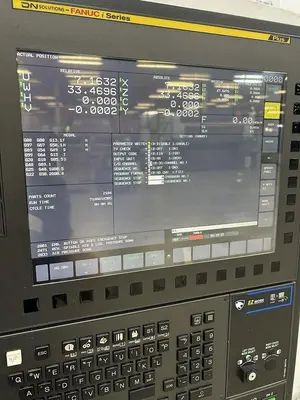

Fanuc i Plus Control with EZ Work

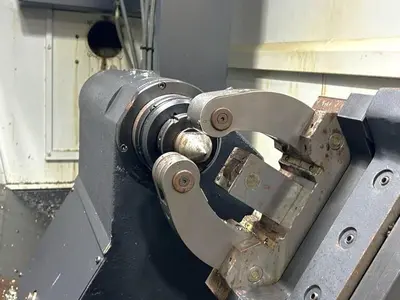

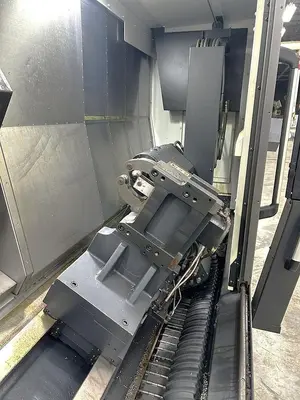

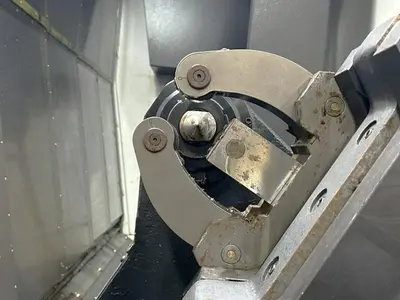

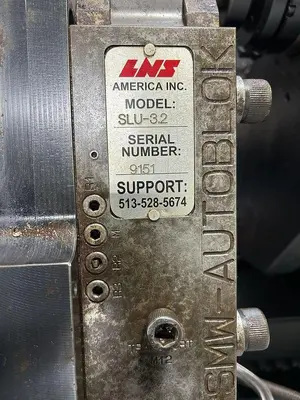

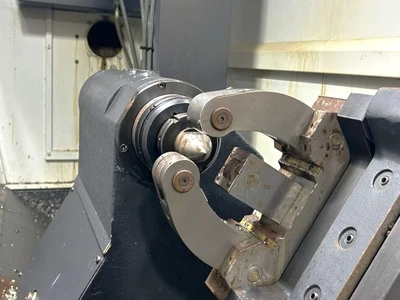

LNS America Model SLU-3.2 Self Centering Steady Rest (1.97" - 7.87" range) on Programmable Slide
Mist Fit MF-550 Mist Collector
Extra Long Bed Design Option

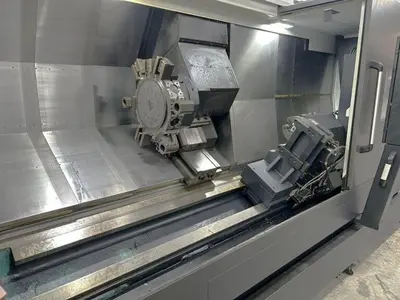

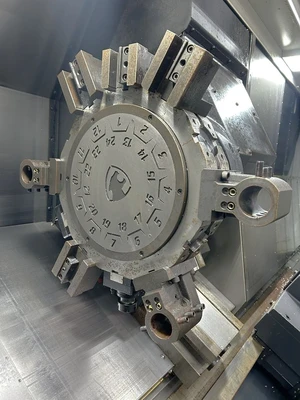

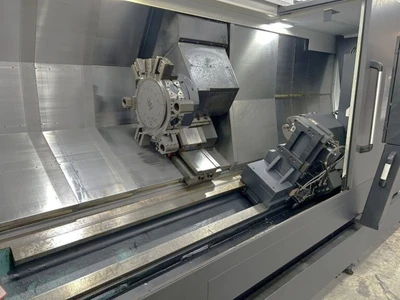

24 Station Turret
Programmable Tailstock with MT #4 Built in Dead Center
Rigid Tapping
Coolant System with Tank & Pump
PCMCIA Card Interface
Ethernet Interface
RS 232 Port Interface
Tool Load Monitoring System
3 Color Signal Light Tower
Boxed Ways
30 Degree One Piece Cast Slant Bed
All Available Static & Live Tooling
Wired 220V Electrics

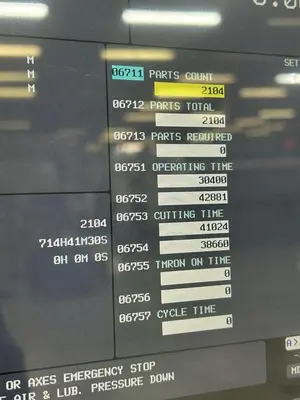

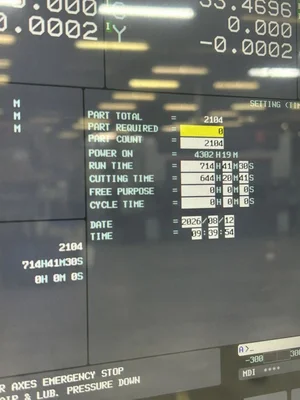

**ONLY 1,328 Cutting Hours (photo shows machine use in minutes)**

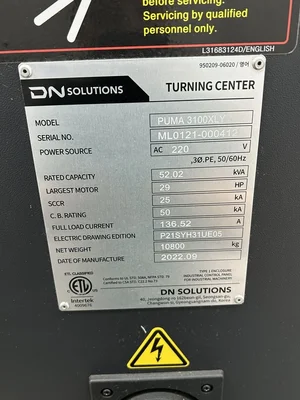

**Machine manufactured new in October of 2022**

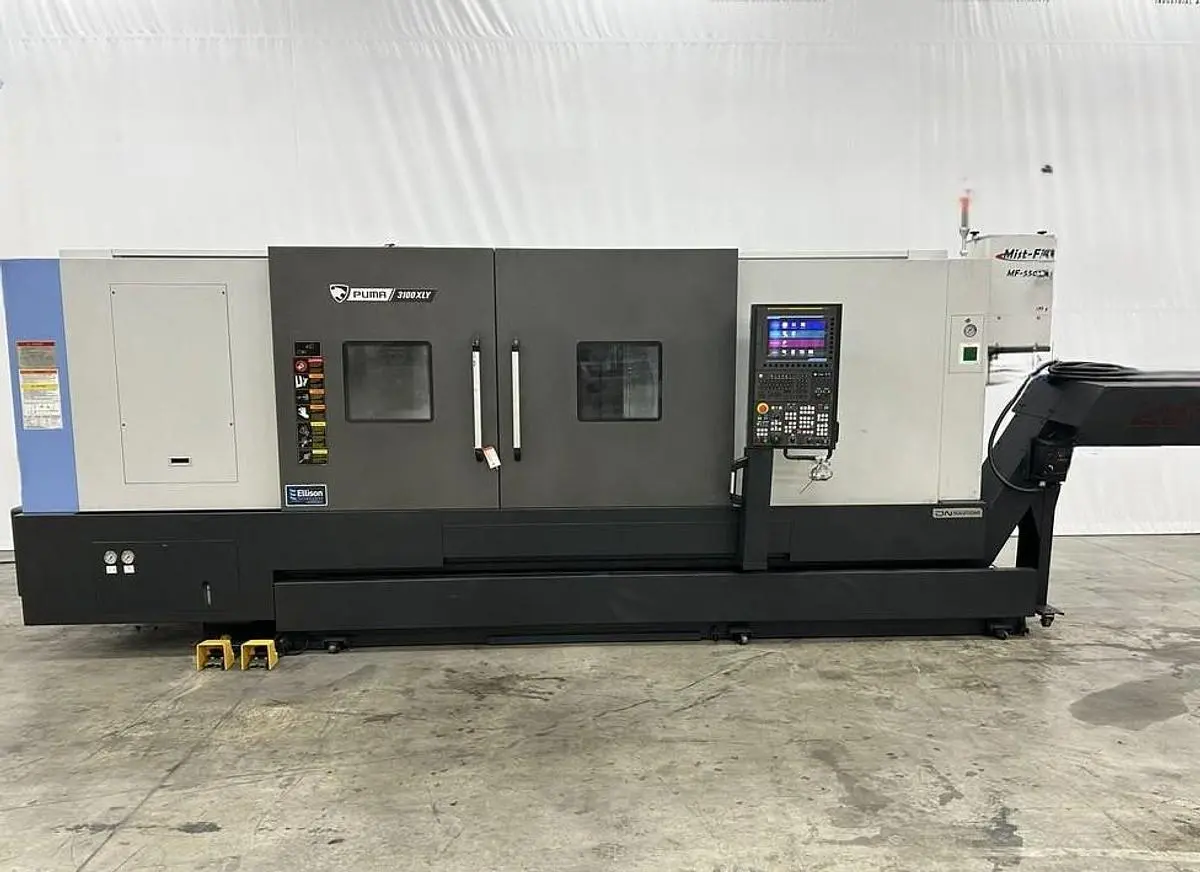

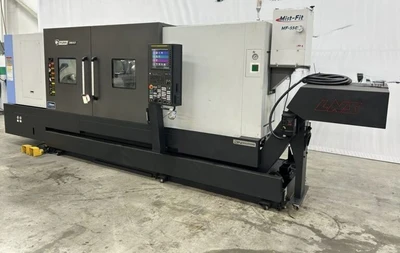

The 2022 DN Solutions Puma 3100 XLY is a versatile CNC lathe equipped with live milling capabilities and a Y-axis, designed for precision and efficiency. This used machine offers an extra-long bed with a steady rest and tailstock, providing enhanced support for your machining tasks. It features a 4" bar capacity and has only 1328 cutting hours, ensuring it is still in excellent condition for high-performance operations.

The Puma 3100 XLY operates with a Fanuc i Series Plus Control, offering a reliable and user-friendly interface. The lathe is equipped with a 3 Jaw Hydraulic Chuck and boasts a maximum swing over bed of 33.46", a cutting diameter of 16.53", and a machining length of 83.66". With a maximum spindle speed of 2,800 RPM powered by a 30 HP motor, along with a rotary tool speed of 5,000 RPM facilitated by a 10 HP motor, the machine supports efficient cutting processes.

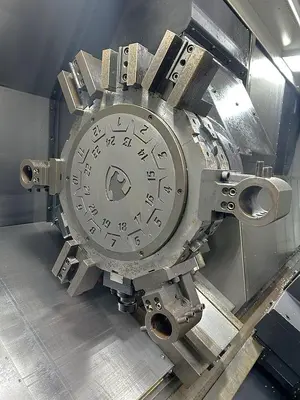

For additional functionality, the CNC lathe offers 11.54" of X-axis travel, 5.12" of Y-axis travel, and 86.22" of Z-axis travel. The C-axis spindle allows for rotation precision down to .001 degrees. Its robust design includes a 12-sided, 24-station turret, enabling a variety of tool changes, while rapid traverse rates reach 1181 IPM on the X and Z axes and 394 IPM on the Y axis. The machine’s large dimensions and weight of 23,800 lbs underscore its durable construction, ready to tackle demanding machining tasks.
