Used

USED 1978 MAXMILL YC-1 1/2VA

Ontario, Canada
Asking Price
USD $1,083.23
1 available
304Listings|147Followers
Overview
Vertical Mills

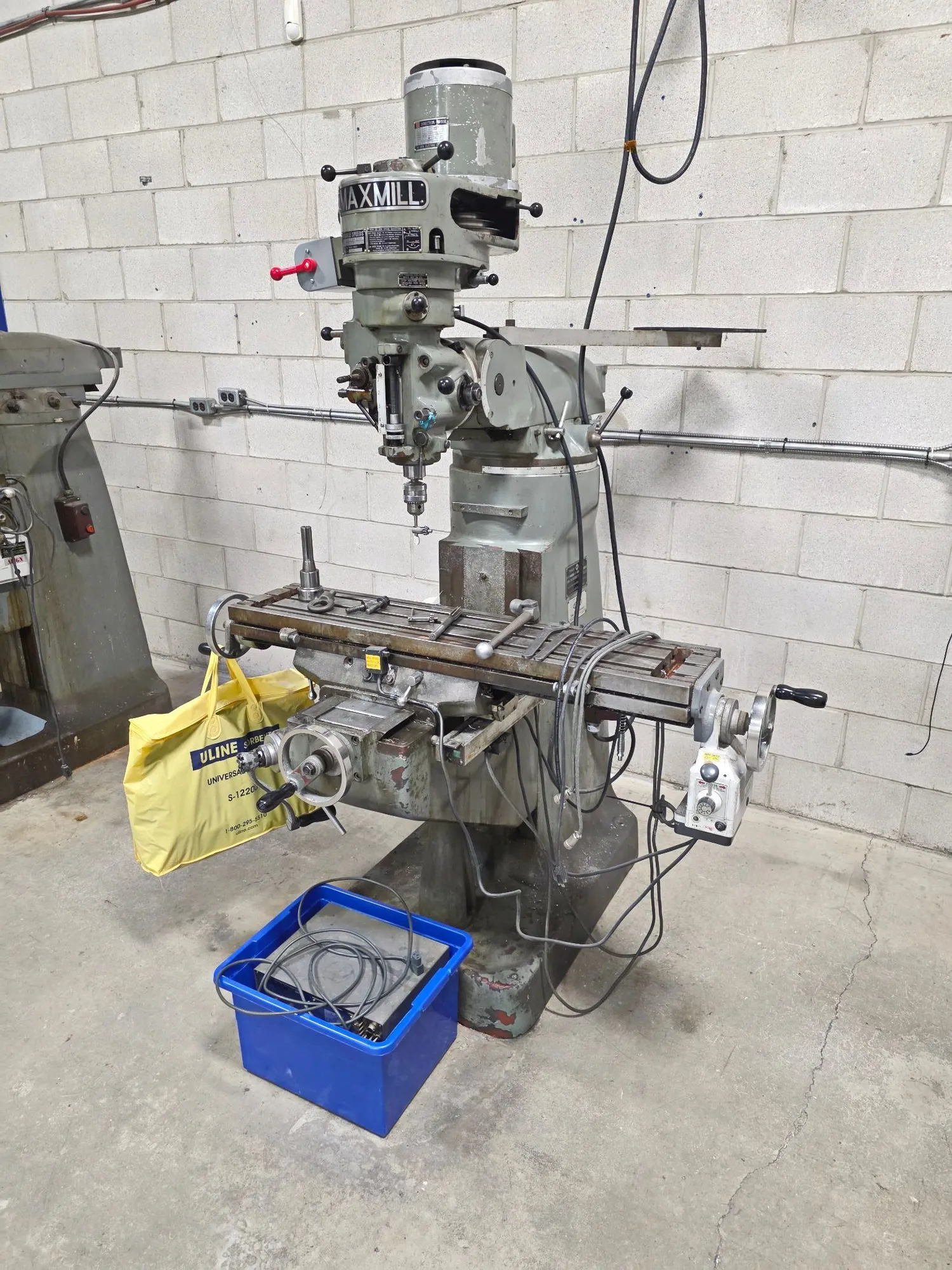

1978 MaxMill YC-1 1/2VA Vertical Knee Mill, Step-Pulley Vertical Head, Automatic Quill Feed, Tilting Head, X-Axis Power Table Feed, Quill Depth Scale, One-Shot Lubrication

Specs
Table-W
9"
228.6 mm
Table-L
42"
1,066.8 mm
X-Axis
30"
762 mm
Y-Axis
12"
304.8 mm
Z-Axis
16"
406.4 mm
Power
2 hp
1.5 kW
RPM
2,720 RPM
2,720 RPM
Taper
R8
R8
Quill Travel
5"
127 mm
Made In
Taiwan
Taiwan
Dimensions
64″ X 64″ X 84″
64″ X 64″ X 84″
Weight
2,500 lb
2,500 lb
Equipped With

Step-pulley vertical head
Tilting head
Automatic quill feed
Align x-axis power table feed
Knee & saddle hand feeds
Quill depth scale
Spindle brake / reversing switch
One-shot lubrication
