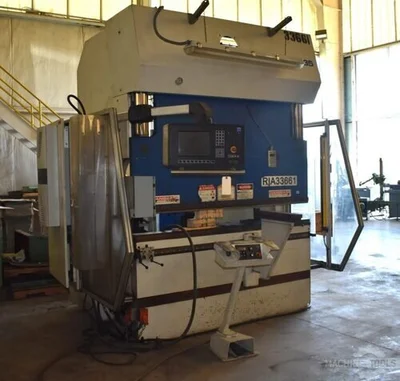

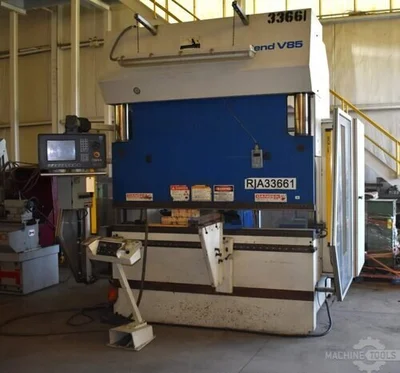

USED 2001 TRUMPF V85X

General Info

Stock #: 153260038
Brand: Trumpf
Model: V85X
Year: 2001

Specifications

Tonnage: 93.67 T
Type: HYD
Overall Length: 6.67'
Between Housings: 5.83'
Stroke: 14.37"
# Axis: 6
Weight: 19910
Maximum Bending Length: 80"
Distance Between Housings: 70"
Stroke Length (Y-Axis): 14.37"
Open Height: 21"
Throat Depth: 16.5"
Bed Width: 4.7"

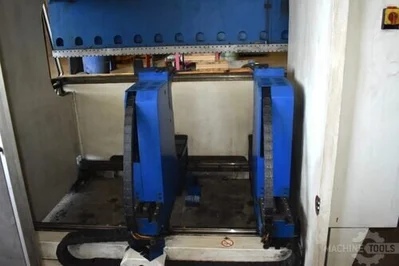

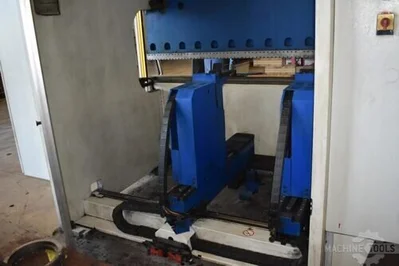

Travel In X-Axis (Back Gauge In/Out): 23.6"
Travel In R-Axis (Back Gauge Up/Down): 9.8"
Travel Speed In X1, Maximum: 2358 IPM
Travel Speed In R1, Maximum: 780 IPM
Travel Speed In Z1, Maximum: 2358 IPM
Rapid Speed, Y-Axis: 520 IPM
Press Speed, Y-Axis: .24 to 24 IPM
Return Speed, Y-Axis: 522 IPM
Drive Motor: 15 H.P.

Equipped With
Delem Control W/6-Axis CNC Backgauge, CNC Programmable Crowning, Hydraulic Quick Clamp On Both Upper & Bottom Tool Holders, Adjustable Front Support, Large Quantity Of Dies, Sick "C4000" Light Curtains
