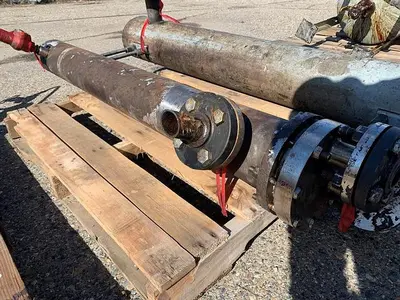

Heat Exchanger, Shell & Tube, 50 SF, S/st, 200 PSI, 600 deg #S743643
Overview
Description

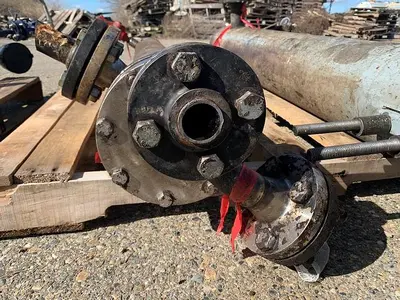

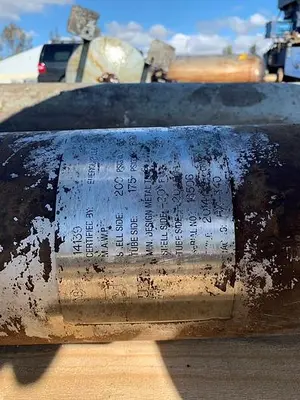

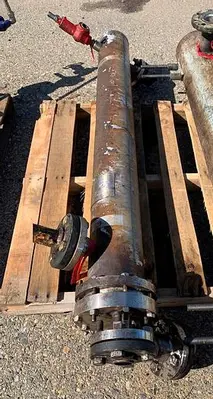

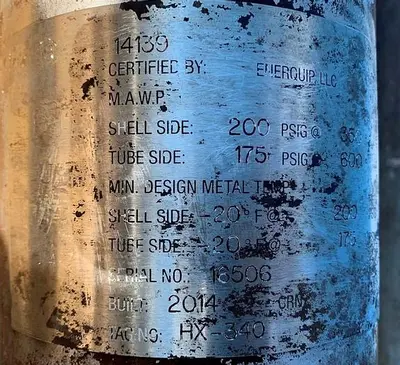

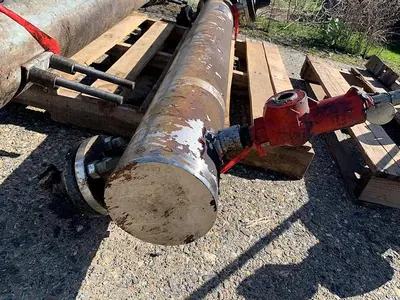

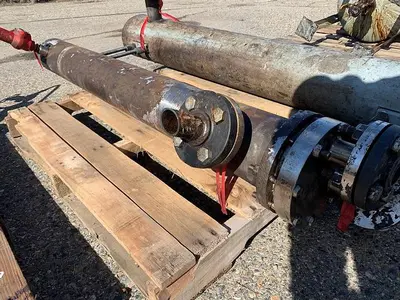

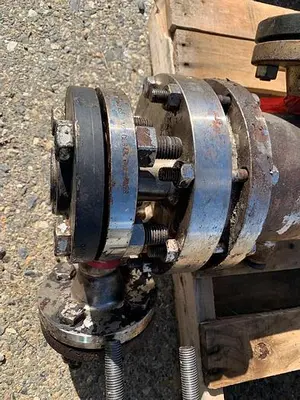

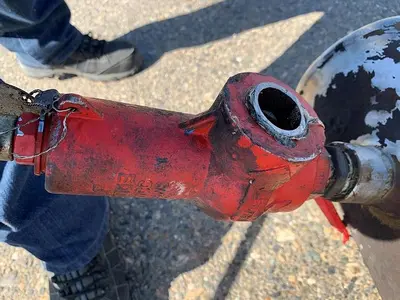

Enerquip stainless steel shell & tube heat exchanger, approximately 50 square feet surface area. Rated for 200 PSI at 350 degrees Fahrenheit to minus 20 degrees Fahrenheit on shell side, 175 PSI at 600 degrees Fahrenheit to minus 20 degrees Fahrenheit tube side. Shell measures 6" diameter x 60" long, approximately 1/2" diameter tubes, 1-1/2" diameter tube feed inlet, 2" diameter shell side connections. Includes relief valve on one end. ASME code constructed. NB# 14139. New in 2014. Tag number HX-340. Serial# 16506.
Specifications
Stock Number: S743643
Manufacturer: Enerquip
Year: 2014
Serial Number: 16506
Square Feet: 50
Tube Measurements: Approximately 1/2" Diameter Tubes, 1-1/2" Diameter Tube Feed Inlet
Number of Tubes: 1
Tube Ratings: 175 PSI at 600 Degrees
Shell Ratings: 200 PSI at 350 degrees
Tube Matirials: Stainless Steel
Basis: FOB
