USED MULTIAX MULTIAX

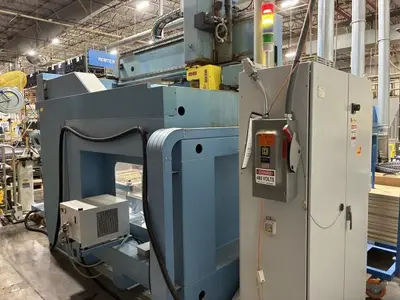

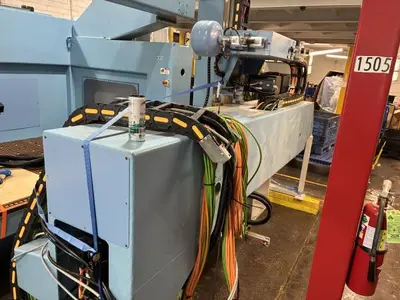

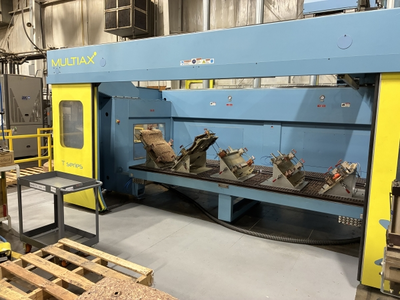

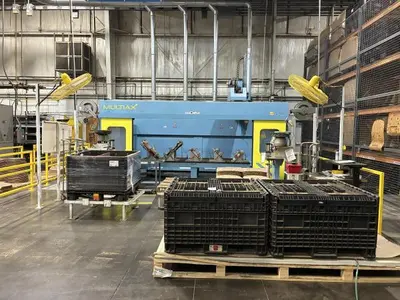

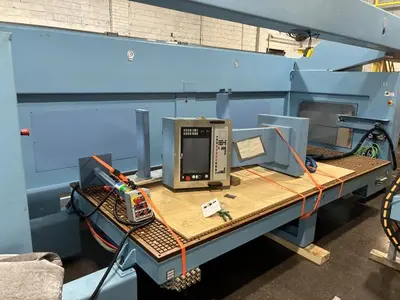

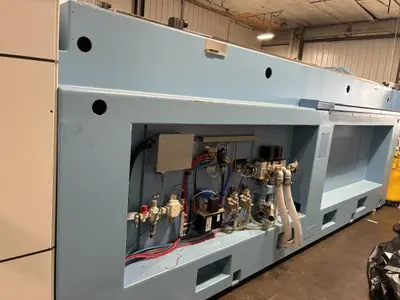

Multiax Model Multiax T Six Axis CNC Machining Center

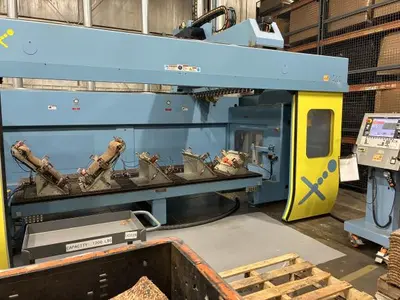

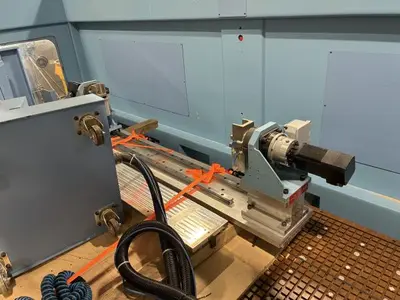

Table Size 3640mm (143.3") X 1540mm (60") with Two Vacuum Zones (Right and Left) 1820mm (72.65") X 1540mm (60")
X Axis 3500 mm (138") Max Speed 84m/min
Y Axis 1800 mm (71") Max Speed 84m/min
Z Axis 900 mm ( 35.4") Max Speed 40m/min
A Axis +/- 120 Degrees Max Speed 30 rpm
C Axis +/- 365 Degrees Max Speed 30 rpm
B Axis 2000 mm (78.74") Max Speed 40 rpm
Electro-Spindle Model HSD ES779 H6161H1551, 10KW (13.5HP) Water Cooled
Spindle Speed up to 24000 rpm
Tool Holder HSK F63
Three Linear Tool Changers

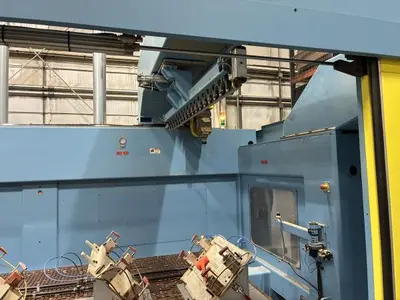

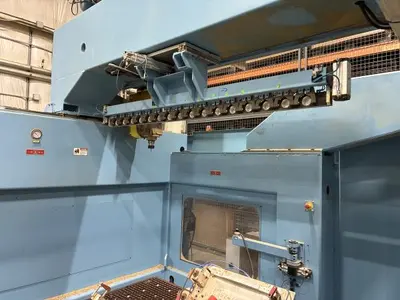

* First Under the Bridge 16 Position 110mm max dia. x 100 mm long
* Second Left Side of Table - 2 Position 160mm max dia. x 400mm long
* Third Right Side of Table - 2 Position 160mm max dia. x 400mm long
Numeric Controller OSAI Open
