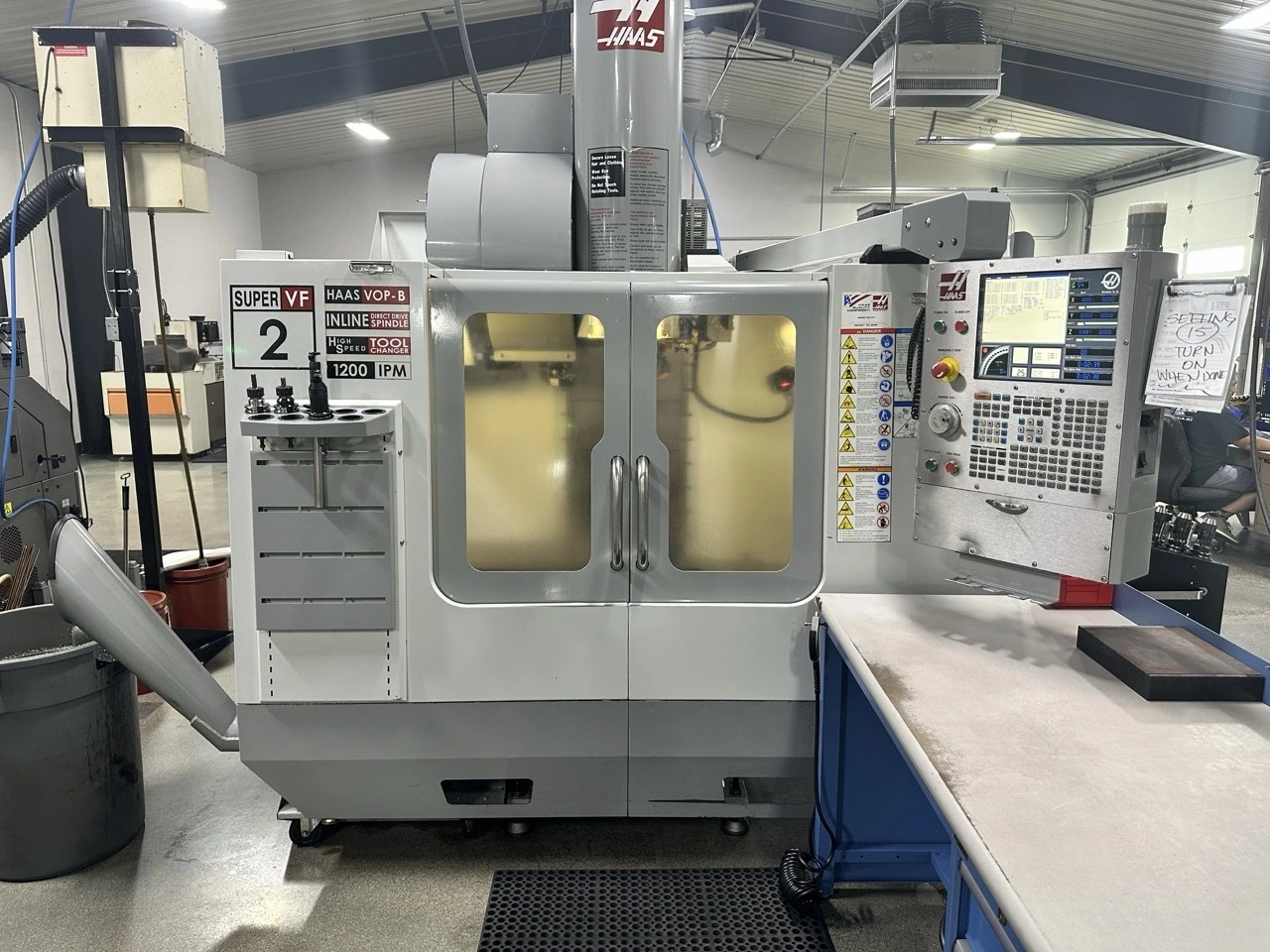

USED 2007 HAAS VF-2SS

Ohio, United States
1,579Listings|478Followers
Overview
Vertical Machining Centers

Used Vertical Machining Center: 36" x 18" table, 12,000 RPM spindle, 30 HP, CAT 40 taper, 24+1 ATC. Equipped with Haas CNC Control, chip auger.

Specs
X
30"
762 mm
Y
16"
406.4 mm
Z
20"
508 mm
Power
30 hp
22.4 kW
RPM
12,000 RPM
12,000 RPM
# ATC
24
24
Taper
CT 40
CT 40
Table-W
14"
355.6 mm
Table-L
36"
914.4 mm
# Axis
3
3
Control
CNC (HAAS)
CNC (HAAS)

Table Size: 36″ x 18″
Max Table Load: 1,500 lbs
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 20″
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT 40
ATC: 24 + 1

Equipped With

Haas CNC Control
Chip Auger
Programmable Coolant
1 MB Memory
Visual Quick Code System
Floppy Disk Drive
Spindle Orientation
4th Axis Drive
Coordinate Rotation and Scaling
Visual Quick Code Probing System
Rigid Tapping
