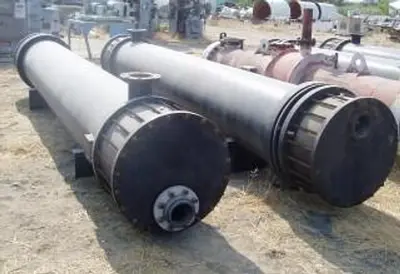

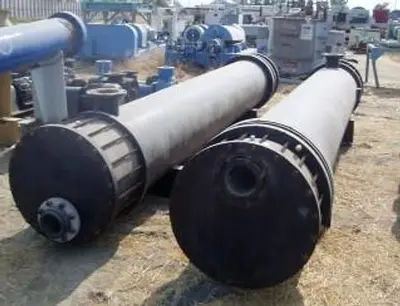

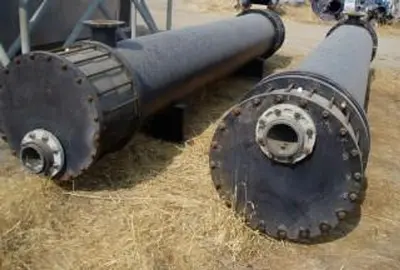

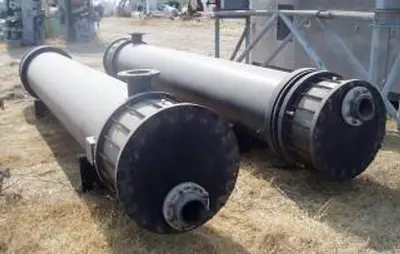

Heat Exchanger, Shell & Tube, 900 SF, Karbate, S734020 #S734020

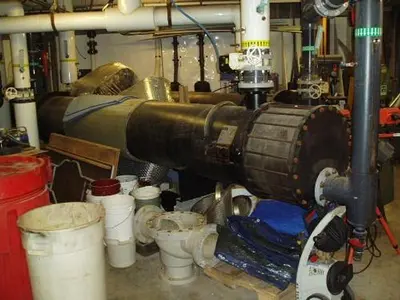

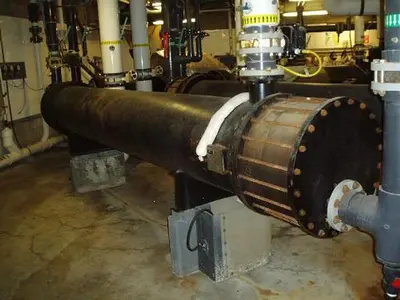

Heat exchangers, shell & tube, approximately 900 sq ft, Karbate. Each unit has (199) tubes, 1 ¼" outside diameter x 168" long, 3/16" gauge. 5 pass tube side, ASME code constructed for 75 PSI @ 338 deg. F shell side and 75 PSI @ 338 deg. F tube side. Union Karbate size 25-168, serial number 4-82N-1027-1,2,3 and 4. New 1982. Excellent condition. Last use, sea water on tube side, chilled fresh water on shell side.

Stock Number: S734020
Manufacturer: Union Karbate
Year: 1982
Square Feet: 900 (Approximately)
Tube Measurements: 1 ¼" Outside Diameter x 168" Long, 3/16" Gauge
Number of Tubes: 199
Tube Ratings: 75 PSI @ 338 Degree
Shell Ratings: 75 PSI @ 338 Degree
Basis: FOB
