USED 2023 KOBELCO SK210
Overview

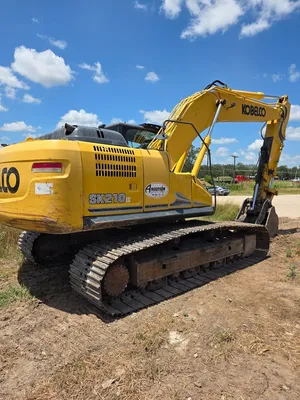

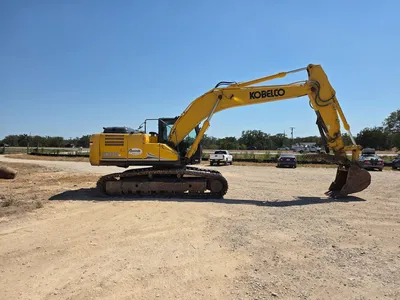

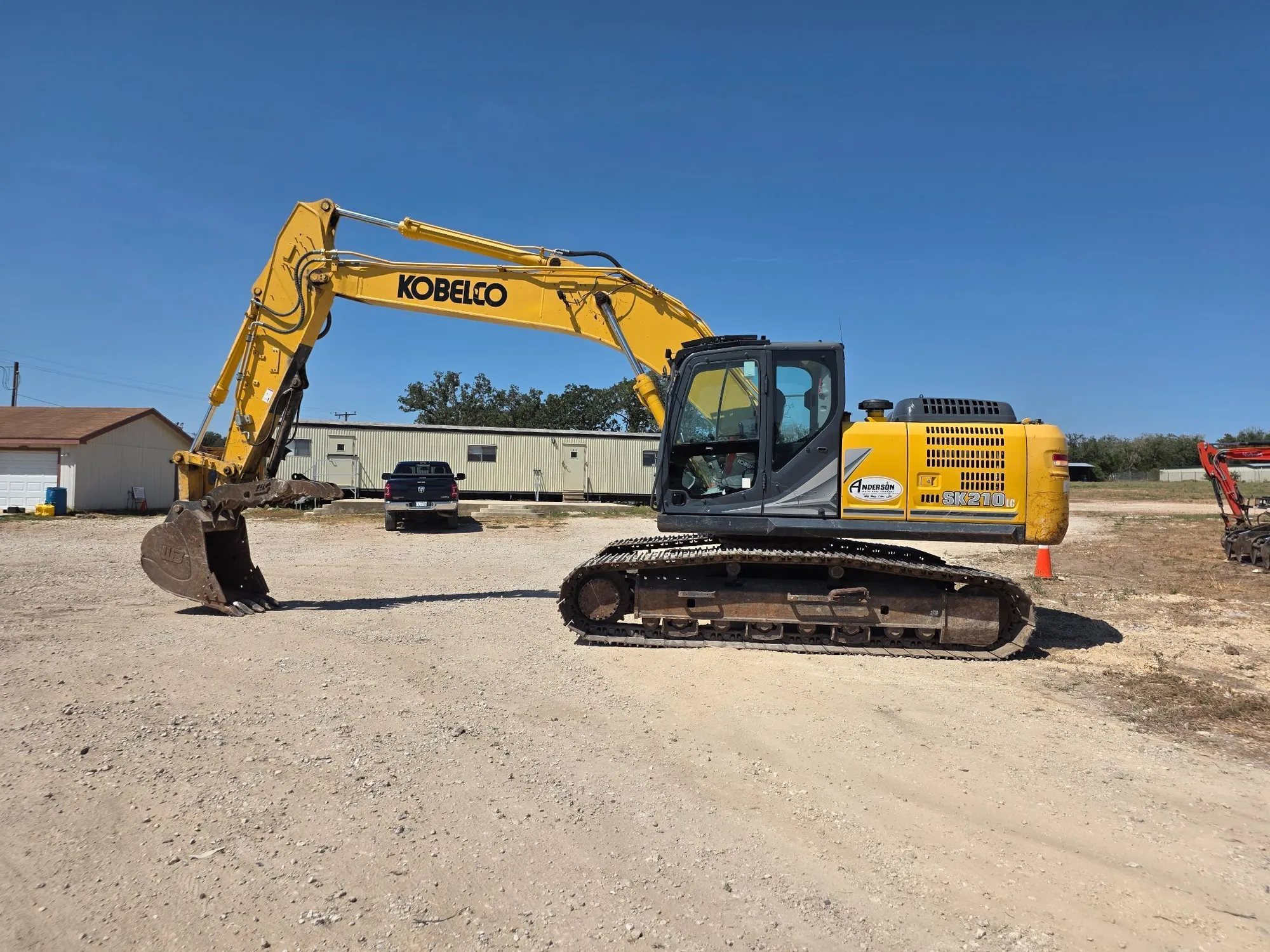

2023 Kobelco SK210LC hydraulic excavator with 1,364 hours — averaging under 460 hours per year since new.
Powered by a 160 hp Yanmar 4TN107FTT Tier 4 Final turbo diesel producing 577 lb.-ft. of torque and 35,300 lbf bucket digging force with power boost. 50,000 lb. operating weight on a standard LC long-carriage undercarriage with 31.5 in. triple-grouser steel shoes. Approximately 22 ft. maximum digging depth and 32 ft. 6 in. reach.

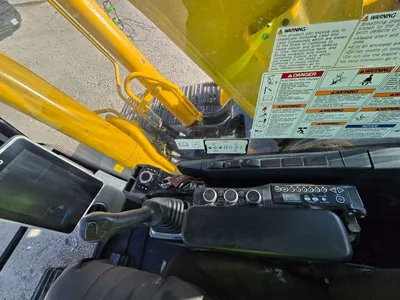

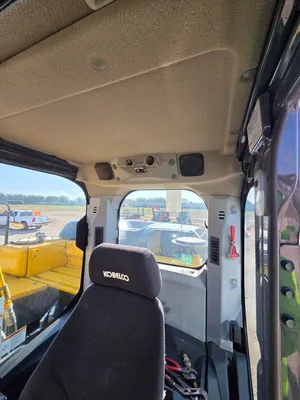

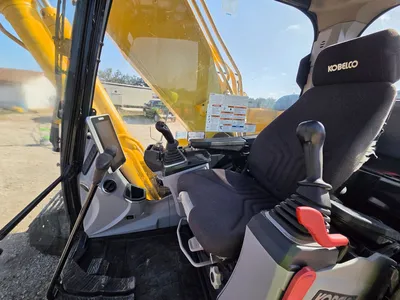

Enclosed cab with heat and air conditioning, bluetooth, cab guard, heated air-ride suspension seat, 10 in. high-resolution monitor and 3-side camera system. Eco, S and H work modes plus Heavy Lift and Power Boost.
Specs
Manufacturer / Model Yanmar 4TN107FTT
Type Four-cycle, water-cooled, direct injection, turbocharged
Cylinders 4
Displacement 4.567 L
Rated Power 160 hp
Peak Torque 577 lb.-ft. @ 1,500 rpm
Emissions EPA Tier 4 Final
Performance
Operating Weight 50,000 lb. (approx. 51,000 lb. as equipped)
Bucket Digging Force 32,190 lbf std. / 35,300 lbf power boost
Lifting Capacity 16,660 lb.
Swing Torque 52,740 lb.
Drawbar Pulling Force 51,300 lb.
Max. Digging Depth approx. 22 ft.
Max. Digging Reach approx. 32 ft. 6 in.
Work Equipment
Boom 18 ft. 6 in. standard mono boom
Arm — Standard 9 ft. 8 in. (2,940 mm)
Arm — Short (optional) 7 ft. 10 in. (2,400 mm)
Arm — Long (optional) 11 ft. 6 in. (3,500 mm)

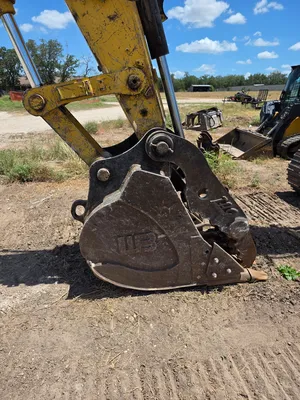

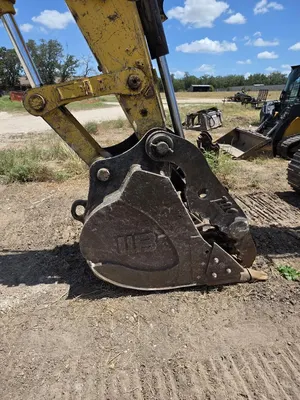

Bucket Capacity (typical) 0.93 cu. yd.
Hydraulics
Pump Type Two variable-displacement axial piston + extra gear pump + pilot gear pump
Relief Valve Setting 34.3 MPa (boom, arm, bucket)
Work Modes Eco, S-Mode, H-Mode
Power Features Heavy Lift mode, Power Boost
Service Feature In-cab hydraulic pressure release for tool changes
Undercarriage
Configuration LC long carriage
Track Shoes 31.5 in. semi-triple grouser (standard)
Operator Station
Cab Enclosed ROPS, all-weather
Camera System 3-side high-resolution camera system

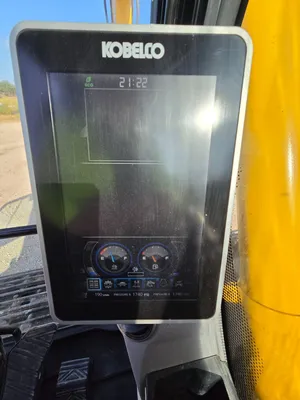

Monitor 10 in. high-resolution display with jog dial
Seat Heated air-ride suspension seat
Climate Multi-vent air conditioner
Controls Height-adjustable joysticks, pattern changer
