NEW 2007 KALTENBACH KKS-400NA

2007 KALTENBACH Circular Cold Saw Model KKS-400NA and Loader
Overview of KKS Series Circular Saws
KKS 400 NA: Fully automatic model ideal for a variety of materials, offering features like automatic cutting height adjustment and NC control for easy programming.
The KKS Series, including models KKS 400 and KKS 450, are versatile circular cold saws designed for cutting steel. These machines are known for their reliability and innovative design, reflecting Kaltenbach's extensive experience in the field.
Key Features
Upstroking Saw Design: Offers easy access to the saw table, safe blade positioning, ergonomic material handling, and a 180° swivel capability for the saw table and blade.
High Performance: Equipped with a strong drive train for high performance and low noise, and a robust trunnion bearing for precise cuts.
Efficient Cooling and Chip Removal: Options for flood coolant or atomised lubrication systems, with efficient chip removal mechanisms.
Hydraulic Clamping: Vertical and optional horizontal clamps ensure secure material positioning.
Model Variants

August 24, 2026

Greg Sweigert Price FOB Elgin, IL $14,900.00
Blackout Equipment LLC
11 Braeburn Lane
Barrington Hills, IL 60010, US
Phone:
8475710523

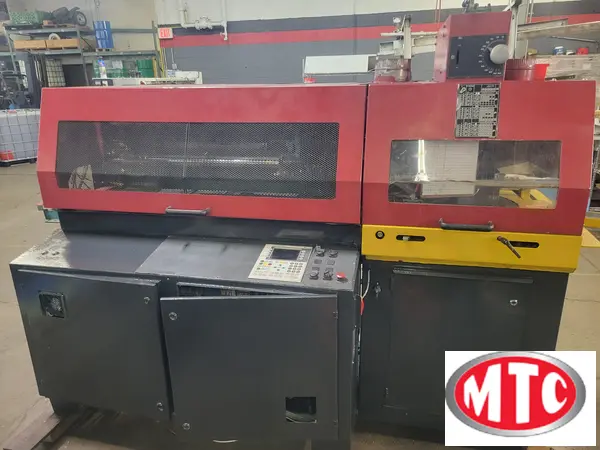

2007 KALTENBACH KKS-400NA

Stock #: 8430 | Year: 2007 | KALTENBACH KKS-400NA | Used - Good

Description:
Kaltenbach Automatic, Programmable Circular Saw for Straight and miter cutting Ferrous and non-ferrous metals, 15.74" Blade 5.1" Capacity Rd. at 90 degrees, Complete with Bundle loader

Equipped With:

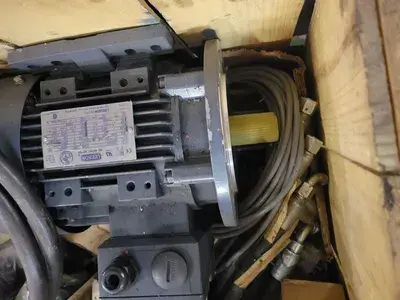

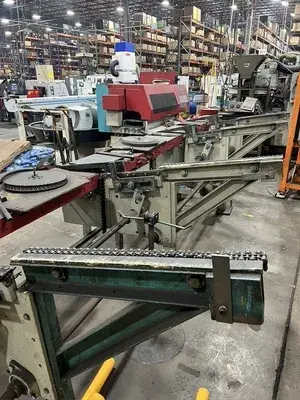

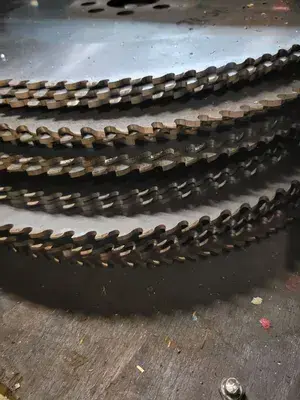

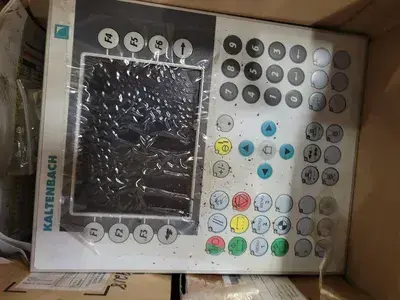

Magazine automatic bar feeder, Programmable Kaltenbach control, Vertical Clamping, Micro mist coolant, Flood coolant system, 10Plus Extra blades, Spare parts including motor and spare control.

Specifications:

Blade Dia 15.75"
Power 3.6 hp
Control CNC (Kaltenbach)
Dimensions 9'x5"x7' h, 2@ 32"x32"x24"h, 11'x2'x4'H Bundler, 12'x5'x55"h'
Weight 4,000 lbs.
Universal Automatic Circular Sawing Machine for Straight & Miter Cutting of
Ferrous & Non-Ferrous Metals - Saw New in 2007, Loader New in 2008
Saw Blade 15.75" Diameter

Working Range
Round 90 or 45 degrees 5.1"
Square 90 degrees 4.7 "
Flat 90 degrees 12" x 0.8" *
Flat 45 degrees 9.6" x 1.1" *
* Reduced in automatic mode
with infeed gripper max.7.4"

Hydraulic system 2.4 HP
Motorized length setting 0.50 HP
Coolant pump 0.13 HP
Cutting Speeds With Std Blade 50/100 SFM
Technical Data (Continued)
Saw Blade Feed Infinitely variable to a chart 0- 40 Inches/Min.
Rapid return stroke 130 IPM
Material Feed Gripper Cut length range (standard). .39" to 80"
Weight Machine without accessories, 3,750 lbs.
- Robust back fence with adjustable work-stop,
is via crank handle and allows movement 1.6"
A scale is provided.

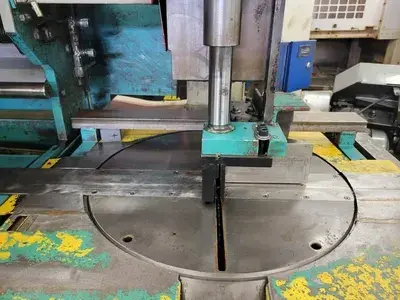

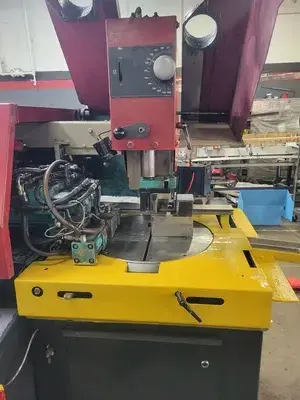

- KALTENBACH upstroke blade technology with plasma-nitrified rotating table for straight and miter
cuts. Table rotates from 0o - 180o. Positive stops, which can be overridden, are provided at 45ol90ol-
450.
- Clamping bridge with hydraulic vertical long stroke clamping cylinder 5.3". Clamping on both sides
of the cut. Presetting via crank handle.
supports material on both sides of the cut. Adjustment
maximum to the front and 2.8" maximum to the rear.
- Material feed gripper, left of machine, for cut lengths from .39" - 80.0"(40.0" per stroke). Minimum
height of sharp-edged material0.20". Front gripper is adjustable and has a stroke of 2.8". Rear
gripper has relief stroke to prevent material being damaged on return stroke. Automatic recognition
of material being in the gripper via spring-loaded touch plate and limit switch. Minimum end piece in
straight cutting is 3.1". Ball bearing mounted transport rollers measure 2.4" x 13". Maximum
material width in automatic mode is 7.5" (reduced when using quick-change clamping jaws). Feed
gripper unit can be swung up out of the way (electrically interlocked) to allow semi-automatic
operation. The safety protection hood has to be closed during cutting process.
- NC preselection for programming up to 20 programs, with up to 20 saw orders each. Bar or quantity
oriented processing. Automatic motorized length setting. Subtracting piece counter with automatic
switch-off function. For urgent jobs, data can be entered directly without having to store it.
- Hydraulic saw blade feed, infinitely variable to a chart.
- Electronic blade height setting via push button. Toothed segment with encoder. Automatic reset at
machine start.
- Raisable safety hood for machine and feed gripper unit, with electrical interlock.
- Working area illumination.
- Large electrically interlocked machine door facilitates saw blade and chip sprocket changing.

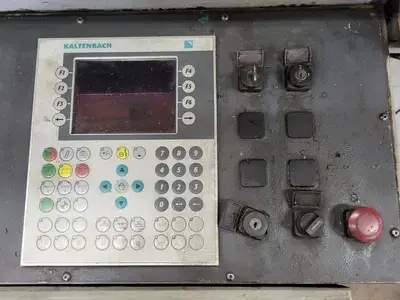

- PLC control with control cabinet. Ergonomic arrangement of control elements. Lockable switch is
provided for set-up mode.
- Hydraulic power pack (delivery 6.5 GPM).
