USED 2011 TSUGAMI BH38E
Overview

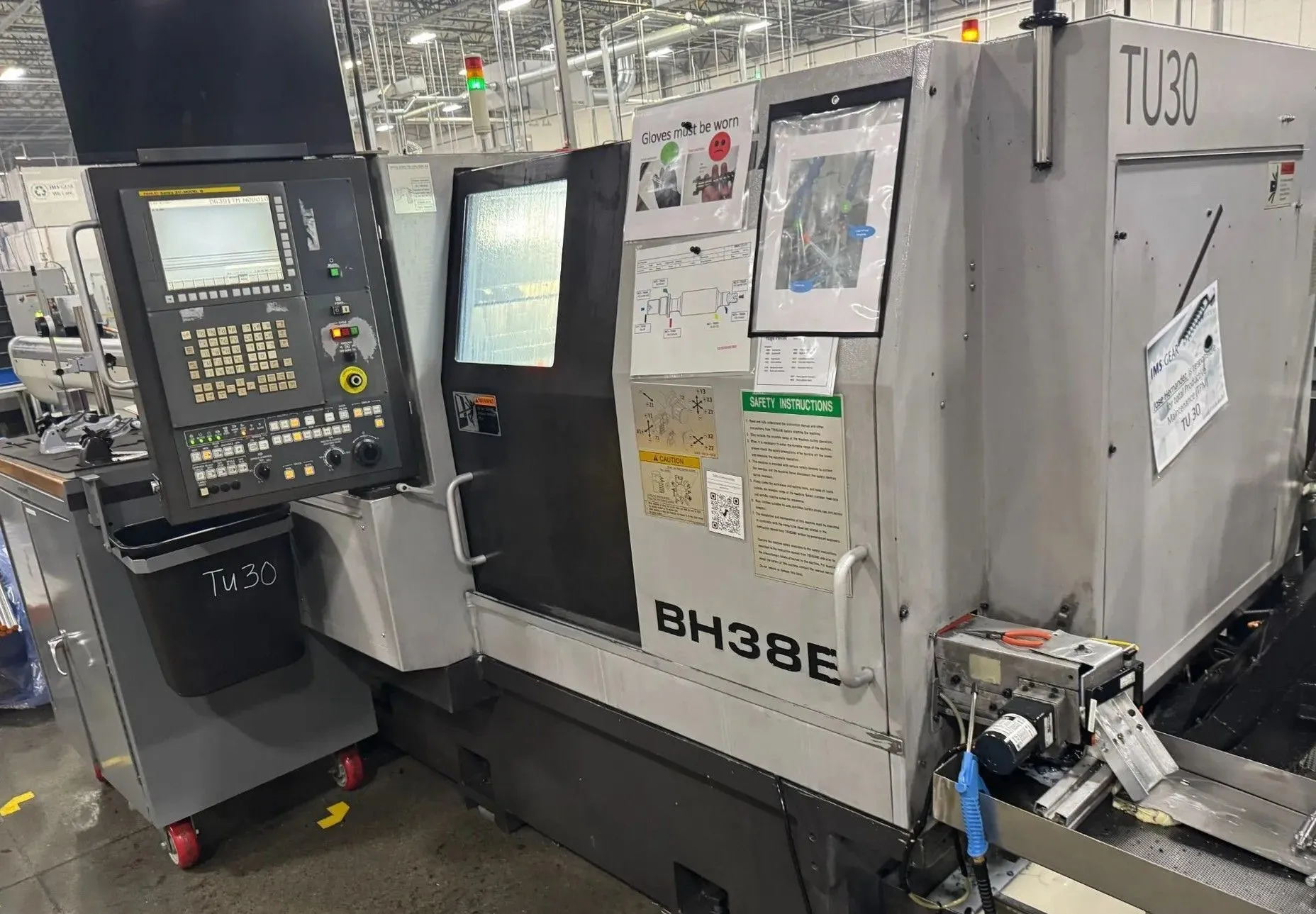

TSUGAMI BH38E CNC Swiss Lathe, New in 2011.
Iemca Boss-545-E Barfeed
Specs
General Specifications:
Max Workpiece Diameter 1.4961"
Max Workpiece Length 9.8425"
Max X-Axis Travel 15.158"
Max Y-Axis Travel 10.394"
Max Z-Axis Travel 9.8425"
RPM 6,000 RPM
Power 15 hp
Capacity 1.5"
Control CNC (Fanuc 31i-B)
Dimensions 107" x 71" x 67"
Weight 13,000lbs
Bar Capacity: 1.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Maximum Turning Diameter: 1.496"
Maximum Turning Length: 9.842"
Collet Type/Capacity: 1.625
Sub-Spindle: Standard
Sub-Spindle Motor: 7.30 HP
Maximum Tools: 12 W/4 Rotary
Tool Shank Size: Square
Rotary Tool Spindle: 8,000 RPM
Rotary Motor: 1.90 HP
Rotary Tool Power: 1.30 HP
Equipped With
Fanuc 31iB Control
Iemca Boss 545E Bar Feeder
Turret
Coolant System
Chip Conveyor
