USED 1984 NIAGARA 18-4D-SJ
Overview
Description

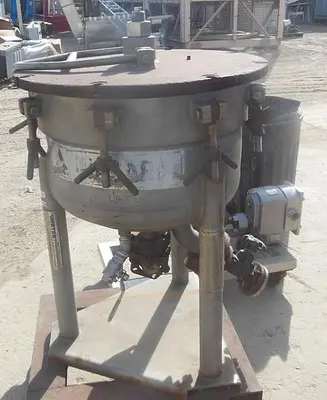

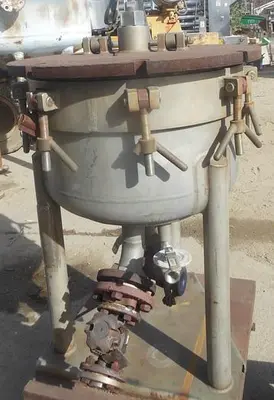

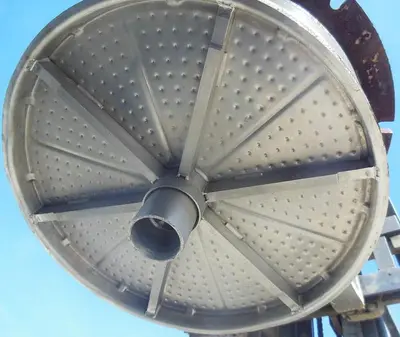

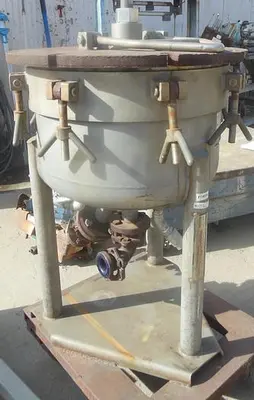

Niagara/Ametek Process Equipment Pressure Leaf Filter, Model 18-4D-SJ, Hastelloy C-276 contact parts. Unit has 7.16 square feet filter area, 0.96 cubic feet cake capacity. Vertical tank 20" diameter x 14" deep, internal rated 75 PSI at 320 degrees Fahrenheit, 304 stainless steel jacket rated 75 PSI, at 320 degrees Fahrenheit, Serial number 1505, bolt on top cover, Complete with (4) 18" diameter deep plates. 1-1/2" bottom inlet, 2" bottom outlet. Mounted on 3 stainless steel legs, on a mild steel base with casters, built in 1984.
Specifications
Stock Number: S742757
Manufacturer: Niagara
Model: 18-4D-SJ
Year: 1984
Serial Number: 1505
Square Feet: 7.16
Tank Diameter: 20"
Materials of Construction: Hastelloy C-276
Internal Pressure: 75 PSI @ 320ºF
Type: Vertical Tank / Horizontal Leaf
Previous Use: Pharmaceutical Processing
Basis: FOB
