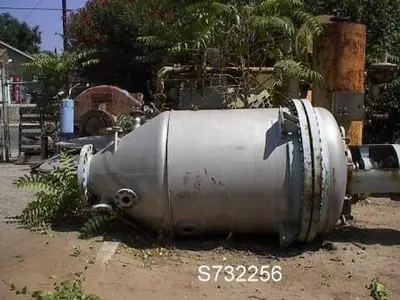

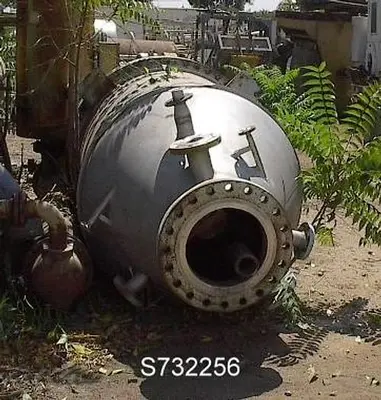

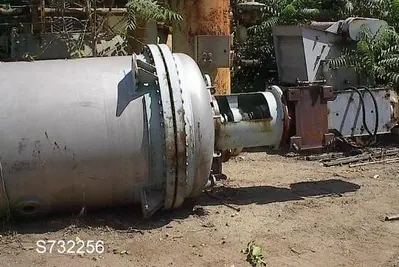

Funda pressure leaf filter, 160 square feet with 316L stainless steel wetted parts, rated for 220 PSI at 320 degrees Fahrenheit. Internal tank measures 4' diameter x 6'3" overall with conical bottom, unit has 30 HP 220/440 volt motor drive thru Falk gearbox with 6.265:1 ratio for 280 RPM. Unit complete with 20 filter disks, mesh less than .013, 1 meter diameter, Model 15M2 (15 square meters area), no legs. Unit manufactured by Chemap Engineering, Zurich. Serial number 1094-20, tank is us 660 gallons, appears unused.
Stock Number: S732256
Manufacturer: Chemap Engineering
Model: 15M2

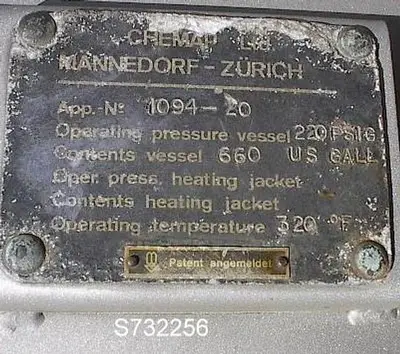

Serial Number: 1094-20
Square Feet: 160
Tank Diameter: 48"
Materials of Construction: 316L Stainless Steel
Type: Vertical Tank / Horizontal Leaf
Basis: FOB
