NEW SongMa-SMG SH-210 Gear Hobbing Machine
Overview

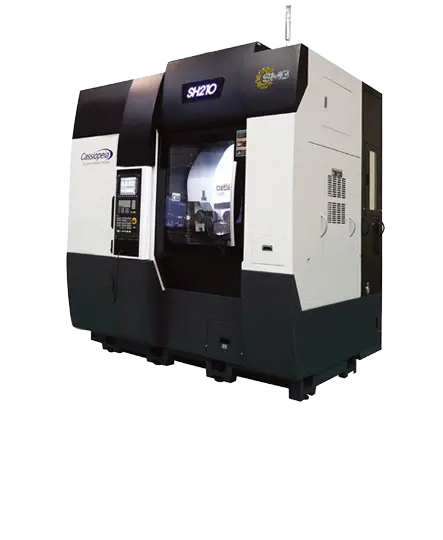

Meet the SMG SH-210 Vertical CNC Gear Hobbing Machine
Precision. Power. Flexibility. Built for demanding gear production.
The SMG SH-210 Vertical CNC Gear Hobbing Machine is designed for manufacturers looking for a highly capable, production-ready platform for precision gear cutting.
With capacity for workpieces up to Ø210 mm, a maximum module of M6 / approximately 4.23 DP, and hob speeds up to 2,000 rpm, the SH-210 delivers the performance needed for a wide range of gear-manufacturing applications.
Built around a rigid vertical machine platform and controlled by the proven Siemens SINUMERIK 840D sl, the SH-210 combines precision motion control, substantial machining capacity, and flexible working ranges in a compact production system.
Whether you are replacing aging equipment, adding production capacity, or investing in a more capable gear-manufacturing platform, the SMG SH-210 offers a strong combination of precision, performance, and long-term manufacturing value.
Specs
SMG SH210
Machine Capacity
Maximum workpiece diameter: Ø210 mm
Maximum module: M6
Maximum table speed: 300 rpm
Table diameter: Ø240 mm
Hob Head
Maximum hob diameter/length: Ø180 × 220 mm
Maximum hob speed: 2,000 rpm
Maximum Y-axis hob-shift travel: 200 mm
Hob-head swivel angle: ±45°
Hob-arbor taper: BT40
Hob-spindle output: 12/16 kW
Working Range
X-axis radial travel: 270 mm, operating range 15–285 mm
Z-axis axial travel: 370 mm, operating range 200–570 mm
Optional Z-axis travel: 600 mm, operating range 200–800 mm
Tailstock-center travel: 400 mm, operating range 265–665 mm
Rapid Traverse
X-axis radial rapid: 12 m/min
Z-axis axial rapid: 12 m/min
Y-axis tangential rapid: 5 m/min
General Specifications
Number of CNC axes: 6 — X, Y, Z, A, B, and C
CNC control: Siemens SINUMERIK 840D sl
Floor space, L × W × H: 2,741 × 2,830 × 2,970 mm
Approximate machine weight: 9,500 kg
