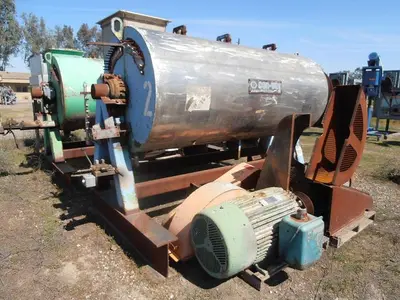

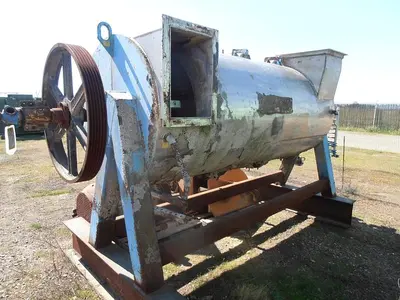

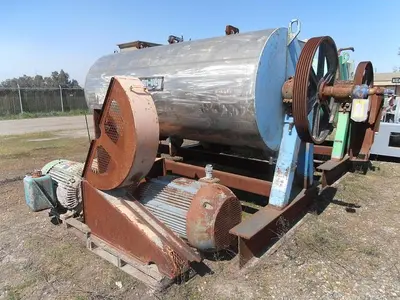

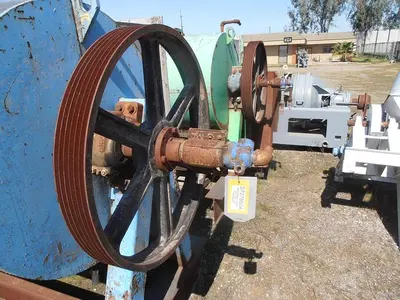

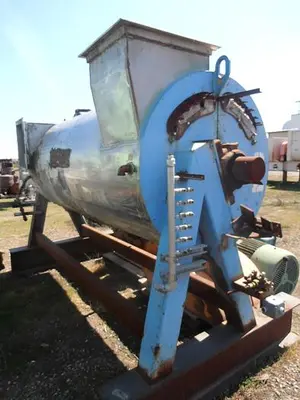

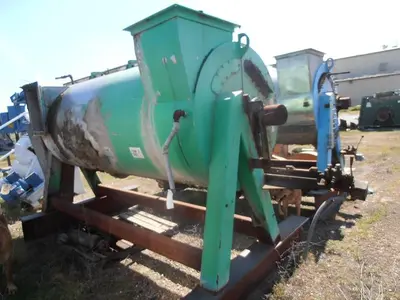

Dryer, Paddle, 100 CF, S/st, Continuous, 125 HP, Jkt, #L737891

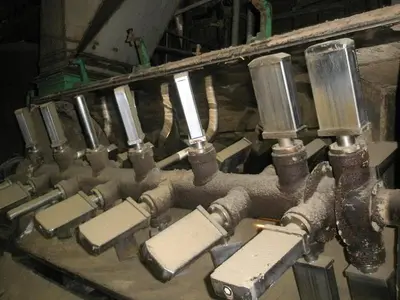

(2) Continuous paddle mixer/dryer, approximately 100 Cubic feet capacity, jacketed chamber, measures 4' diameter x 9' long, stainless steel chamber with stainless steel paddles. Includes (4) rows of paddles, (26) paddles total, 10" x 5" x 1-3/4" thick paddles are fixed to 6" diameter. Cored center shaft for heating, mild steel shaft. Driven by 125 HP, 1785 RPM, 230/460 volt, 3/60 Hz motor thru v-belt drive. Includes rotary steam joint & hydraulic ram to open/close front section of mixing chamber. Manufactured by Con-vey Systems. Previously mixing wood fiber and resin together. Paddles rotate in counter clockwise rotation. Most paddles are at 40-45 degree angle to convey product towards end, end paddles are turned to 0-10 degree to push material out back on right hand side of blender. In good working condition when taken out of service.

Stock Number: L737891
Manufacturer: Con-vey Systems
Cubic Feet: 100
Measurements: 4' Diameter x 9' Long
HP: 125
Materials of Construction: Stainless Steel
Previous Use: Mixing wood fiber and resin together
Basis: Each, FOB
