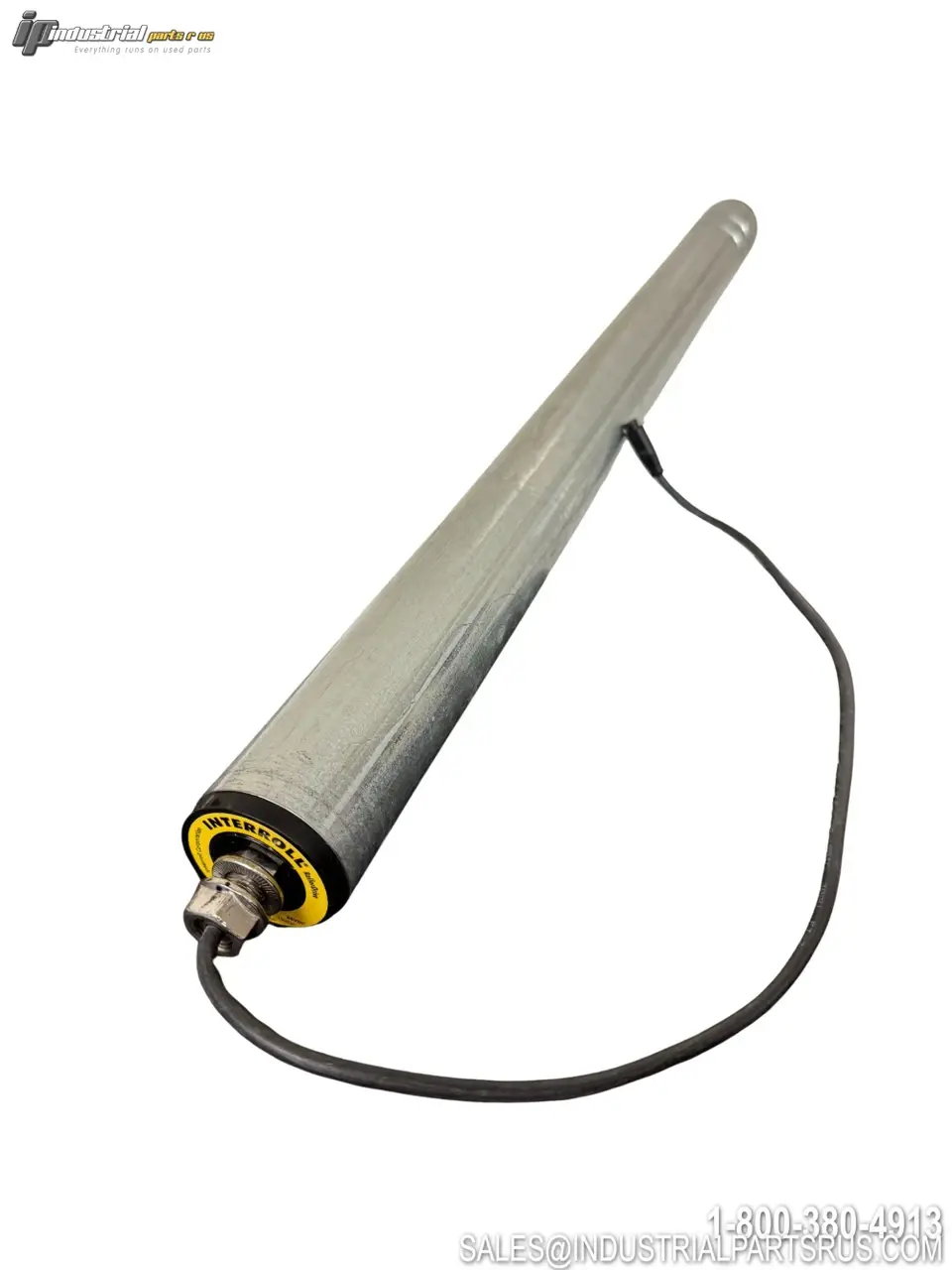

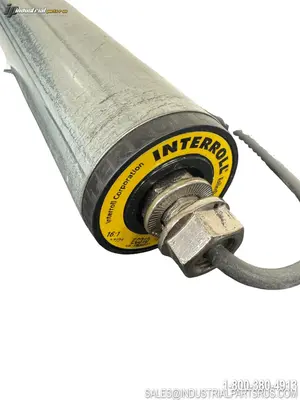

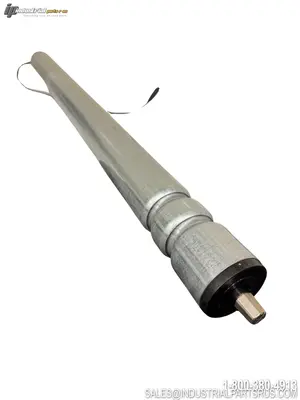

NEW INTERROLL EC310 16:1

The Interroll RollerDrive EC310 with 16:1 gear ratio is an electronically commutated (brushless) motorized drive roller (MDR) designed for use in zero-pressure accumulation conveyor systems and unit-load handling applications. The motor electronics, brushless motor, and planetary gearbox are all self-contained within the roller tube, enabling a compact conveyor design. It operates on 24 V DC and delivers a maximum conveyor speed of 0.98 m/s at the 16:1 gear stage, with an integrated electronic holding brake (Zero Motion Hold) and energy recovery during braking.
Specification
Value
Brand
Interroll
Model / Part Number
EC310 16:1
Product Series
RollerDrive EC310
Motor Type
Brushless DC (Electronically Commutated / EC)
Rated Voltage
24 V DC
Voltage Range
18 – 28 V DC
Rated Power
37 W
Gear Ratio
16:1
Max Conveyor Speed
0.98 m/s (3.2 ft/s)
Rated (Nominal) Torque
0.81 Nm
Startup Torque
1.95 Nm
Zero Motion Hold (Holding) Torque
0.64 Nm
Number of Gear Stages Available
9 (9:1, 12:1, 16:1, 20:1, 24:1, 36:1, 48:1, 64:1, 96:1)
Tube Outer Diameter
50 mm (1.97 in) — standard steel zinc-plated; 51 x 2 mm tube
Enclosure / Protection Rating
IP54 (standard) / IP66 (available)
Cable Length
450 mm (17.7 in)
Connector Type
M8 snap-in plug (Conec M8)
Motor Plug Pin 1 (Brown)
+24 V DC Power Input
Motor Plug Pin 2 (White)
Direction of Rotation Input
Motor Plug Pin 3 (Blue)
Earth / Ground
Shaft / Axis Type
11 mm hex (0.44 in); spring-loaded or female thread M8 options
Brake Type
Electronic Holding Brake (Zero Motion Hold)
Energy Recovery
Yes — regenerative braking feeds back into 24 V grid
Drive Belt Options
PolyVee, round belt, or toothed belt
Overload Protection
Yes — multiple overload protection systems (thermal + electronic)
Max Operating Incline
2.5°
Ambient Temperature Range
0 – 40 °C (reference data at 20 °C / 68 °F)
Compatible Controls
Interroll DriveControl 20 / DriveControl 54 / ZoneControl / ConveyorControl
Manufacturer
Interroll Engineering GmbH
We warranty all items for 30 days from date of purchase.
