Reactor, 66 Gallon, 316L S/st, Agit, Jkt, 50 PSI, DCI, #S742356
Description

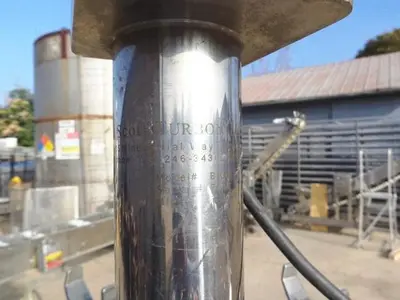

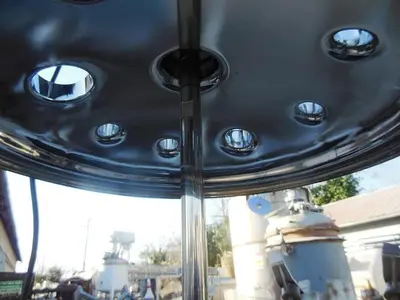

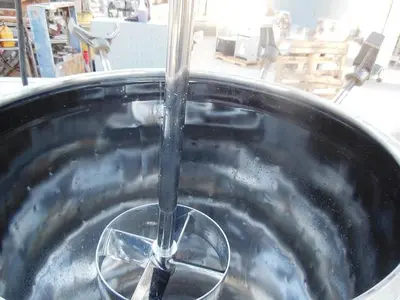

DCI 250 liter (66 gallon) stainless steel jacketed reactor with Scott Turbon agitation. Measures 24" inside diameter x 36" straight side, dished top & bottom. Vessel is polished internally, rated for 50 PSI at 300 deg. F. / -20 deg. F, jacketed for 115 PSI at 347 deg. F. hinged removable dish top, dish bottom and numerous top inlets, 1-1/2" center bottom outlet. Complete with Scott Turbon stainless steel agitation, model BIO FLOW, Serial number 7658, new in 2006, shaft measures 1-1/2" diameter x 24" long, propeller is 9" diameter x 2-3/4" high, driven by 1 HP, 240/120 volt, single phase, 50/60 Hz, input wired for 120 Volt, quick clamp-on type, variable speed control from 15 rpm to 190 rpm. Vessel mounted on 3 welded legs with footpads. Manufactured by DCI, Serial number 94PH19218. National Board Number 2698.
Specifications
Stock Number: S742356
Manufacturer: DCI
Year: 2006
Serial Number: 94PH19218
Gallons: 66
Materials of Construction: Stainless Steel
Internal Pressure: 50 PSI @ 300 deg. F.
Jacket Pressure: 115 PSI @ 347 deg. F.
HP: 1
Previous Use: Pharmaceutical Processing
National Board Number: 2698
Basis: FOB
